Smooth Plastic HDPE Geocell Gravel Pathway Stabilizer Grid For Road Construction

Smooth Plastic HDPE Geocell Gravel Pathway Stabilizer Grid For Road Construction

HDPE Geocell Stabilizer

Smooth HDPE Geocell

HDPE gravel pathway stabilizer grid

Place of Origin:

China

Brand Name:

OEM

Certification:

ISO certificate

Model Number:

Plastic HDPE Geocell

Contact Us

Request A Quote
Product Details
Corrosion Resistance:
Excellent Corrosion Resistance
Specification:
High-density Polyethylene
Thickness Of The Sheet (mm):
1.25; 1.50; 1.75
Height:
50/75/100/150/200mm
Surface:
Textured Smooth
Geocell Peel Strength:
140n/10cm
Sample:
Available
Hole:
With Hole / Without Hole
Product Description

HDPE Plastic Geocell Manufacturer Gravel Grid For Road Construction

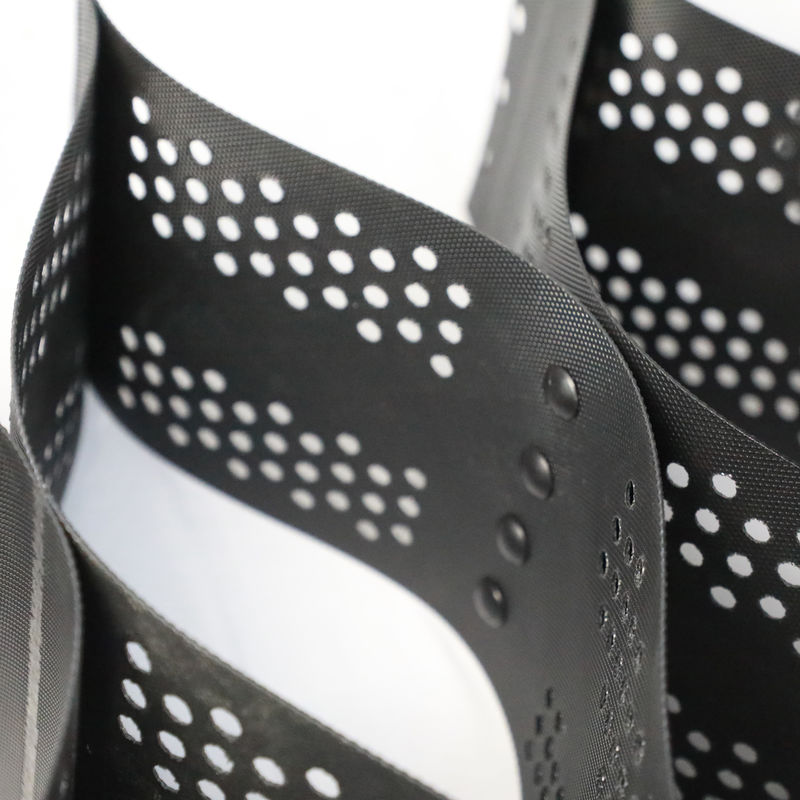

Plastic HDPE Geocell Description:

Geocells are three dimensional honeycombs of polymeric strips filled with granular material (sand, recycled asphalt, local soils). This cellular confinement system prevents movement of infill and distributes loads over a wide area - which increases the strength and stiffness of a pavement layer. This makes geocells an ideal solution for all types of soil stabilization and ground reinforcement



Main Features

1. It is flexible in expansion and contraction, transportable and collapsible, and can be tensioned into a mesh during construction. It is filled with loose materials such as soil, gravel, and concrete, forming a structure with strong lateral constraints and high stiffness.
2. Light material, wear-resistant, stable chemical properties, light oxygen aging resistance, acid and alkali resistance, suitable for different soil and desert soil conditions.
3. High lateral restraint and anti slip, anti deformation, effectively enhancing the bearing capacity of the subgrade and dispersing load.
4. Changing the geometric dimensions such as geocell height and welding distance can meet different engineering needs.
5. Flexible expansion and small transportation volume; Convenient connection and fast construction speed.





Technical Parameters:
Material Properties Unit         Test Method
Cell Depth mm 75 100 150 200
Polymer Density g/cm3 0.935-0.965 ASTM D 1505
Environmental Stress Crack Resistance Hours >400 ASTM D 5397
Environmental Stress Crack Resistance Hours 6000 ASTM D 1693
Carbon Black Content % 1.5% - 2.0% ASTM D 1603
Nominal Sheet Thickness Before Texturing mm 1.27 -5%,+10% ASTM D 5199
Nominal Sheet Thickness After Texturing mm 1.52-5%,+10% ASTM D 5199
Strip Puncture Resistance N 450 ASTM D 4833
Seam Peel Strength N 1065 1420 2130 2840 EN ISO13426-1B
Seam Efficiency % 100 GRI-GS13
Nominal Expanded Cell Size (width x length) mm 320x287,475x508 etc
Nominal Expanded Panel Size (width x length) m 2.56x8.35, 4.5x5.0, 6.5x4.5, 6.1x2.44


Applications:

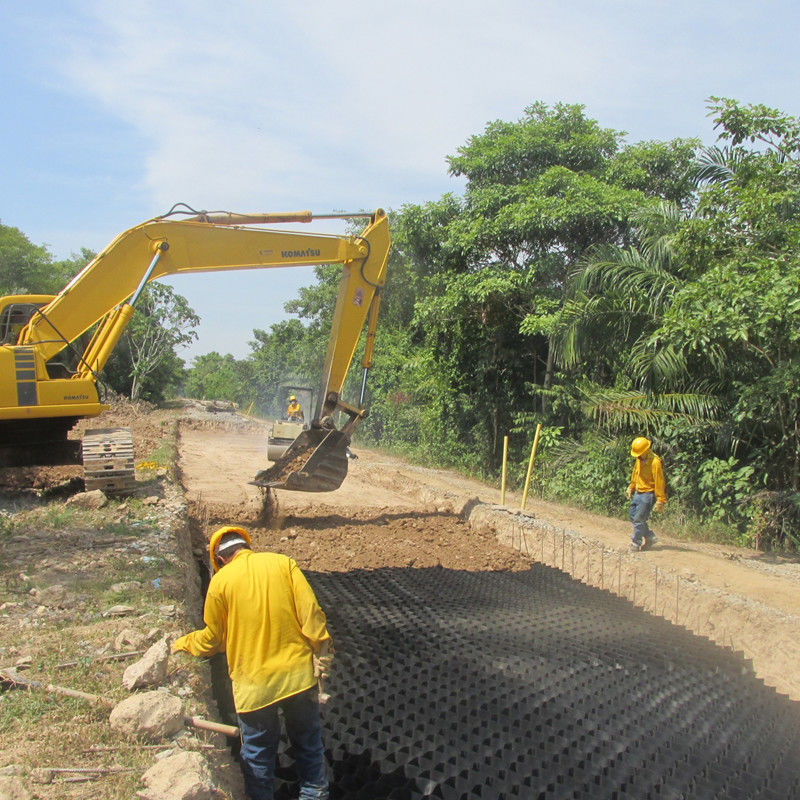

Plastic geocell grid gravel for road
1. Used to stabilize highway and railway subgrade.
2. It is used for embankment and shallow river regulation that bear the load of gravity.
3. A composite retaining wall used to prevent landslides and gravity loading.
4. When encountering soft ground, the use of geocells can greatly reduce the construction labor intensity, reduce the thickness of the roadbed, and achieve fast construction speed and good performance, greatly reducing project costs.



Smooth Plastic HDPE Geocell Gravel Pathway Stabilizer Grid For Road Construction 0
