High Strength Polypropylene Geotube Dewatering Bags For Wastewater Sludge 100g/Sqm

High Strength Polypropylene Geotube Dewatering Bags For Wastewater Sludge 100g/Sqm

100g/Sqm Geotube Dewatering Bags

Wastewater Geotube Dewatering Bags

Polypropylene wastewater sludge dewatering bags

Place of Origin:

China

Brand Name:

OEM

Certification:

ISO,SGS

Model Number:

geotube

Contact Us

Request A Quote
Product Details
Geotextile Type:
Woven Geotextile
Product Name:
Geotube Geobag
Product Material:
PP(polypropylene)
Sample:
Free
Product Application:
Sludge Dewateering
Product SIze:
3x4ft, 3.5x7ft, 6x6ft, 7.5x10ft
Type:
Geotextile, Geotextile Liner
Weight:
100-1000g/sqm
Certificate:
CE/ISO9001/ISO14001
Circumference:
5-30m
Product Description

High Strength PP Woven Geotube



Product Description



Geotube is one of the most effective components that are most usually used in protective structure of waterproof erosion. Soft mattress is covered to the places where water flows to reduce the impact energy of water flow and protect soil particles from being flown away by water flow by means of its filtration function, thus, ensuring the stability of soil mass.

The list of materials that have been dewatered by geotextile tubes includes, but is not limited to: municipal water treatment and wastewater sludge, contaminated dredged material, agricultural animal waste and fine-grained, inorganic industrial sludge and shale gas fracking. For shoreline protection applications, the geotextile tube is filled with structural material such as beach or river sand.

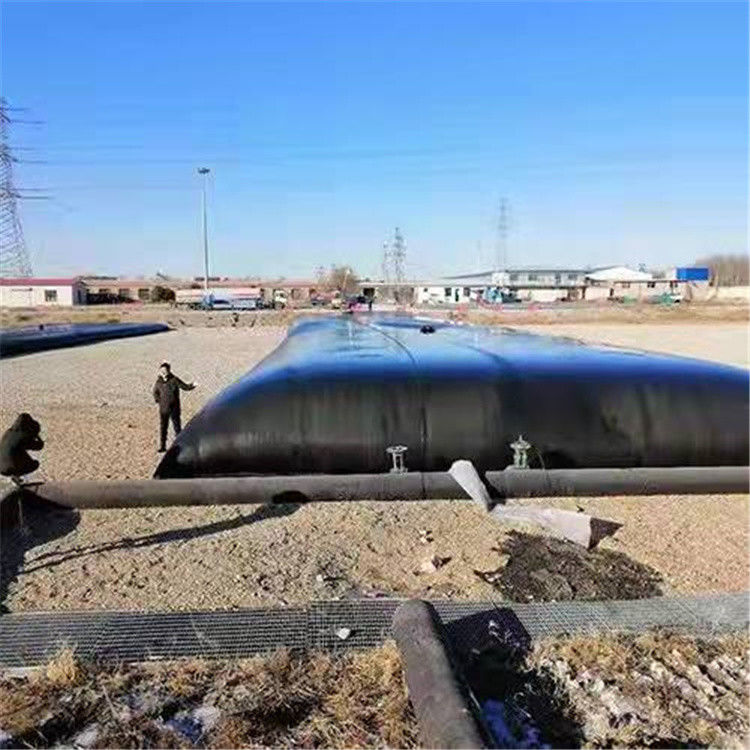

High Strength Polypropylene Geotube Dewatering Bags For Wastewater Sludge 100g/Sqm 0





Item Unit Testing Standard Technical Parameters
GT70X95B GT70X95
Breaking strength MD KN/m ISO 10319-2015 85 85
CD KN/m ISO 10319-2015 105 115
Elongation of break MD % ISO 10319-2015 13 13
CD % ISO 10319-2015 8 8
Sewing Tensile Strength KN/m ISO 10321-2008 70 90
Static Bursting Strength(CBR) KN GB/T 14800-2010 8 9
Equivalent hole size(O90) mm GB/T 14799-2005 0.5 0.45
Permeability(Q50) L/m2/s GB/T 15789-2005 50 35
UV-resistance (500 Hours strength retention) % ASTMD4355-2014 90 90




Advantage of our products:

1. Professional manufacture.
2. Implement strict quality test & control procedure.
3. High quality & Best price.
4. Products could be customerized.
5. Good after-sale service.
6. Fast delivery time.

Applications:

1.Solid dam engineering
2.Protective structure of waterproof erosion
3.Protect soft mattress from being floated up or moves by water flow
4.Soft soil improvement
5.Slope protection

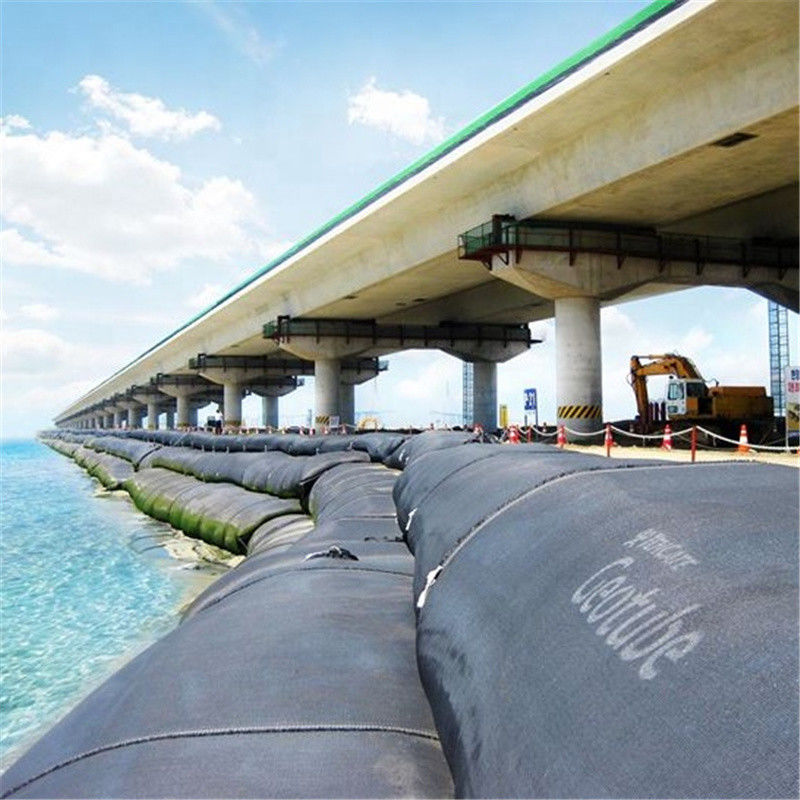

High Strength Polypropylene Geotube Dewatering Bags For Wastewater Sludge 100g/Sqm 1

FAQ
What is geosynthetics ?

Geosynthetics form a perfect erosion control fabric used extremely widely in civil engineering to stabilize and reinforce slopes and soil under or next to roads, railways, dams, water reservoirs etc.. They can be easily applied which minimizes the time of construction, as well as they limit the resources and materials necessary.

What kinds of geosynthetics we have ?

Non-woven geotextile, geogrids, geocells, GCL, Geomembranes, Geonets, Geocomposites etc .

What is the geosynthetics used for ?

Hydraulic
Lagooning and Water Treatment, Ornamental Ponds, Golf Courses
Aquaculture and Desalination,Water Lagoons,Tanks, Reservoirs, Liquid Waste,Floating Cover Solutions, Drainage and Filtration

Environment
Tailing ponds, Landfills,Landfill Capping,Protection against corrosion,Vertical Barriers

Civil Works
Erosion Control,Secondary Containment,Tunnels,Linear and Surface Works,Consolidation of Margins,Soil Reinforcement,Soil Separation.
Building - Parkings,Roofing,Soundproofing
