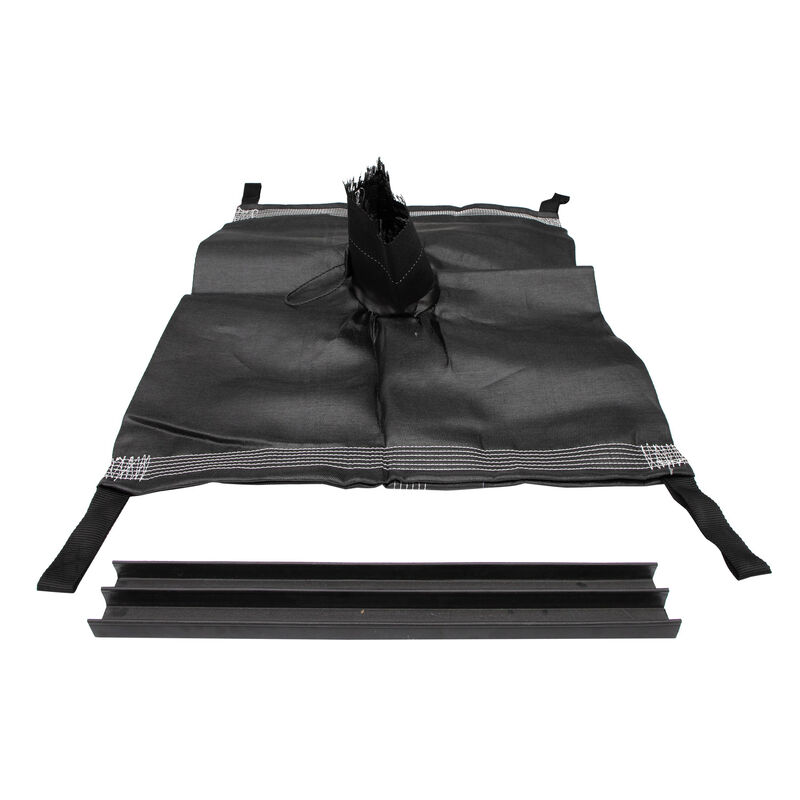

540g pp Woven Geotextile Bags Wastewater Sludge Dewatering Geotube Bag
Product Description

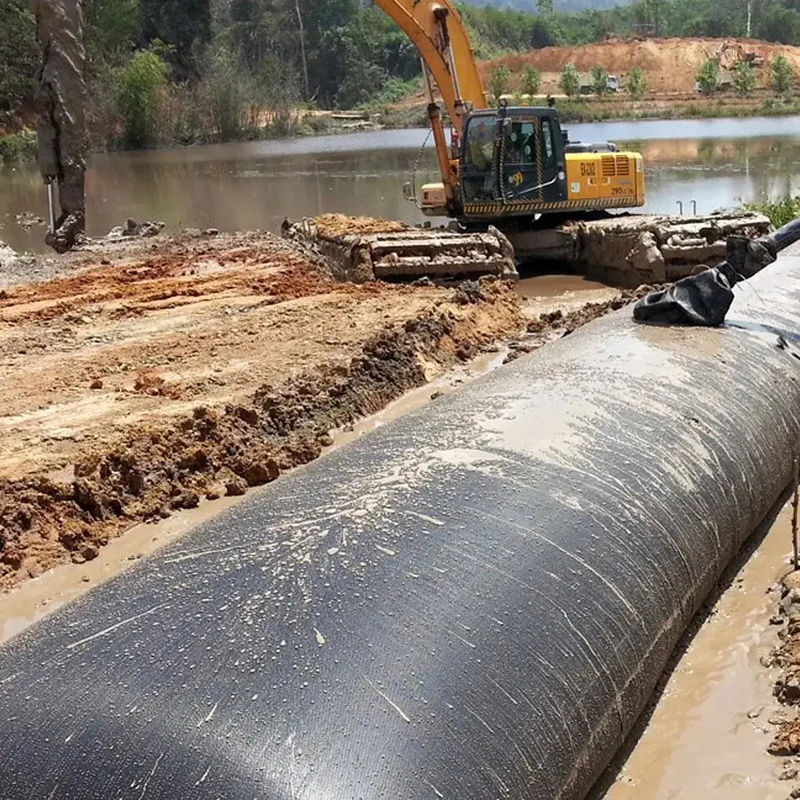

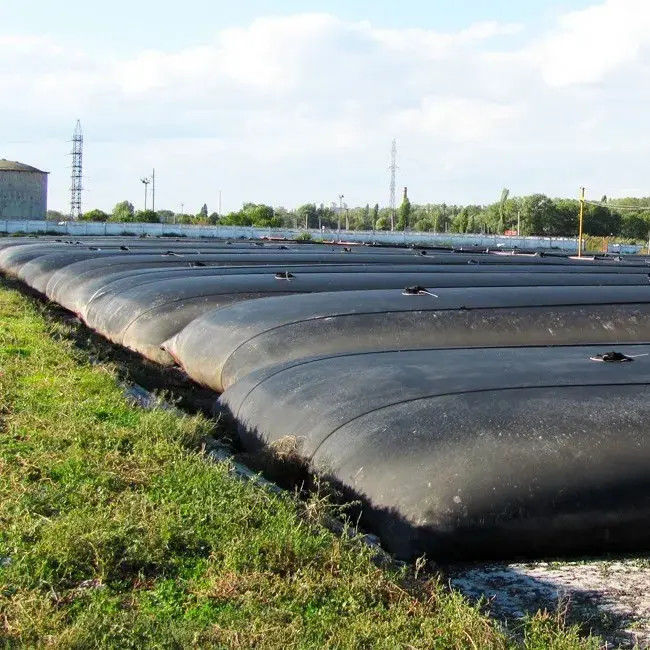

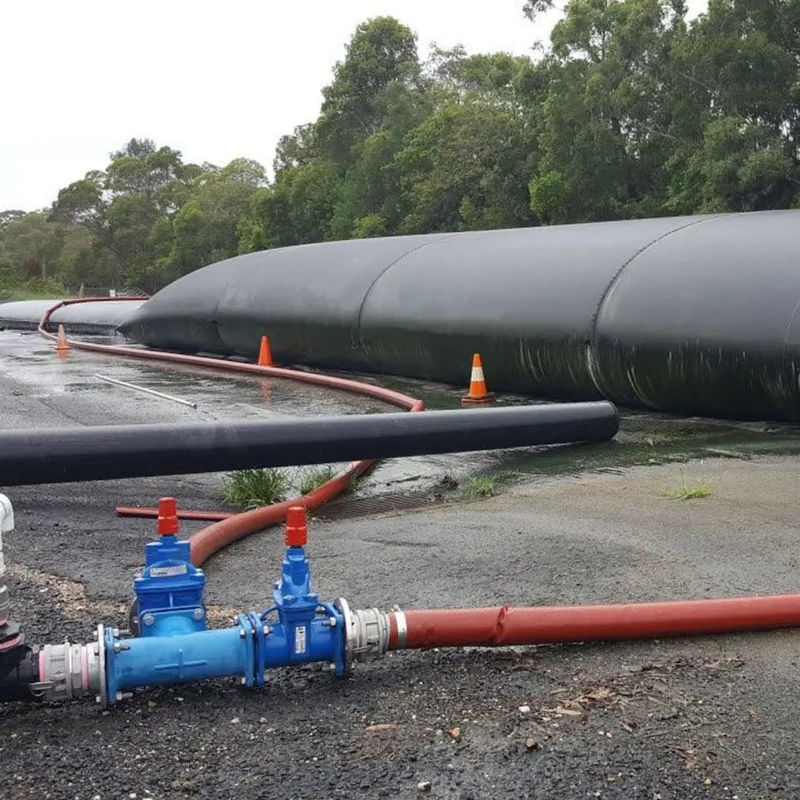

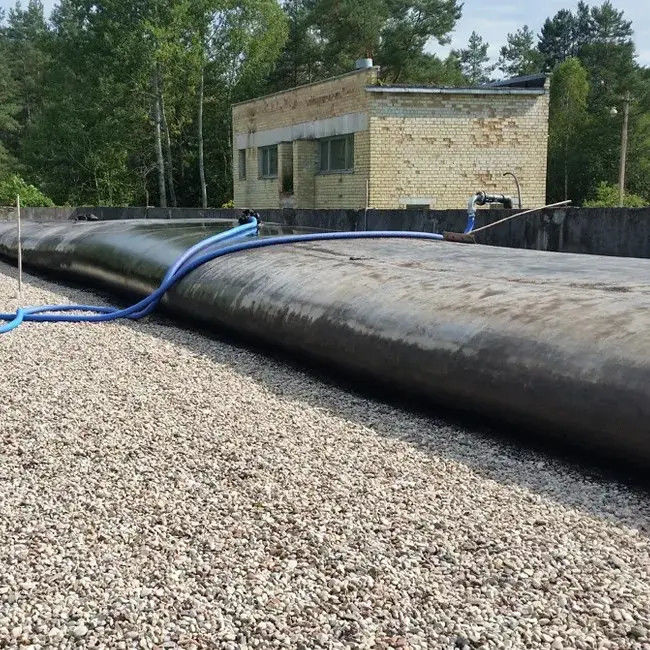

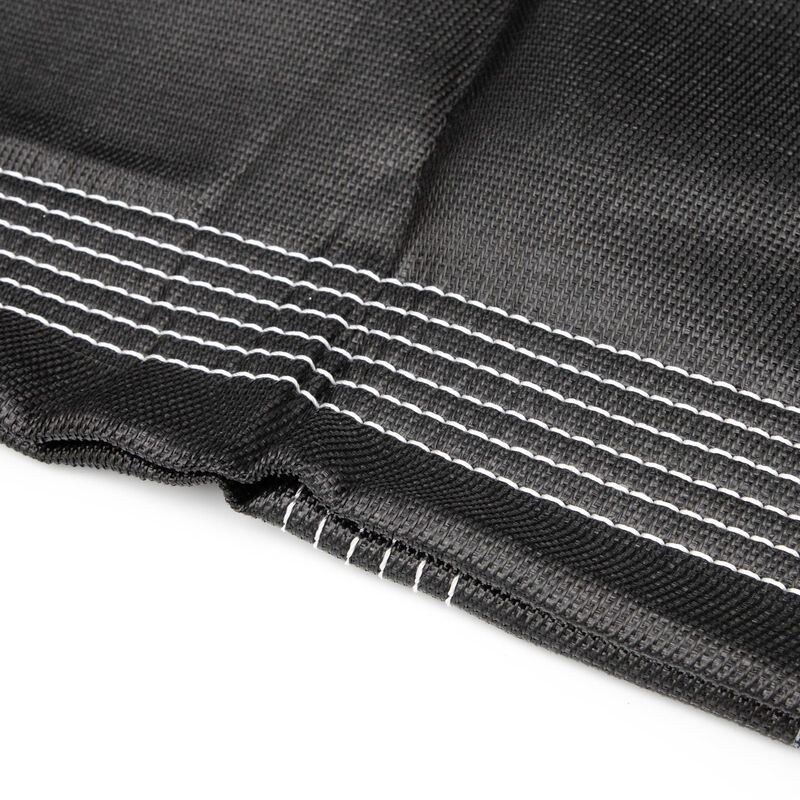

The Geotextile Tube Bag dehydration technology is an effective technology and a solution that has been proven safe for dehydratio by many research centers around the world. It is made of high-performance, special polypropylene monofilament, flat yarn or split film yarn for cloth processing and special sewing.
| Item | Unit | Testing Standard | Technical Parameters | ||
| GT70X95B | GT70X95 | ||||
| Breaking strength | MD | KN/m | ISO 10319-2015 | 85 | 85 |
| CD | KN/m | ISO 10319-2015 | 105 | 115 | |
| Elongation of break | MD | % | ISO 10319-2015 | 13 | 13 |
| CD | % | ISO 10319-2015 | 8 | 8 | |
| Sewing Tensile Strength | KN/m | ISO 10321-2008 | 70 | 90 | |
| Static Bursting Strength(CBR) | KN | GB/T 14800-2010 | 8 | 9 | |
| Equivalent hole size(O90) | mm | GB/T 14799-2005 | 0.5 | 0.45 | |
| Permeability(Q50) | L/m2/s | GB/T 15789-2005 | 50 | 35 | |
| UV-resistance (500 Hours strength retention) | % | ASTMD4355-2014 | 90 | 90 | |
Advantage of our products:
1. Professional manufacture.
2. Implement strict quality test & control procedure.
3. High quality & Best price.
4. Products could be customerized.
5. Good after-sale service.
6. Fast delivery time.
Applications:
1.Solid dam engineering
2.Protective structure of waterproof erosion
3.Protect soft mattress from being floated up or moves by water flow
4.Soft soil improvement
5.Slope protection
FAQ
What is geosynthetics ?
Geosynthetics form a perfect erosion control fabric used extremely widely in civil engineering to stabilize and reinforce slopes and soil under or next to roads, railways, dams, water reservoirs etc.. They can be easily applied which minimizes the time of construction, as well as they limit the resources and materials necessary.
What kinds of geosynthetics we have ?
Non-woven geotextile, geogrids, geocells, GCL, Geomembranes, Geonets, Geocomposites etc .
What is the geosynthetics used for ?
Hydraulic
Lagooning and Water Treatment, Ornamental Ponds, Golf Courses
Aquaculture and Desalination,Water Lagoons,Tanks, Reservoirs, Liquid Waste,Floating Cover Solutions, Drainage and Filtration
Environment
Tailing ponds, Leach ,Landfills,Landfill Capping,Protection against corrosion,Vertical Barriers
Civil Works
Erosion Control,Secondary Containment,Tunnels,Linear and Surface Works,Consolidation of Margins,Soil Reinforcement,Soil Separation.
Building - Parkings,Roofing,Soundproofing
