High Tensile Geotextile Geotube Dewatering Tear Resistant

High Tensile Geotextile Geotube Dewatering Tear Resistant

High Tensile Geotube Dewatering

Geotextile Geotube Dewatering

Tear Resistant Geotube Dewatering

Place of Origin:

China

Brand Name:

OEM

Certification:

ISO certificate

Model Number:

geotube

Contact Us

Request A Quote
Product Details
Model NO.:
Geotube
Feature:
Corrosion Resistant, Oxidation Resistance, Wear-resistant
Usage:
Insulation, Waterproof, Water Filter
Transport Package:
Woven Geotextile
Breaking Strength In CD:
105kn/M
Function:
Filtration ,Separation,Drainage, Reinforcement
Breaking Strength In MD:
74kn/M
Product Description

Tear-Resistant Geotube Dewatering High Tensile Geotextile Geotube Dewatering

Geotube is one of the most effective components that are most usually used in protective structure of waterproof erosion. Soft mattress is covered to the places where water flows to reduce the impact energy of water flow and protect soil particles from being flown away by water flow by means of its filtration function, thus, ensuring the stability of soil mass.

Iterm Unit Standard Index
HT500 HT750 HT1000
Tensile Strength Radial Direction KN/M ISO 10319-2015 85 130 220
Zonal Direction KN/M ISO 10319-2015 115 120 200
Elongation at Break Radial Direction % ISO 10319-2015 13 12 13
Zonal Direction % ISO 10319-2015 8 8 8
Joint Tensile Strength KN/M ISO 10319-2015 90 100 170
CBR KN GB/T14800-2010 9 15 20
Dynamic Perforation MM GB/T17630-1998 8 10 8
Effective Aperture(O90) MM GB/T14799-2005 0.45 0.4/0.28 0.45
Permeability(Q50) L/m2/s GB/T15789-2005 35 14 18
UV Resistance % ASTM D4355-2014 90 85 85



Details Images
View File
Convenient and quick
Diameter and length can be adjusted according to the need, high plasticity, and can be stacked, transportation is convenient.
Low noise
Fully enclosed construction, little noise, is not easy to cause secondary pollution.

Wide application
The size of the wastewater treatment and sludge dewatering engineering all can use.
Capacity reduction effect is good
Within one month of the sludge volume can reduce more than 90%, basically for subsequent removal and handling easier.
High efficiency
Can completely satisfy the amount of waste water and sludge processing, processing according to the flow of the pump to increase the number of deductions just leave bags.
Product Application

Application:

1. Both rivers.
2. mine regreen.
3. Treatment of landslides, gutters, soil erosion, irrigation systems.
4. Constructed wetland repair.
5. Green roof.

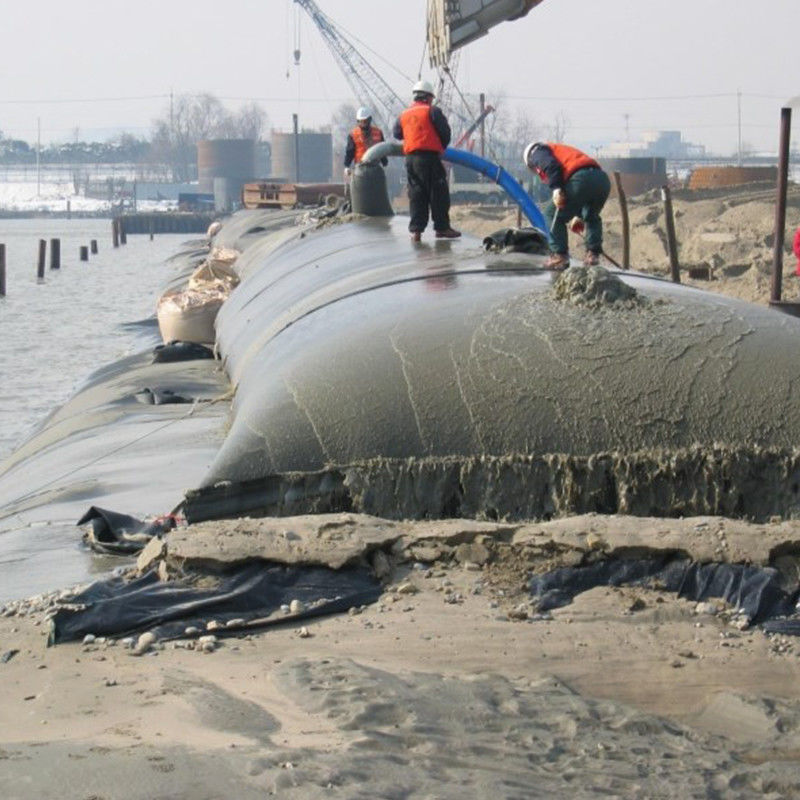

PS: The first step is to fill, high strength and permeable geotextile bag body needed to make into actual, then filling slurry into the bag.

PS: The second step is drainage, because the geotextile that makes up the bag has tiny holes that trap it in the mud, solids can also discharge water from the mud, which can effectively reduce the volume of inclusion in the bag body,The bag body can be repeatedly filled until the allowable height of the bag material is reached, and the discharged water can be reused.
View FilePS: The third step is consolidation. After repeated filling and drainage, the fine particles left in the bag body will gradually consolidate due to drying.
