Dewatering Container Geotube Bags For Wastewater Sludge Dewatering

Dewatering Container Geotube Bags For Wastewater Sludge Dewatering

dewatering container geotube bags

geotube bags pp

geosynthetic tubes Polypropylene

Place of Origin:

China

Brand Name:

OEM

Certification:

ISO certificate

Model Number:

geotube

Contact Us

Request A Quote
Product Details
Application:
Reinforcement, Filtration, Etc
Usage:
Insulation, Waterproof, Water Filter
Project Solution Capability::
Cross Categories Consolidation
Function:
Filtration ,Separation,Drainage, Reinforcement
Type::
Geotube, Woven Knitted
Certificate:
ISO9001:2008
Product Description

Geotextile tubes are made by PP woven fabric in a variety of sizes and lengths. They are in extra wide sizes with greater load distribution to resist punching and protect the embankment and foundation. Geotextile tubes are not only used to form shoreline structure including form temporary breakwaters, headlands, revetment on sand beach, also used in environment protection, like fill in the pollution silt, they let the water come out and retain the solid articles





Geotubes have different levels of strength and permeability, high UV resistance and durability such as sea water and microbial erosion.

It can be applied to many water conservancy and ocean engineering, such as: bank protection, breakwater, wave breakwater, river surge regulation, tubular containment structure, etc.

At the same time, it is used in the dehydration treatment of industrial waste, sludge treatment, coal mine and agricultural waste.

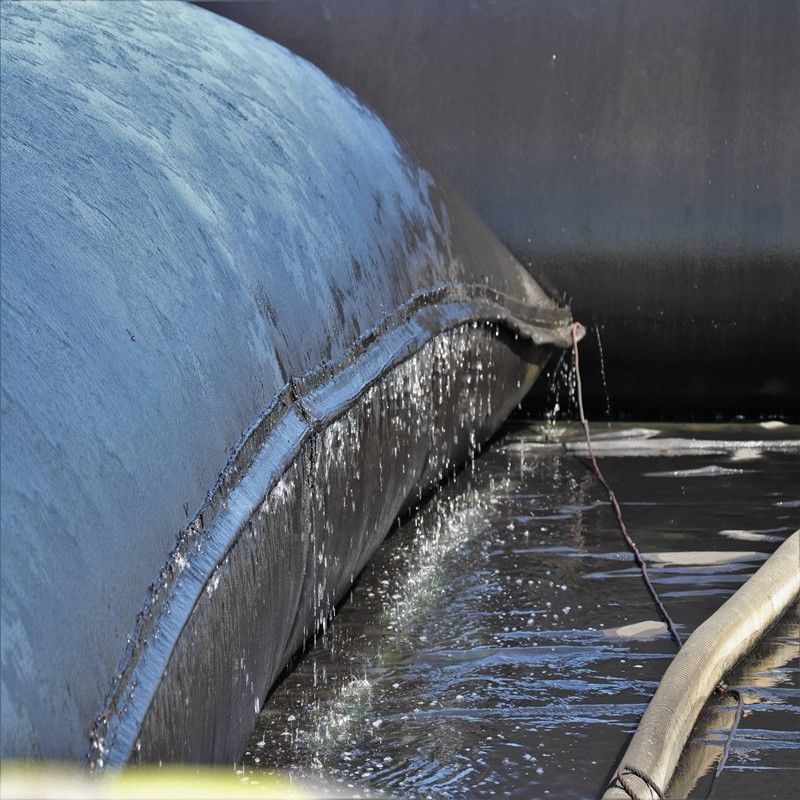

Dewatering Container Geotube Bags For Wastewater Sludge Dewatering 0
Product Technical Parameter
Geotextile tube for Coastal protection & Dewatering
Item

Test Standard
Unit
Technical Data
Material



Polypropylene With Black or Sand Color
Spec



HT50
HT70
HT90
HT105
HT120
HT200
Tensile Strength
MD
ASTM D4595
KN/M
50
70
90
105
120
200
CD
ASTM D4595
KN/M
50
95
120
105
120
200
Elongation
MD/CD
ASTM D4595
%
10,11,12,13,15
Opening Size O90
mm
0.05-0.90 or Customized
Length
m
20,30,50,100m
Circumference
m
5-20m

Feature of Geotube

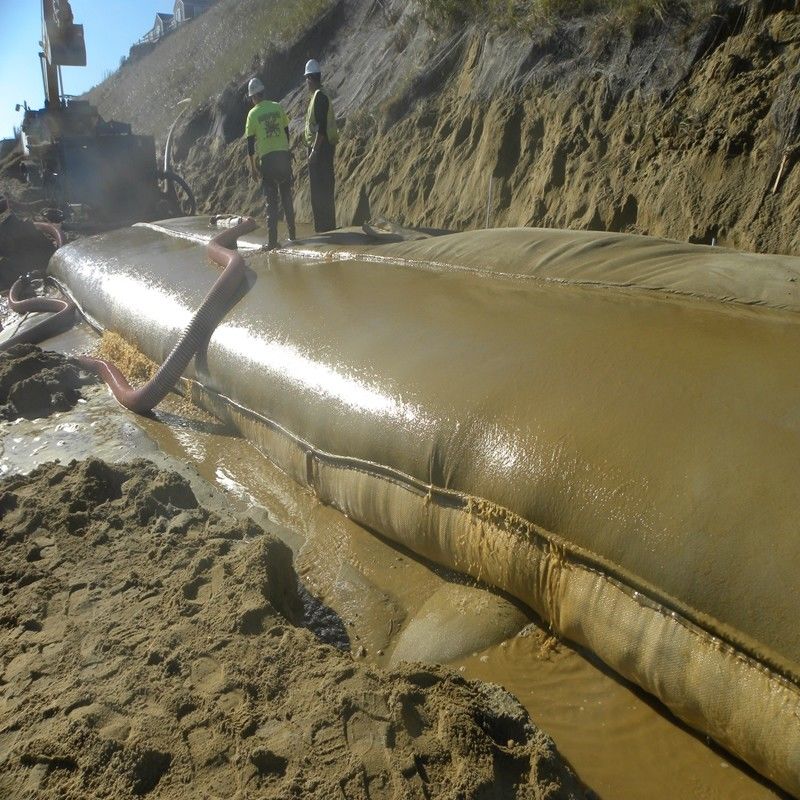

Dewatering Container Geotube Bags For Wastewater Sludge Dewatering 1
Dewatering Container Geotube Bags For Wastewater Sludge Dewatering 2


1. High strength, low deformation
2. Durability: steady property, not easy to resolved, air slaked and can keep the original property long term
3. Anti-erosion: anti-acid, anti-alkali, resists insects and mould
4. Permeability: could control the sieve size to retain certain permeability
5. Effective high volume containment
6. Efficient dewatering and volume reduction
7. Cost effective
8. No special equipment required

Application

Sludge Treatment
The volume of sludge can be reduced by more than 90%, and it contains a higher proportion of solid content, making it easier to remove and process.

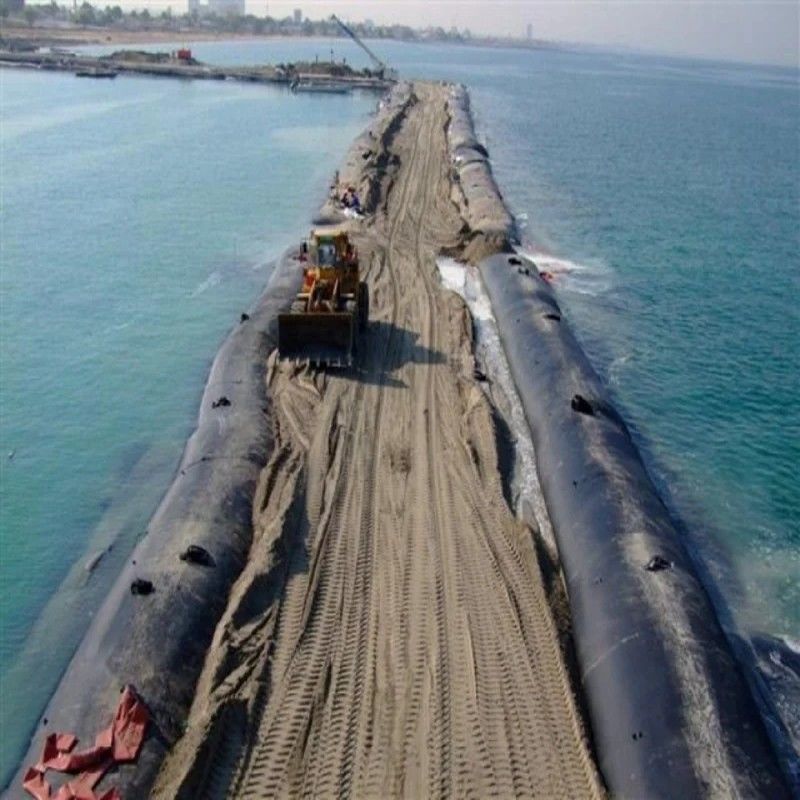

Revetment, Breakwater
The embankment core filling geotechnical pipe bag breakwater is a breakwater made of new materials. It forms a kind of breakwater by filling the geotechnical pipe bag with sea sand. Not only saves the construction cost of the breakwater, but also makes better use of environmental resources, and can well meet the construction and functional requiremenrs of the breakwater.


Ecological Restoration
Geotube bag dewatering technology can dehydrate the bottom mud gathered in river, bays seaports, wharves, ports and docks to project the environment.


Light Industry, Agriculture and Aquaculture
Geotube bag dehydration technology reduces the water content in the filtration process, simplifies the water recycling process, and intercepts more than 90% of the suspended soild particles. It is an ideal choice

Dewatering Container Geotube Bags For Wastewater Sludge Dewatering 3
Functions of Geotube
Filtration & Separation & Erosion protection & Drainage & Dehydration

Professional geosynthetics manufacturer
Anhui Zhonglu Engineer Materials Co., Ltd
