PP Geotube Marine Construction Shoreline Restored with Woven Geotextile Sludge Dewatering Geotube Geomaterial

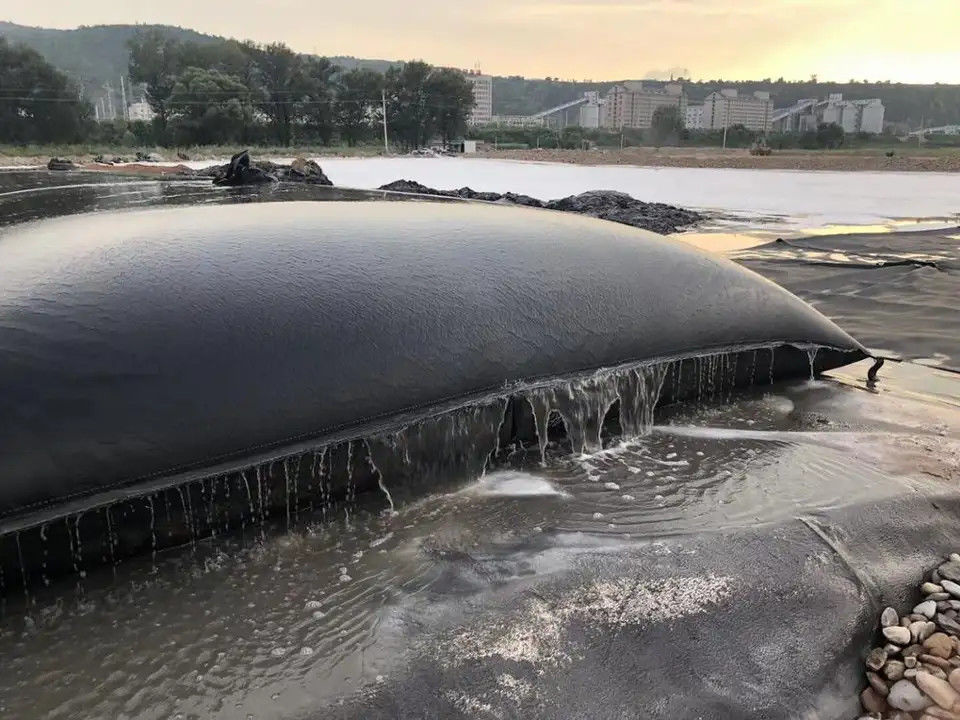

The Geotextile Tube Bag dehydration technology is an effective technology and a solution that has been proven safe for dehydration by many research centers around the world. It is made of high-performance, special polypropylene monofilament, flat yarn or split film yarn for cloth processing and special sewing.
The Description of Customized Mine Sludge Dewatering Geotextile Tube Sand Bag Geo Container Geotube for Breakwater Embankment Cofferdam Jetty Riverbank

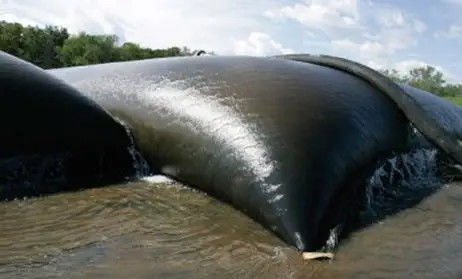

PP or PET woven geotextile geotube is geosynthetic Containers have been used as an alternative, sustainable solution for coastal protection for more than 20 years. They have a smaller footprint and lesser impact on the
environment than hard structures, such as rock and concrete, and are fabricated using specially engineered materials, to meet durability and environmental requirements.
The Property of Customized Mine Sludge Dewatering Geotextile Tube Sand Bag Geo Container Geotube for Breakwater Embankment Cofferdam Jetty Riverbank
1).High tensile strength(70-200KN/m)
2).High seam strength(>80%)
We use the domestic leading seaming technology. The edge seams of geotube have more strong tensile strength than the overseam sewing technology, which is very good to prevent geotube be filled into burst out.
3). High UV resistance(>90%/500h)
4). High resistance to acid and alkali (PH 2-13)
| Iterm | Unit | Standard | Index | |||
| HT500 | HT750 | HT1000 | ||||
| Tensile Strength | Radial Direction | KN/M | ISO 10319-2015 | 85 | 130 | 220 |
| Zonal Direction | KN/M | ISO 10319-2015 | 115 | 120 | 200 | |
| Elongation at Break | Radial Direction | % | ISO 10319-2015 | 13 | 12 | 13 |
| Zonal Direction | % | ISO 10319-2015 | 8 | 8 | 8 | |
| Joint Tensile Strength | KN/M | ISO 10319-2015 | 90 | 100 | 170 | |
| CBR | KN | GB/T14800-2010 | 9 | 15 | 20 | |
| Dynamic Perforation | MM | GB/T17630-1998 | 8 | 10 | 8 | |
| Effective Aperture(O90) | MM | GB/T14799-2005 | 0.45 | 0.4/0.28 | 0.45 | |
| Permeability(Q50) | L/m2/s | GB/T15789-2005 | 35 | 14 | 18 | |
| UV Resistance | % | ASTM D4355-2014 | 90 | 85 | 85 | |
Advantages of Geotube
1. High strength, low deformation
2. Durability: steady property, not easy to resolved, air slaked and can keep the original property long term
3. Anti-erosion: anti-acid, anti-alkali, resists insects and mould
4. Permeability: could control the sieve size to retain certain permeability
5. Effective high volume containment
6. Efficient dewatering and volume reduction
7. Cost effective
8. No special equipment required
we have obtained I S O 9 0 0 1 certificate. Our products are widely applied in many fields, such as road, highway, airway, coal mine, water and soil conservation, water conservancy and basic construction.
Selling well in all cities and provinces around China, our products are also exported to clients in such countries and regions as Vietnam,Thailand, Indonesia, Ukraine, Russia, Colombia, Canada, Georgia, Romania, and Yemen We also welcome O E M and O D M orders. Whether selecting a current product from our catalog or seeking engineering assistance for your application, you can talk to our customer service center about your sourcing requirements
