Place of Origin:
China
Brand Name:
zhongloo
Certification:
ISO9001
Model Number:
steel plastic geogrid
Contact Us
Steel Plastic Reinforcement Earthwork Geogrid
Steel Plastic Biaxial Geogrid for Construction

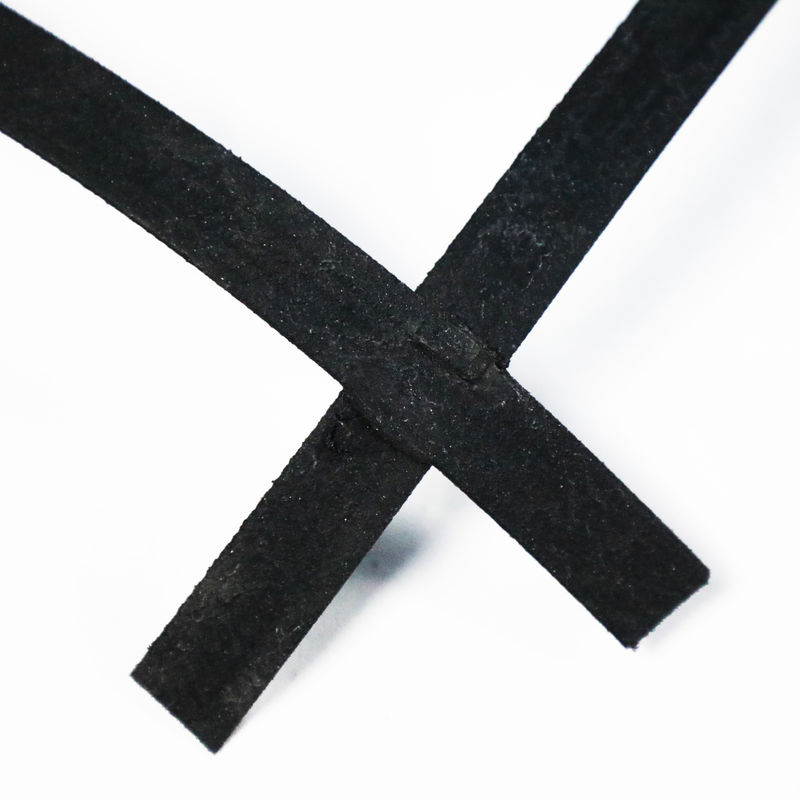

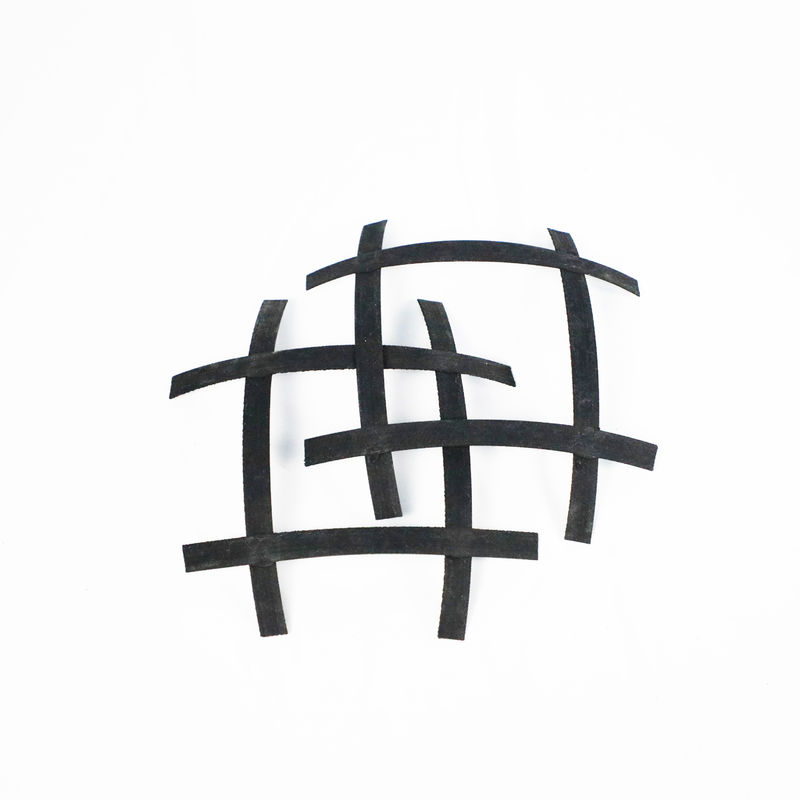

The steel plastic composite geogrid uses high tensile steel wire (or other fiber) specially handled and polyethylene (P.E) with other assistants. Then squeeze it out and make it become composite high-strength anti-pull belt and the surface has rough embossing then it is reinforcement earthwork belt. Warp knitting vertically and horizontally using this single belt and welding the joint using a special welding technology to molding is reinforcement geogrid.
Technical parameter
| Index | Specification | ||||
| 50-50 | 60-60 | 80-80 | |||
| Tensile Strength(KN/m) | Longitudinal | ≥50 | ≥60 | ≥80 | |
| Horizontal | ≥50 | ≥60 | ≥80 | ||
| Elongation(%) | ≤3 | ||||
| Ultimate separation force at the junction | ≥300 | ≥500 | |||
