Plastic HDPE Geocelda Geocell Cellular Confinement System Erosion Control
for Construction and Slope Protection

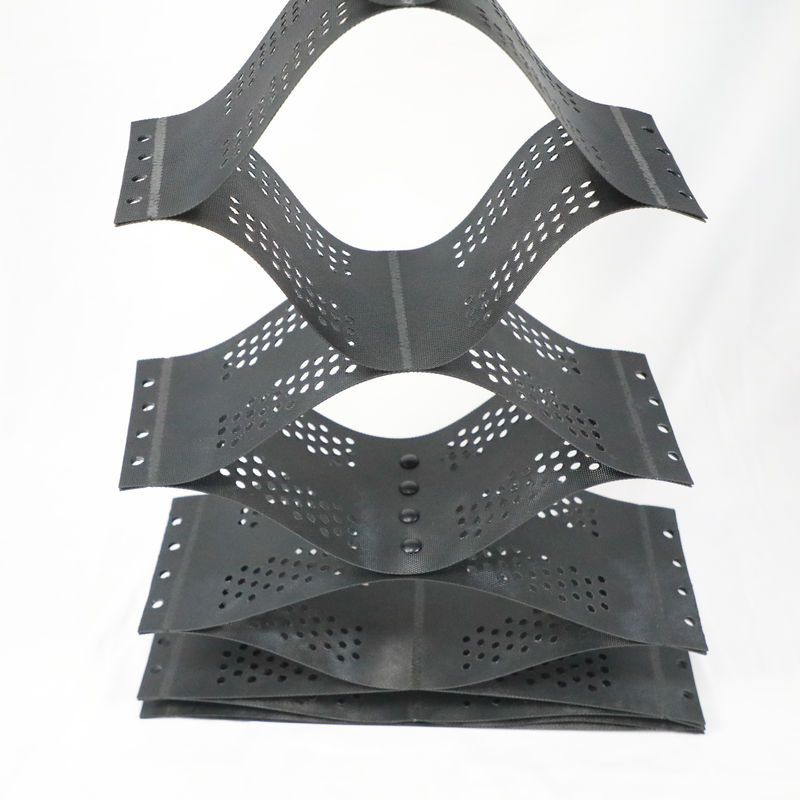

Introducing our high-quality HDPE Geocell, a leading solution in geosynthetics products for effective ground stabilization. This plastic geocell features a robust honeycomb grid design, making it perfect for gravel grids, permeable pavers, and as a soil stabilizer. Whether you need a geocell for driveways, retaining walls, or road construction, our geocell retaining walls and gravel stabilizer systems provide superior support and drainage. Available for sale at competitive geocell prices, our products are engineered to enhance stability in various applications. Choose our HDPE geocells for reliable performance in any project.Geocells are engineered for protection and stabilization applications. They are often used to help improve the performance of standard construction materials and erosion-control treatments. Geocell products are three-dimensional, expandable panels made from high-density polyethylene (HDPE), polyester or another polymer material.When expanded during installation, the interconnected strips form the walls of a flexible, three-dimensional cellular structure into which specified infill materials are placed and compacted. This creates a free-draining system that holds infill materials in place and prevents mass movements by providing confinement through tensile reinforcement.
Product Features
1.Geocell is made of lightweight material, resistant to wear, stable in chemical properties, anti-aging, and resistant to acids and alkalis. The HDPE geocell is suitable for various soil types, desert terrains, and other challenging geological conditions.
2.Geocell system provides high lateral confinement, excellent anti-skidding and anti-deformation properties, effectively enhancing the load-bearing capacity and load distribution of the subgrade.
3.HDPE geocell has high load-carrying capacity, excellent dynamic performance, and strong erosion control ability, making it ideal for slope protection, retaining walls, and road stabilization.

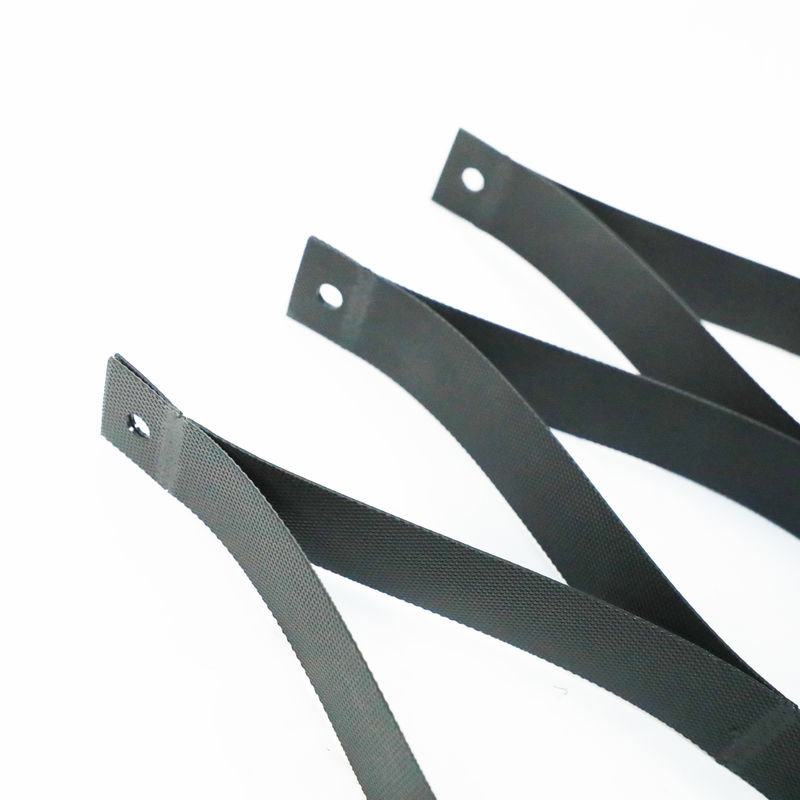

4.The geocell structure allows for flexible adjustment of cell height and welding distance, adapting to diverse engineering requirements.
5.Geocell panels are retractable, have low transport volume, are easy to connect, and enable fast and efficient construction on-site.
6.During construction, geocells allow the use of locally available infill materials (soil, sand, gravel), significantly reducing construction costs and making transport more efficient due to compact folding.
| Item |
Testing Result |
Index |
| Polymer Density |
ASTM D 1505 |
High Density Polythylene with density of 0.935 0.965 g/cm3 |
| Environmental Stress Crack Resistance |
ASTM D 1693 |
>4000 hours |
| Carben Black Content |
ASTM D 1603 |
1.5%-2% |
| Sheet Thickness |
ASTM D 5199 |
Smooth: 1.0mm-2mm; Textured:1.5mm-2.5mm |
| Welding Distance |
- |
330-1000mm |
| Cell Depth |
- |
50-250mm |
| Seam Hang Strength |
- |
A 100mm wide seam sample supports a 72.5kg load for a minimum of 30 days in an ambient room temperature environment. |

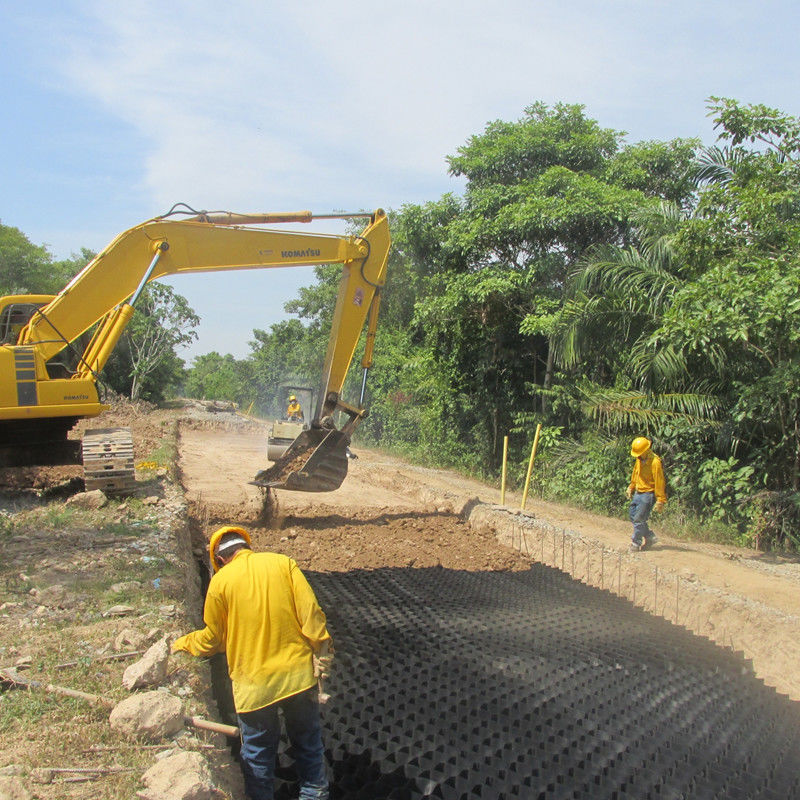

Roadbed reinforcementIn the construction of roads and railways with soft soil foundations or high load requirements, geocells can be used to reinforce the roadbed, prevent settlement and lateral displacement, and improve the stability and durability of the road.

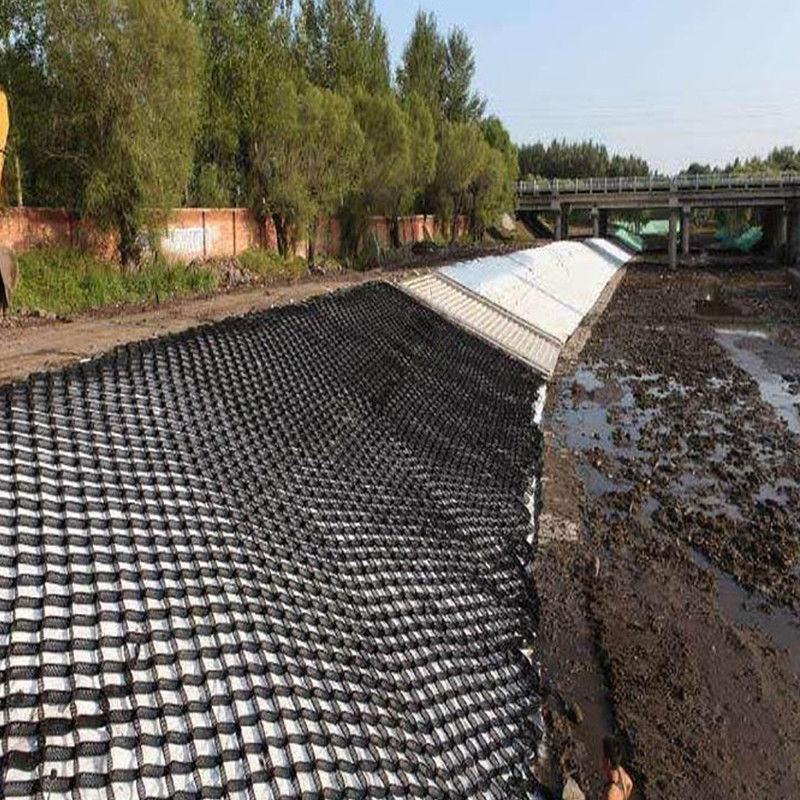

Riverbank and Coastal Protection
Geocells can be used in slope protection projects to stabilize riverbanks, lake slopes or coastlines to prevent water erosion and landslides.
Slope reinforcement and ecological restoration
In landslide control, mining area restoration or highway slope reinforcement, geocells can prevent soil loss and plant grass and green areas to achieve ecological restoration.
Emergency protection projects
Geocells can be used for emergency flood protection, such as explosion-proof walls, flood-resistant retaining walls, etc.
1) Used for the stability of railwway road.
2) To stabilize the desert highway road.
3) Used in the governance of shallow water channel.
4) Used for the foundation reinforcement of retaining wall, wharf, levee.
5) For the management of desert, beaches and river banks.

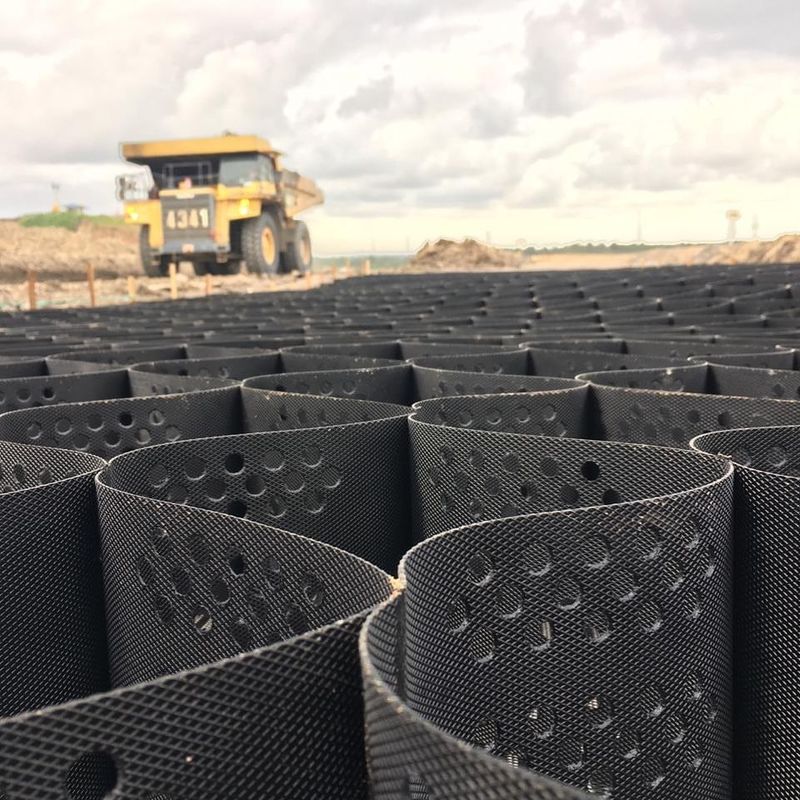

Why Geocell In roads, rail,wers, slope applications, and similar constructions we sometimes encounter soft and/or weak. The traditional approach is to fill these areas with expensive materials, which can be costly and time-consuming. However, there is an effective alternative method: using geocell directly on the subgrade. Geocell is made of ultrasonically-welded high-density polyethylene (HDPE) and can be expanded to form a honeycomb structure. Cells are then filled with readily available granular materials and compacted. The Geoc solution addresses soil stability problems in various applications through its high-strength network of interconnected cells.
How Geocell Works
When infilled with compacted materials, it creates a new composite entity that possesses enhanced mechanical and geotechn properties. When the soil contained within aell is subjected to pressure, it causes lateral stresses on the cell walls. 3D zone of confinement reduces the lateral movement of soil particles, while vertical loading on the contained infill results in high lateral stress and resistance the cell-soil interface. increase the shear strength of the confined soil, which:
- Creates a stiff mattress or slab to distribute the load over a wider area.
- Reduces punching of soft soil.
-creases shear resistance and bearing capacity.
- Decreases deformation.
Confinement from adjacent cells provides additional resistance against the loaded cell through passive resistance, while expansion of the infill is restricted by high hoop strength. Compaction is maintainedocell, resulting in-term reinforcement
Company Profile
Construction Method
1. The slope shall be laid in order from top to bottom. Don't pull it too tight.
2. Tow adjacent longitudinal joints should not be in a horizontal line, should bestaggered more than 1m each other.
3. Longitudinal joints should be more than 1.50m away from the dam foot and bending foot, and should be located on the plane.
4. When the slope is laid, the direction of spreading film should be basically parallel to the slope line.
5. The construction, first of all to use small diameter sand or clay levelingbase, and then laid the geomembrane. The geomembrane should not be stretched too tight, and the part of the soil bured at both ends is corrugated. A transitional layer of about 10cm is laid on the geomembrane with sand or clay.
Anhui Zhonglu Engineering Materials Co., Ltd.. It stands out as an exceptional factory in the field of geosynthetic materials.We specialize in the entire industrial chain operation of new geosynthetic materials such as geomembranes, composite geomembranes, geotextiles, geocells, threedimensional composite drainage nets, bentonite waterproof blankets, integrating production, R&D, and sales. Equipped with advanced production equipment and a professional technical team, ensuring efficient and stable supply of high-quality products.
With an unwavering pursuit of scientific and technological innovation, we continuously invest in R&D resources and have established long-term partnerships with well-known scientific research institutions, continuously introducing new products with outstanding performance. The company strictly adheres to the ISO9001 quality, environmental, and occupational health and safety management system certification standards. Every link, from raw material procurement to product delivery, is strictly controlled to ensure that products meet international standards.
