Geosynthetics PP Polypropylene Polyester filament spunbond Needle Punched Nonwoven Geotextile for road landfill projects
Product Description
Woven geotextile mainly uses polypropylene(PP) as raw materials. After extruding, it has long term corrosion resistance in the soil and water with different PH; It has excellent microbiological degradation resistance; because this material is light and soft, so it is convenient to transport and install.
Item | 150g | 200g | 250g | 300g | 400g | 500g | 600g | 800g | 1000g |
Nominal Breaking Strength KN/m | 4.5 | 7.5 | 10 | 15 | 20 | 25 | 30 | 40 | 50 |
MD/CD Break Strength ≥kN/m | 4.5 | 7.5 | 10 | 15 | 20 | 25 | 30 | 40 | 50 |
Elongation At Break % | 40%-80% | ||||||||
CBR KN | 0.8 | 1.6 | 1.9 | 2.9 | 3.9 | 5.3 | 6.4 | 7.9 | 8.5 |
MD/CD Tearing Strength KN | 0.14 | 0.21 | 0.28 | 0.42 | 0.56 | 0.70 | 0.82 | 1.1 | 1.25 |
Thickness(mm) | 0.8 | 1.2 | 1.6 | 2.2 | 2.8 | 3.4 | 4.2 | 5.5 | 6.8 |
Unit Weight Tolerance % | -5 | ||||||||
EOSØ90(Ø95), mm | 0.05-0.2 | ||||||||
Vertical Permeability Coefficient cm/s |
K×(10-1-10-3) K=1.0-9.9 | ||||||||
Width Deviation | -0.5 |

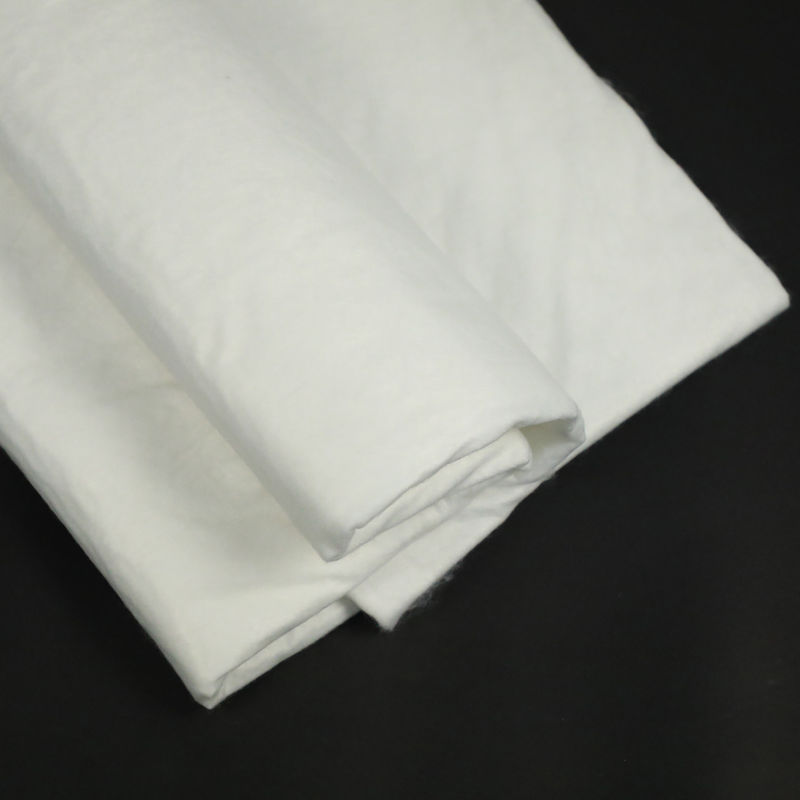

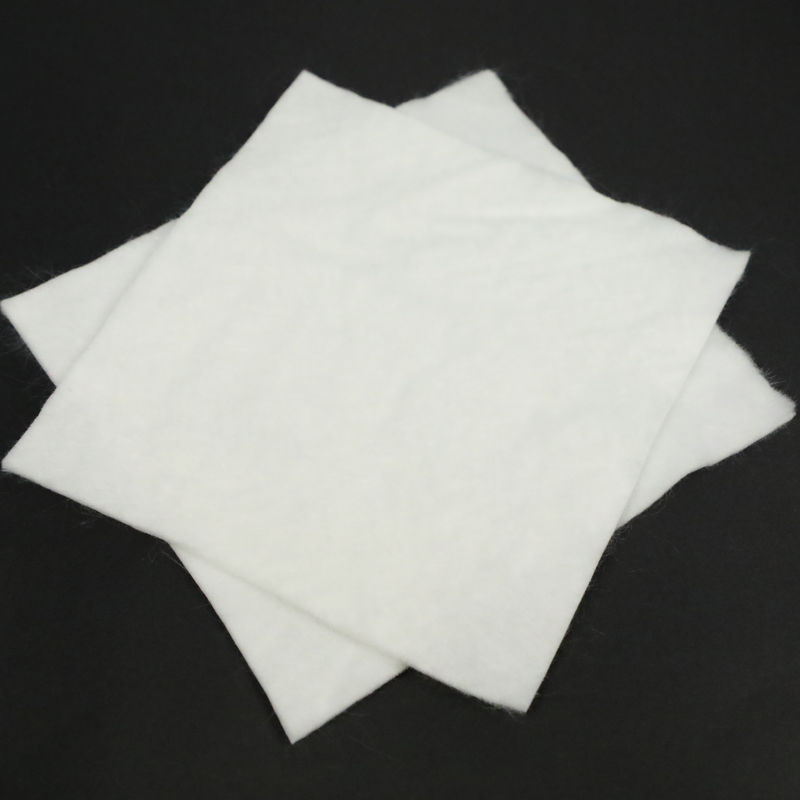

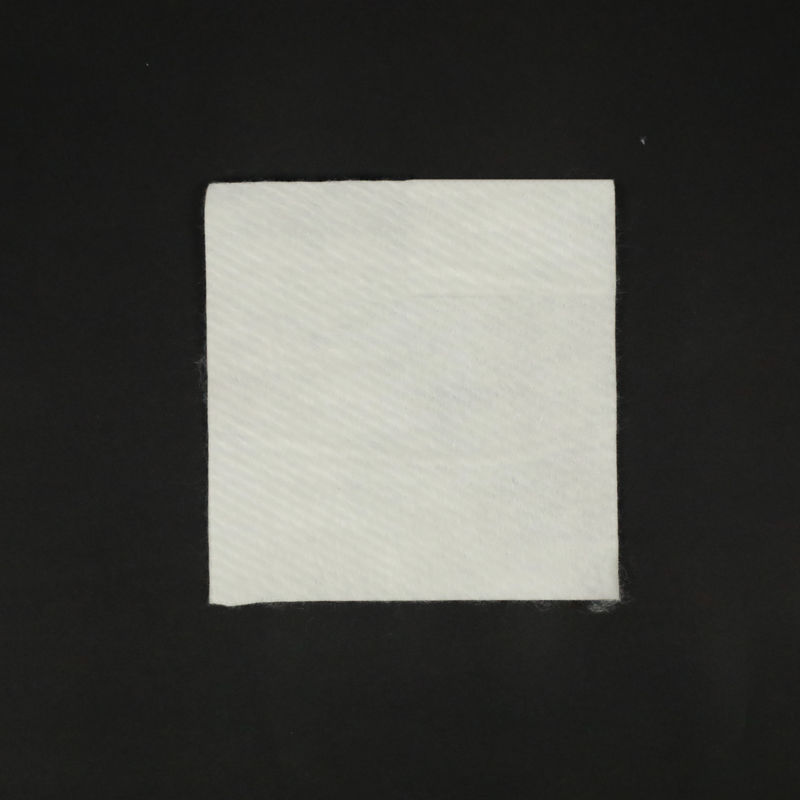

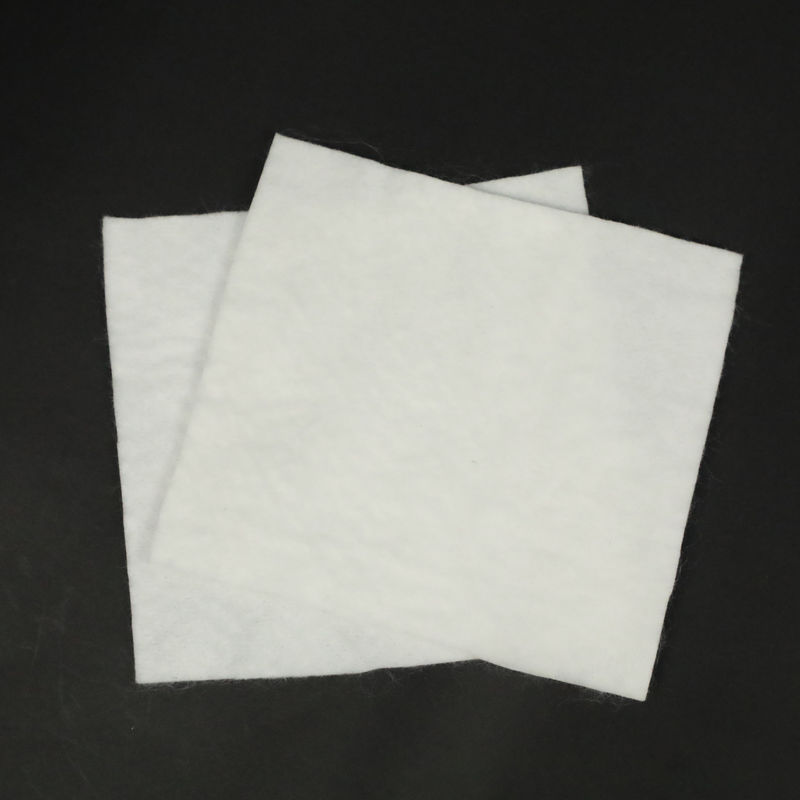

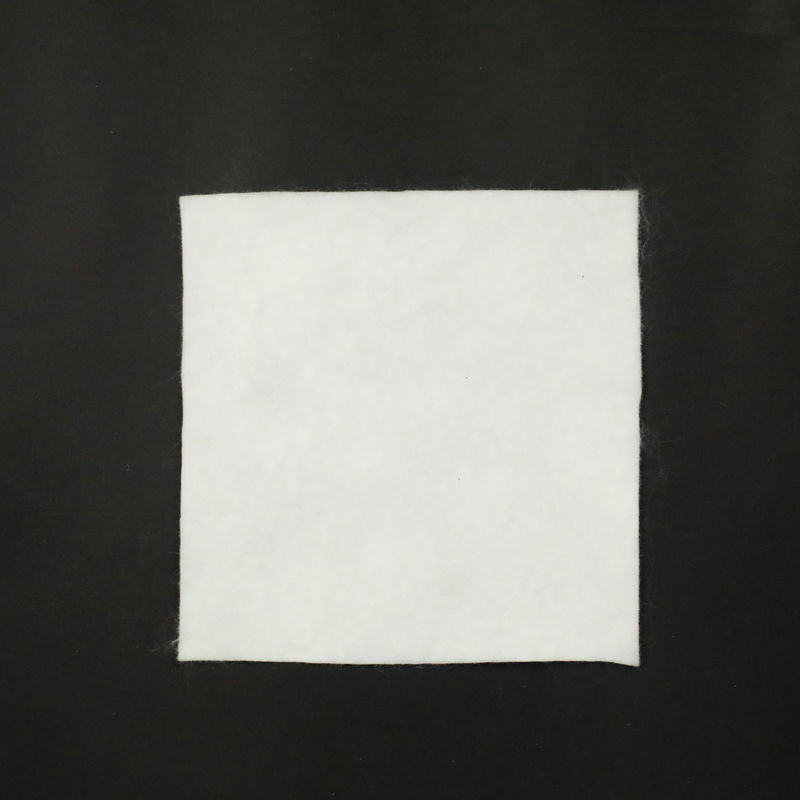

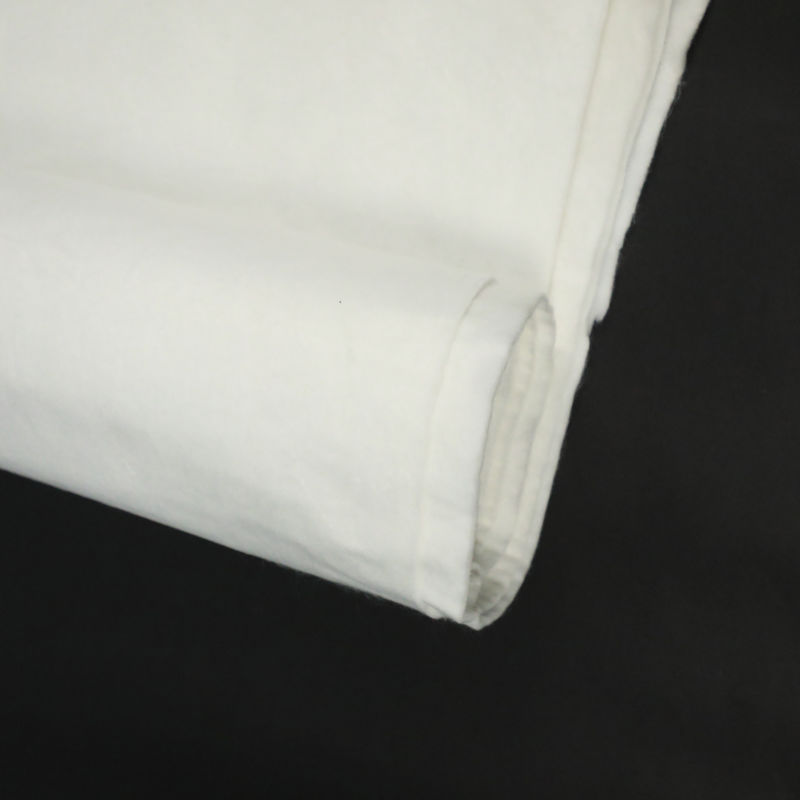

Products Display:
100% Virgin Material: 100% virgin exclusivefomulation material, make the bag No Smell Good Strength, Bright Color.
Products Application
It can be widely used in railway, highway, sports hall, dams, hydraulic construction, tunnel, coastal beach, land reclamation,environmental protection and other projects, can play a filtration, drainage, separation, protection, reinforcement effect.
