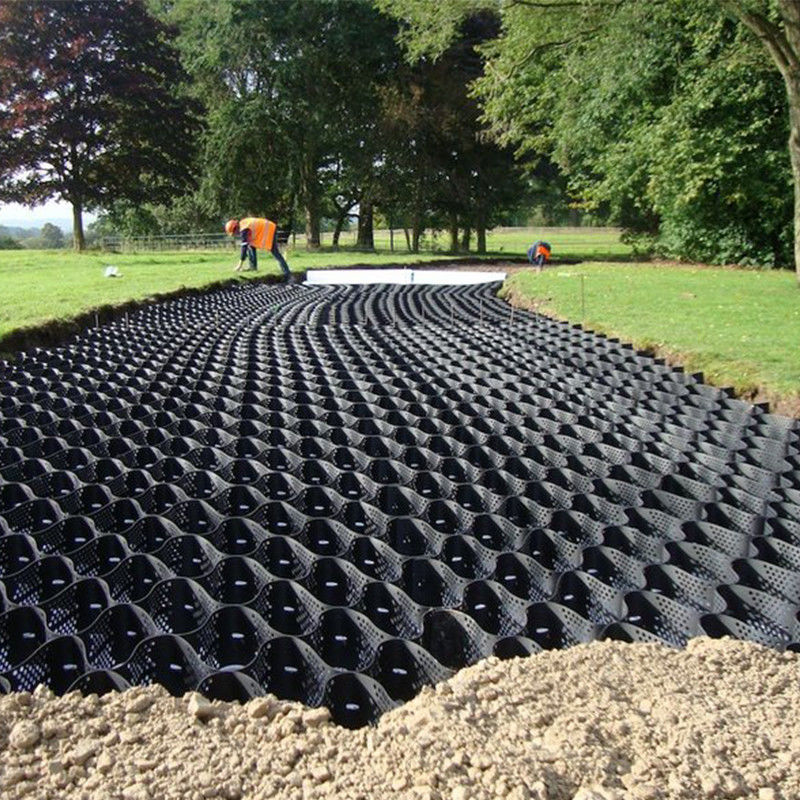

Ground Enhancement Cellular System Geocell Gravel Stabilizer Mat

Ground Enhancement Cellular System Geocell Gravel Stabilizer Mat

Ground geocell gravel

geocell gravel Mat

Cellular gravel stabilizer mat

Place of Origin:

China

Brand Name:

OEM

Certification:

ISO certificate

Model Number:

hdpe geocell

Contact Us

Request A Quote
Product Details
Feature:
Corrosion Resistant, Oxidation Resistance, Chemical Stability, Wear-resistant
Material:
HDPE
Thickness:
1.5 Or 1.6 Or 1.7mm
Height:
50-250mm
Surface:
Textured Smooth
Specification:
Cell Depth: 50mm, 100mm, 150mm, 200mm, 250mm
HS Code:
3926909090
Welding Distance:
300mm,330mm,440mm,445mm,600mm,800mm
Product Description

ground enhancement cellular system gravel grid driveway gravel stabilizer hdpe Geocell



hdpe Geocell Description:

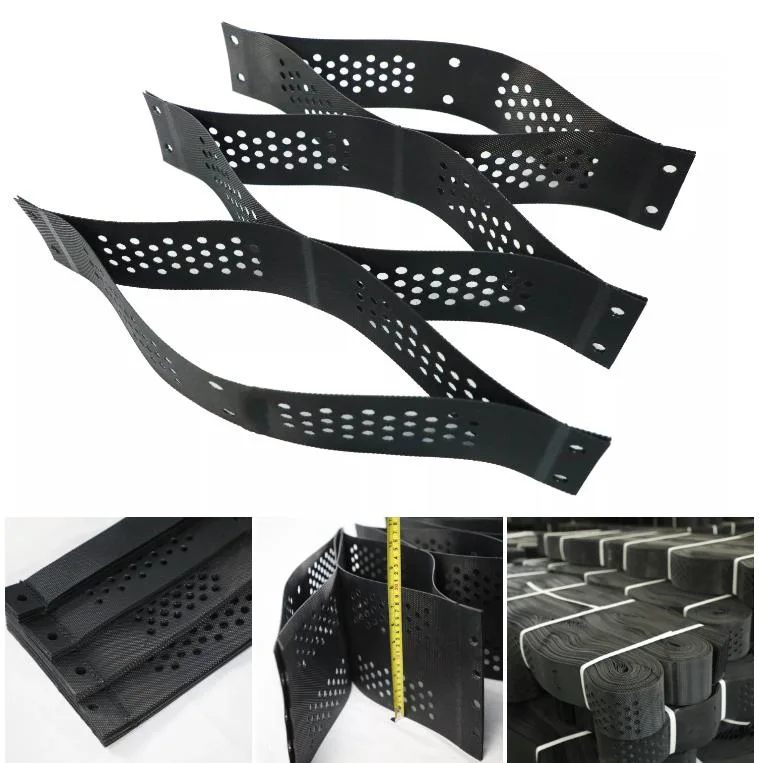

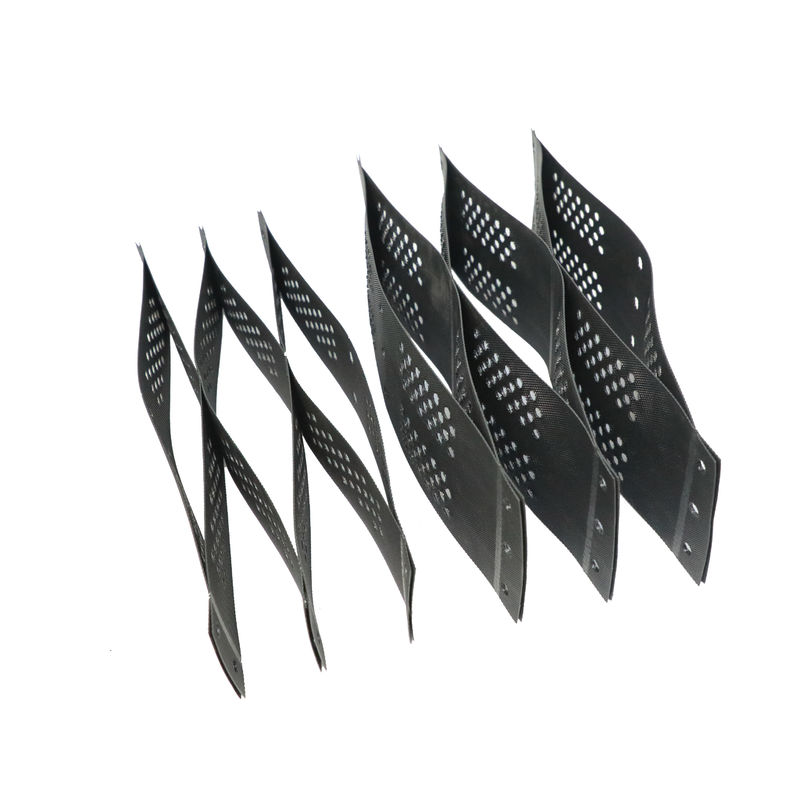

 High density polyethylene Geocell (HDPE Geocell) is a lightweight and flexible three-dimensional, expandable panels made from High Density Polyethylene (HDPE) strips which are ultrasonically bonded together to form an extremely strong configuration.


Width of the long strip is the height of the geocell, and the distance between two welding lines in the same side of the plate when the geocell is not expanded is welding distance.

HDPE plastic honeycomb hdpe geocell gravel grid Specifications:
1.Cell depth: 50mm , 100mm , 150mm , 200mm , 250mm
2. Welding space: 330mm~1600mm
3. Thickness: 1.0mm , 1.2mm , 1.5mm , 1.8mm
4. Appearance: smooth / textured

Ground Enhancement Cellular System Gravel Grid Driveway Gravel Stabilizer HDPE Geo Cell Geocell

HDPE plastic honeycomb hdpe geocell gravel grid Features:
1) Light material , resistant to wear , stable in chemical properties , anti-aging , resistant to acids and alkalis, applicable to different soil and desert and other geological conditions .
2)High limit on lateral direction , anti-skidding , anti-deformation , effectively enhance the supporting ability and scattered load function of roadbed .
3)High carrying capacity and good dynamic performance and high erosion ability .
4)The geometry size can be changed to meet different needs of the project , such as height and welding distance .
5)Retractable and small loading volume , convenient joint , speed construction .
6)Local material can be used during construction , reduce the construction cost , easy to be transported after folding together.



Technical Parameters:
Material Properties Unit         Test Method
Cell Depth mm 75 100 150 200
Polymer Density g/cm3 0.935-0.965 ASTM D 1505
Environmental Stress Crack Resistance Hours >400 ASTM D 5397
Environmental Stress Crack Resistance Hours 6000 ASTM D 1693
Carbon Black Content % 1.5% - 2.0% ASTM D 1603
Nominal Sheet Thickness Before Texturing mm 1.27 -5%,+10% ASTM D 5199
Nominal Sheet Thickness After Texturing mm 1.52-5%,+10% ASTM D 5199
Strip Puncture Resistance N 450 ASTM D 4833
Seam Peel Strength N 1065 1420 2130 2840 EN ISO13426-1B
Seam Efficiency % 100 GRI-GS13
Nominal Expanded Cell Size (width x length) mm 320x287,475x508 etc
Nominal Expanded Panel Size (width x length) m 2.56x8.35, 4.5x5.0, 6.5x4.5, 6.1x2.44


Applications:

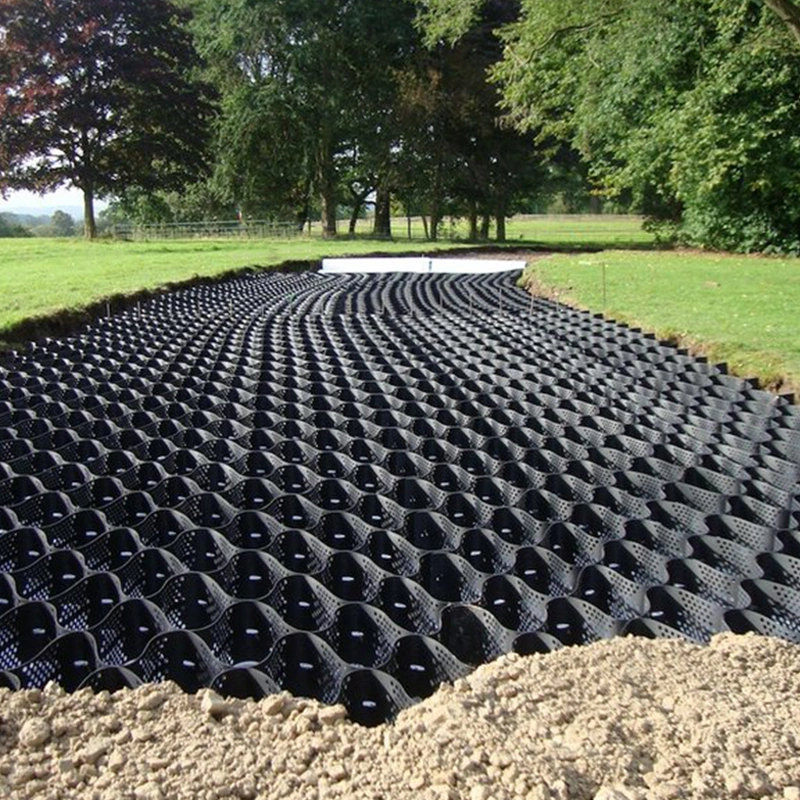

Plastic geocell grid gravel for road
1. Used for all kinds of road building , driveways , soil stabilization and embankment stabilization

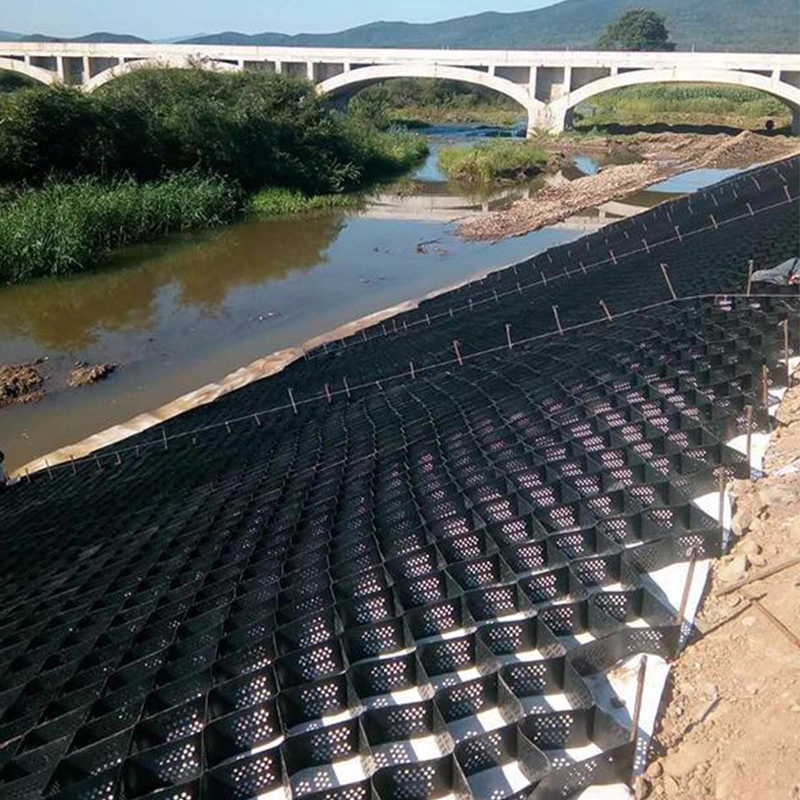

2. Used to stabilize river embankments .
3. Used to prevent landslides .
4. Using Geocell construction can greatly reduce labor intensity and reduce the thickness of the roadbed , construction speed , good performance and greatly reduce the project cost .

Ground Enhancement Cellular System Gravel Grid Driveway Gravel Stabilizer HDPE Geo Cell Geocell



Retaining Wall
Cellular Confinement Systems provide steep vertical mechanically stabilized earth structures (either gravity or reinforced walls)
for steep faces, walls and irregular topography



Slope Pretection
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Ground Enhancement Cellular System Gravel Grid Driveway Gravel Stabilizer HDPE Geo Cell Geocell
Ground Enhancement Cellular System Gravel Grid Driveway Gravel Stabilizer HDPE Geo Cell Geocell

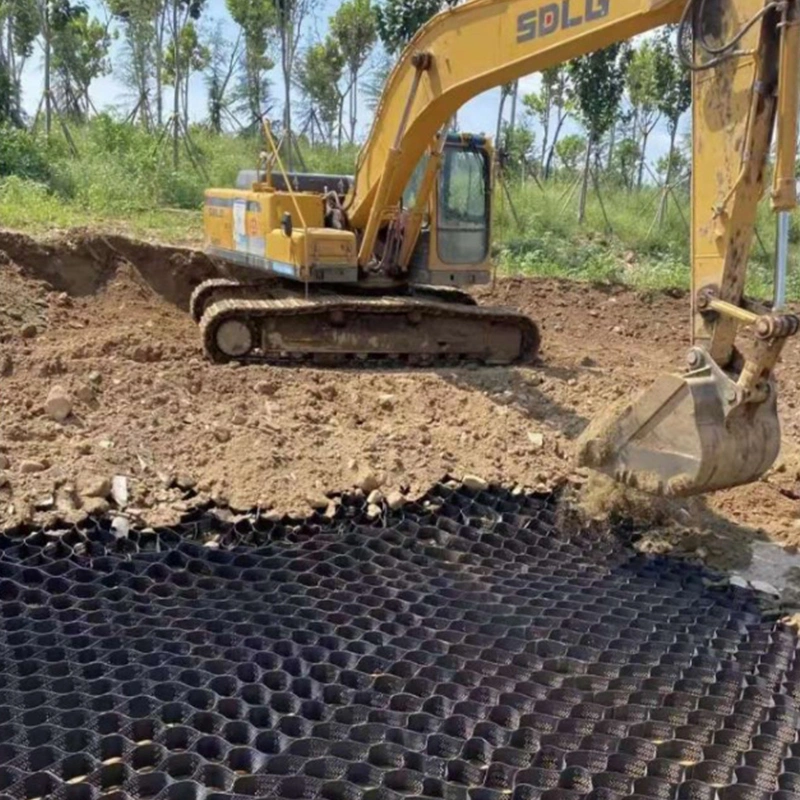

Gruound Stabilisation
Cellular Confinement Systems strengthen the aggregate infill, thereby simultaneously enabling the use of poorly graded inferior material for infill as well as reducing the structural support layer thickness.Typical stabilisation applications include reinforcement of base and subbase layers in flexible pavements, including: roads, railway substructure and ballast confinement;working platforms in intermodal ports; airport runways.

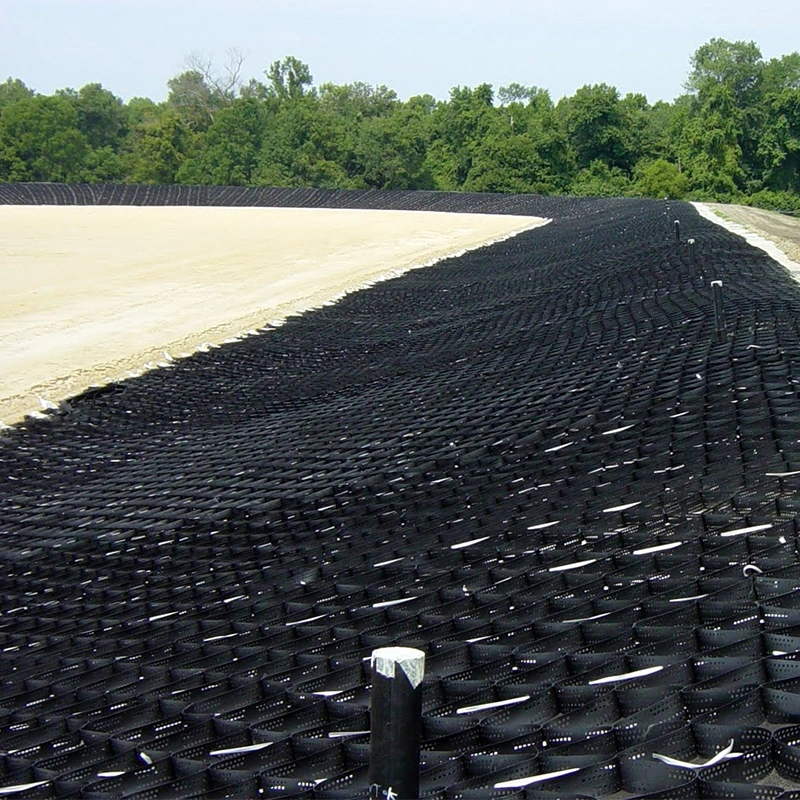

Load Support
Cellular Confinement Systems have been used to improve the performance of both paved and unpaved roads by reinforcing the soil in the subgrade-base interface or within the base course. The effective load distribution of geocell creates a strong,stiff 3D cellular mattress which can reduce vertical differential settlement into soft subgrades, improves shear strength, and enhances load-bearing capacity, while reducing the amount of aggregate material required to extend the service life of roads.
Ground Enhancement Cellular System Gravel Grid Driveway Gravel Stabilizer HDPE Geo Cell Geocell
Ground Enhancement Cellular System Gravel Grid Driveway Gravel Stabilizer HDPE Geo Cell Geocell
Channel Lining

Constructing GEOCELL drainage and diversion channels is a fast-to-deploy and economical means to create stormwater conveyance across tailings on mine sites. GEOCELL-confined aggregate channels can reduce rock size 10X, and make beneficial use of the mine's on-site aggregate resources. With concrete infill, GEOCELL channels offer flexible, hard-armor protection, stability and resistance to higher velocity and continuous flows.
Ground Enhancement Cellular System Gravel Grid Driveway Gravel Stabilizer HDPE Geo Cell Geocell
Ground Enhancement Cellular System Gravel Grid Driveway Gravel Stabilizer HDPE Geo Cell Geocell



FAQ

1. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

2.what can you buy from us?
Geocell,Geogrid,Geomembrane,Geotextile,and other related products.

3. why should you buy from us not from other suppliers?
More than 20 years of production experience

4. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW;



Professional geosynthetics manufacturer
