High Density Polyethylene Geocell Company Cellweb 75mm

High Density Polyethylene Geocell Company Cellweb 75mm

Polyethylene geocell company

75mm geocell company

Polyethylene cellweb 75mm

Place of Origin:

China

Brand Name:

OEM

Certification:

ISO certificate

Model Number:

Plastic HDPE Geocell

Contact Us

Request A Quote
Product Details
Hdpe Geocell Feature:
Corrosion Resistant, Oxidation Resistance, Chemical Stability, Wear-resistant
Specification:
High-density Polyethylene
Thickness:
1.5 Or 1.6 Or 1.7mm
Height:
50/75/100/150/200mm
Surface:
Textured Smooth
Color:
Black, Green, Sand
Peel Strength:
140n/10cm
Hole:
With Hole / Without Hole
Product Description

Plastic HDPE Geocell For Soft Soil Foundation And Steep Slope Protection



Plastic HDPE Geocell Description:

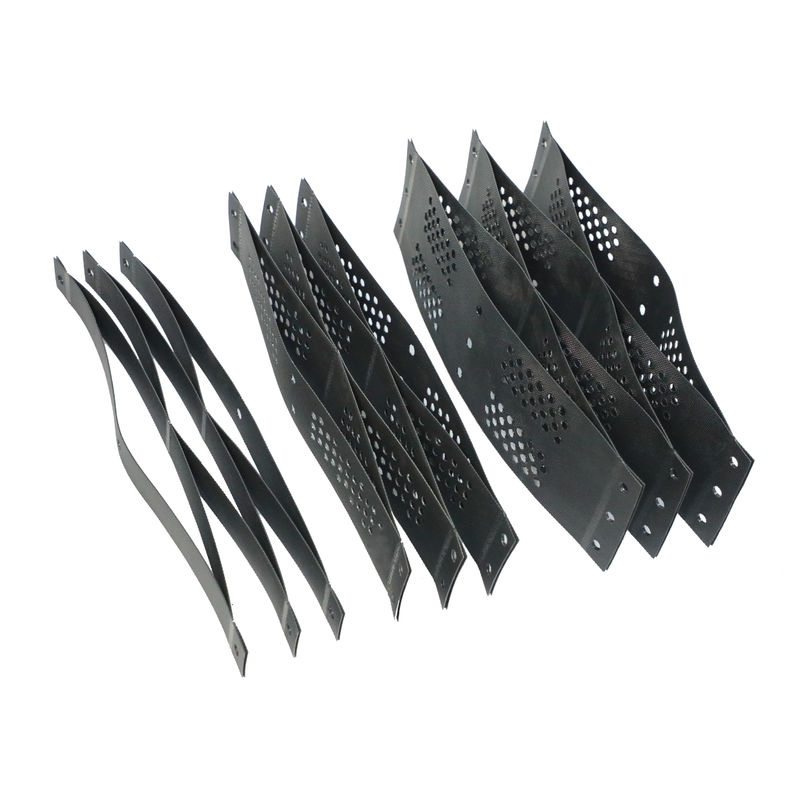

Geocell is a lightweight and flexible three-dimensional, expandable panels made from High-Density Polyethylene (HDPE) strips which are ultrasonically bonded together to form an extremely strong configuration.
Geocell System can be filled with a wide range of material: aggregate, concrete, sand, soil, etc



HDPE plastic honeycomb hdpe geocell gravel grid Specifications:
1.Cell depth: 50mm , 100mm , 150mm , 200mm , 250mm
2. Welding space: 330mm~1600mm
3. Thickness: 1.0mm , 1.2mm , 1.5mm , 1.8mm
4. Appearance: smooth / textured



HDPE Geocell BENEFITS & FEATURES
Multiple fill material options including concrete, topsoil, sand or aggregate
Existing material onsite can sometimes be used to fill the panels
Collapsible panels make the product cost-effective to transport to site
Ideal for constructing roads over soft material or sand





Technical Parameters:
Material Properties Unit         Test Method
Cell Depth mm 75 100 150 200
Polymer Density g/cm3 0.935-0.965 ASTM D 1505
Environmental Stress Crack Resistance Hours >400 ASTM D 5397
Environmental Stress Crack Resistance Hours 6000 ASTM D 1693
Carbon Black Content % 1.5% - 2.0% ASTM D 1603
Nominal Sheet Thickness Before Texturing mm 1.27 -5%,+10% ASTM D 5199
Nominal Sheet Thickness After Texturing mm 1.52-5%,+10% ASTM D 5199
Strip Puncture Resistance N 450 ASTM D 4833
Seam Peel Strength N 1065 1420 2130 2840 EN ISO13426-1B
Seam Efficiency % 100 GRI-GS13
Nominal Expanded Cell Size (width x length) mm 320x287,475x508 etc
Nominal Expanded Panel Size (width x length) m 2.56x8.35, 4.5x5.0, 6.5x4.5, 6.1x2.44

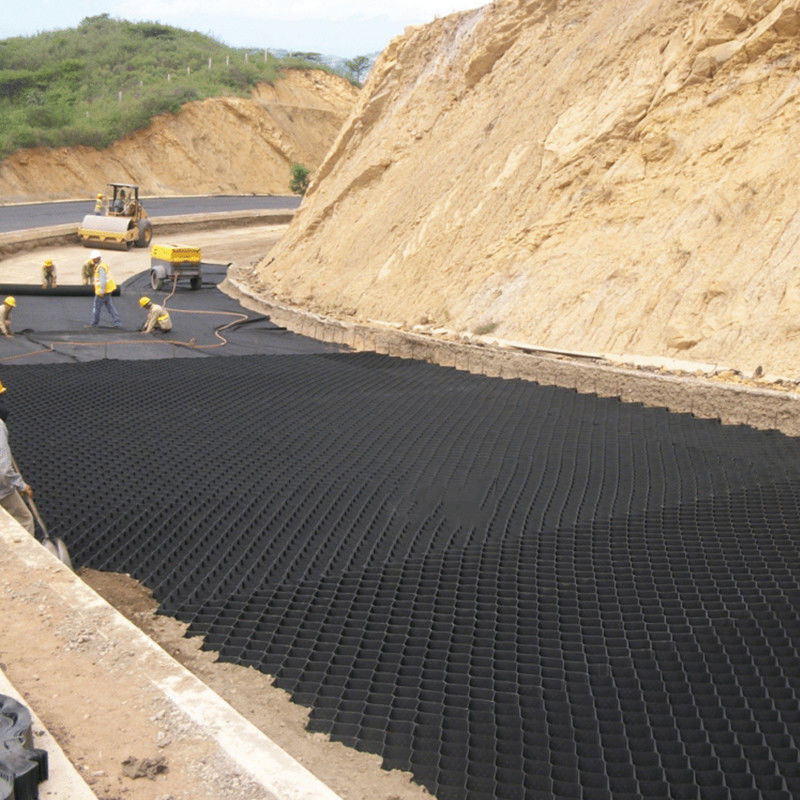

Applications:


Plastic geocell grid gravel for road
1. Used for all kinds of road building , driveways , soil stabilization and embankment stabilization
2. Used to stabilize river embankments .
3. Used to prevent landslides .
4. Using Geocell construction can greatly reduce labor intensity and reduce the thickness of the roadbed , construction speed , good performance and greatly reduce the project cost .



High Density Polyethylene Geocell Company Cellweb 75mm 0



FAQ

1. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

2.what can you buy from us?
Geocell,Geogrid,Geomembrane,Geotextile,and other related products.

3. why should you buy from us not from other suppliers?
More than 20 years of production experience

4. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW;



Professional geosynthetics manufacturer
Anhui Zhonglu Engineer Materials Co., Ltd
