50mm Hdpe Geo Geocell Geocell Cellular Confinement System For Farmland Walkway

50mm Hdpe Geo Geocell Geocell Cellular Confinement System For Farmland Walkway

50mm geo geocell

Cellular geo geocell

50mm geocell cellular confinement system

Place of Origin:

China

Brand Name:

OEM

Certification:

ISO certificate

Model Number:

Plastic HDPE Geocell

Contact Us

Request A Quote
Product Details
Corrosion Resistance:
Excellent Corrosion Resistance
Geocell Specification:
50mm~250mm
Thickness Of The Sheet (mm):
1.25; 1.50; 1.75
Height:
50/75/100/150/200mm
Application:
Retaining Wall, Dam, Railway, Highway
Peel Strength Of Welding Point:
1000~1420n/10cm
Function:
Distributing Load, Anti-deforming, Non-skid
Hole:
With Hole / Without Hole
Product Description

Gravel Stabilizer 50mm Hdpe Geocell Manufacturer Price Ground Grid For Farmland Walkway Driveway



Plastic HDPE Geocell Description:

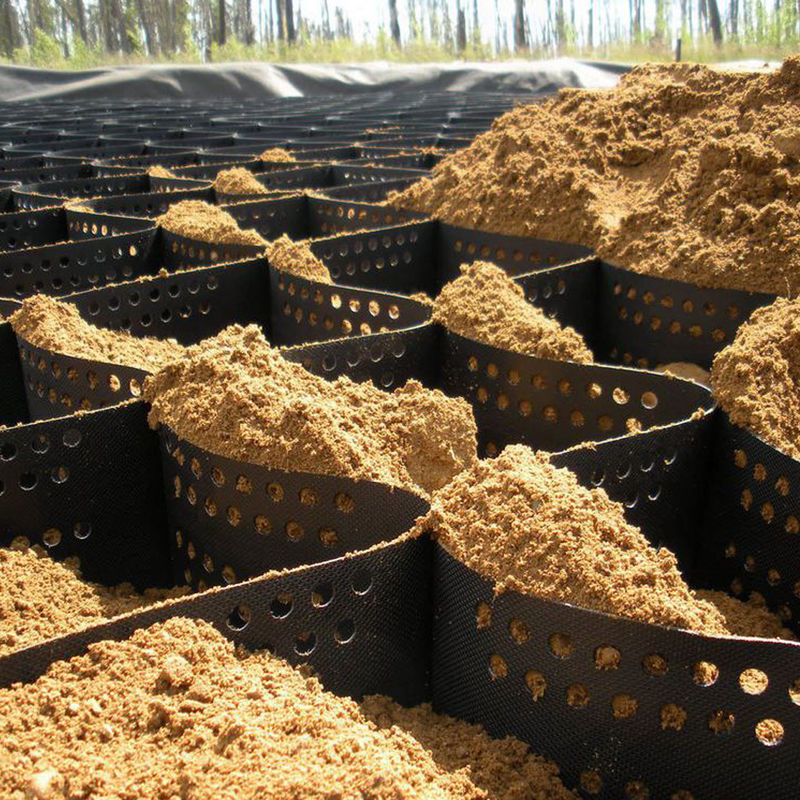

Plastic HDPE geocell is three dimensional, honeycomb like structures manufactured from high density polyethylene and jointly welded by ultrasonic technique. It is flexible to fold during the transport and installation on construction site. The geocell nets will be filled with soils, granular, cements or other on-site infill materials when stretched into web structures, which has powerful and rigid confinement in the lateral and vertical sides.



Feature

1, with flexible, transport can be folded, construction can be stretched into a network, filled with soil, gravel, concrete and other loose materials, constitute a strong lateral limit and stiffness of the structure.

2, light material, wear resistance, chemical stability, light and oxygen resistance aging, acid and alkali resistance, suitable for different soil and desert and other soil conditions.
3, higher lateral restrictions and anti-slip, anti-deformation, effectively enhance the bearing capacity of the roadbed and dispersed load.
4, Different engineering needs can be met by changing the height and welding distance of geotechnical chamber.
5, flexible, small transport volume; The connection is convenient and the construction speed is fast.





Technical Parameters:
Material Properties Unit         Test Method
Cell Depth mm 75 100 150 200
Polymer Density g/cm3 0.935-0.965 ASTM D 1505
Environmental Stress Crack Resistance Hours >400 ASTM D 5397
Environmental Stress Crack Resistance Hours 6000 ASTM D 1693
Carbon Black Content % 1.5% - 2.0% ASTM D 1603
Nominal Sheet Thickness Before Texturing mm 1.27 -5%,+10% ASTM D 5199
Nominal Sheet Thickness After Texturing mm 1.52-5%,+10% ASTM D 5199
Strip Puncture Resistance N 450 ASTM D 4833
Seam Peel Strength N 1065 1420 2130 2840 EN ISO13426-1B
Seam Efficiency % 100 GRI-GS13
Nominal Expanded Cell Size (width x length) mm 320x287,475x508 etc
Nominal Expanded Panel Size (width x length) m 2.56x8.35, 4.5x5.0, 6.5x4.5, 6.1x2.44


Applications:

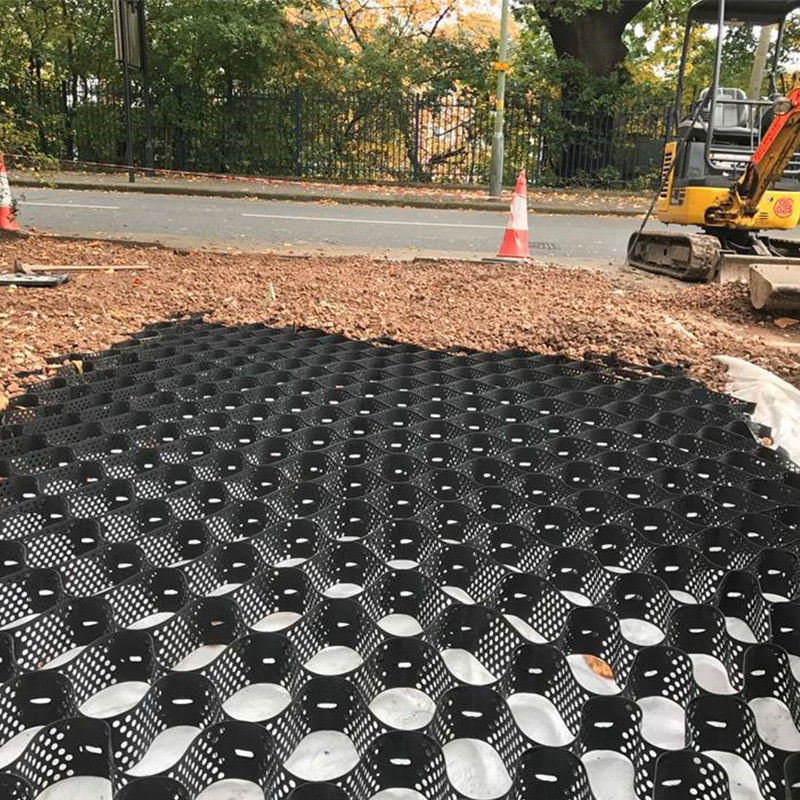

Plastic geocell grid gravel for road
1. Used to stabilize highway and railway subgrade.
2. It is used for embankment and shallow river regulation that bear the load of gravity.
3. A composite retaining wall used to prevent landslides and gravity loading.
4. When encountering soft ground, the use of geocells can greatly reduce the construction labor intensity, reduce the thickness of the roadbed, and achieve fast construction speed and good performance, greatly reducing project costs.



50mm Hdpe Geo Geocell Geocell Cellular Confinement System For Farmland Walkway 0



FAQ

1. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

2.what can you buy from us?
Geocell,Geogrid,Geomembrane,Geotextile,and other related products.

3. why should you buy from us not from other suppliers?
More than 20 years of production experience

4. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW;



Professional geosynthetics manufacturer
