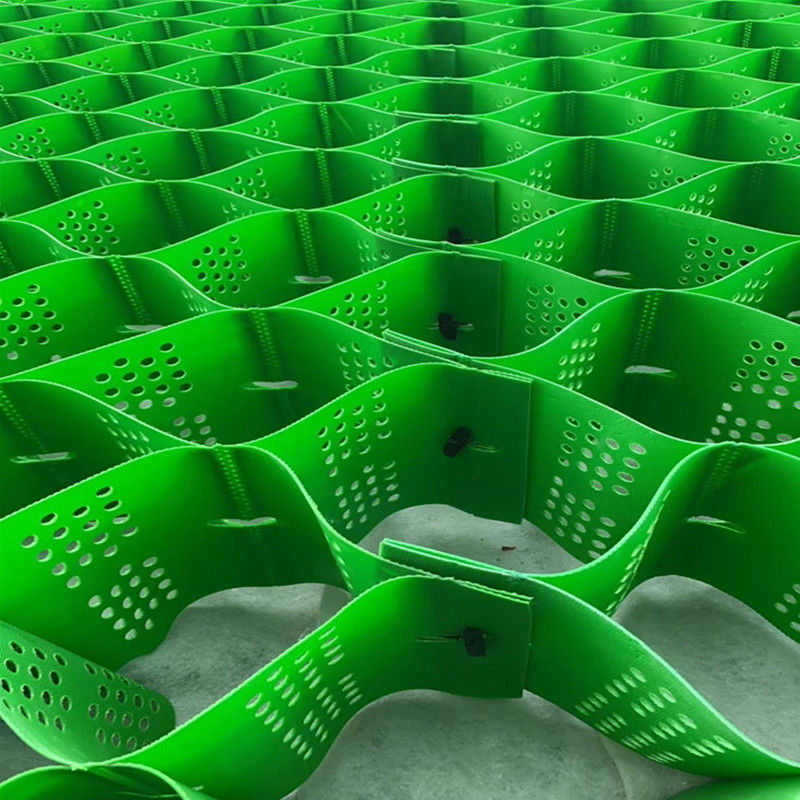

75mm Textured Perforated HDPE Geocell Cellweb System Grid

75mm Textured Perforated HDPE Geocell Cellweb System Grid

75mm HDPE Geocell

HDPE Geocell Grid

75mm cellweb system

Place of Origin:

China

Brand Name:

OEM

Certification:

ISO certificate

Model Number:

Plastic HDPE Geocell

Contact Us

Request A Quote
Product Details
Corrosion Resistance:
Excellent Corrosion Resistance
Product Name:
HDPE Textured Geocell
Warranty:
More Than 5 Years
Color:
Black, Green, Grey
Application:
Retaining Wall, Dam, Railway, Highway
Peel Strength Of Welding Point:
1000~1420n/10cm
Function:
Distributing Load, Anti-deforming, Non-skid
Keyword:
Hdpe Geocell
Product Description

Textured And Perforated HDPE Geocell Ground Enhancement Cellular System Grid



HDPE Geocell Ground Enhancement Cellular System Grid Description:

Geocells are engineered for protection and stabilization applications. They are often used to help improve the performance of standard construction materials and erosion-control treatments. Geocell products are three-dimensional, expandable panels made from high-density polyethylene (HDPE), polyester or another polymer material. When expanded during installation, the interconnected strips form the walls of a flexible, three-dimensional cellular structure into which specified infill materials are placed and compacted. This creates a free-draining system that holds infill materials in place and prevents mass movements by providing confinement through tensile reinforcement. Cellular confinement systems improve the structural and functional behavior of soils and aggregate infill materials.



WHAT IS THE ADVANTAGES?

Benefits of the Geocell Confinement System:

1). Reduce Fill Required – With the use of Geocell, fill quantity can be reduced by up to 70% while maintaining or improving bearing capacity. This saves time, transport, and material costs.
2). Eliminate Rutting – Prevent the lateral movement of infill. Lower quality fill materials can often be used since they are contained within the cells.
3). Support Heavy Loads – Improve the bearing capacity of subgrade soils and extend the life-cycle of the road.
4). Quick & Simple Installation - Easily installed without specialized equipment or crews.
5). Utilize Local Fill – Most local soils can be used as fill minimizing transportation costs and installation time.
6). Perforated Cells – Allow water to drain freely through permeable aggregates.





Technical Parameters:
Material Properties Unit         Test Method
Cell Depth mm 75 100 150 200
Polymer Density g/cm3 0.935-0.965 ASTM D 1505
Environmental Stress Crack Resistance Hours >400 ASTM D 5397
Environmental Stress Crack Resistance Hours 6000 ASTM D 1693
Carbon Black Content % 1.5% - 2.0% ASTM D 1603
Nominal Sheet Thickness Before Texturing mm 1.27 -5%,+10% ASTM D 5199
Nominal Sheet Thickness After Texturing mm 1.52-5%,+10% ASTM D 5199
Strip Puncture Resistance N 450 ASTM D 4833
Seam Peel Strength N 1065 1420 2130 2840 EN ISO13426-1B
Seam Efficiency % 100 GRI-GS13
Nominal Expanded Cell Size (width x length) mm 320x287,475x508 etc
Nominal Expanded Panel Size (width x length) m 2.56x8.35, 4.5x5.0, 6.5x4.5, 6.1x2.44

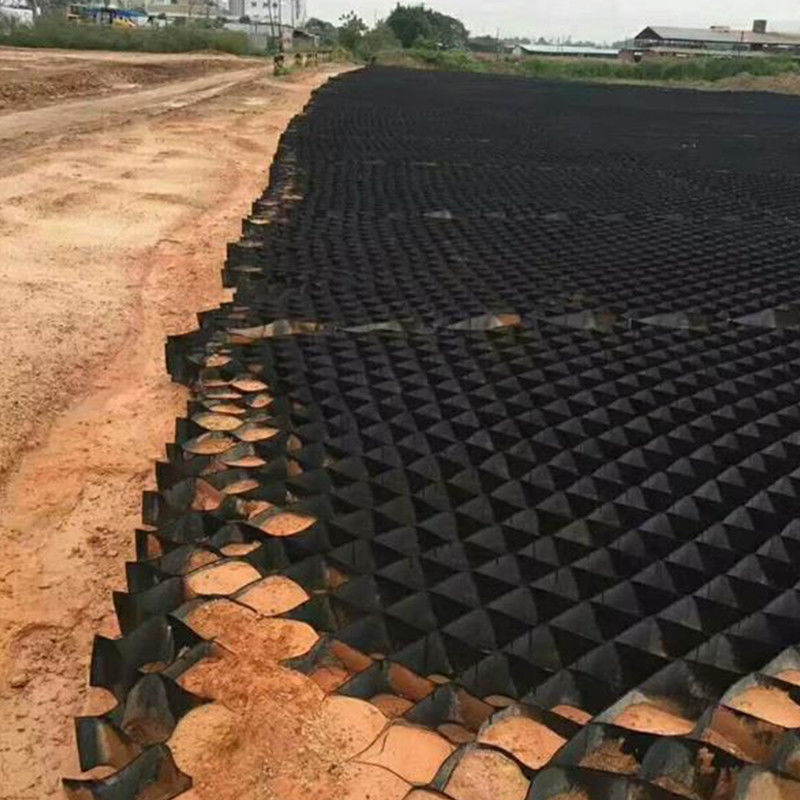

WHAT THIS PRODUCTS USED FOR?

1). To stable the roadbed of highway/railway.
2). To bear the load of dyke, retaining wall
3). To improve the watercourse of shallow river
4). To support the pipeline and sewer.
5). To be used as independent wall, wharf and breakwater, etc..
6). To be used for the regulation of the desert, beaches, river bed and river bank



75mm Textured Perforated HDPE Geocell Cellweb System Grid 0



FAQ

1. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

2.what can you buy from us?
Geocell,Geogrid,Geomembrane,Geotextile,and other related products.

3. why should you buy from us not from other suppliers?
More than 20 years of production experience

4. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW;



Professional geosynthetics manufacturer
