HDPE Plastic Geocell For Road Construction Ground Grid 150mm 100mm

HDPE Plastic Geocell For Road Construction Ground Grid 150mm 100mm

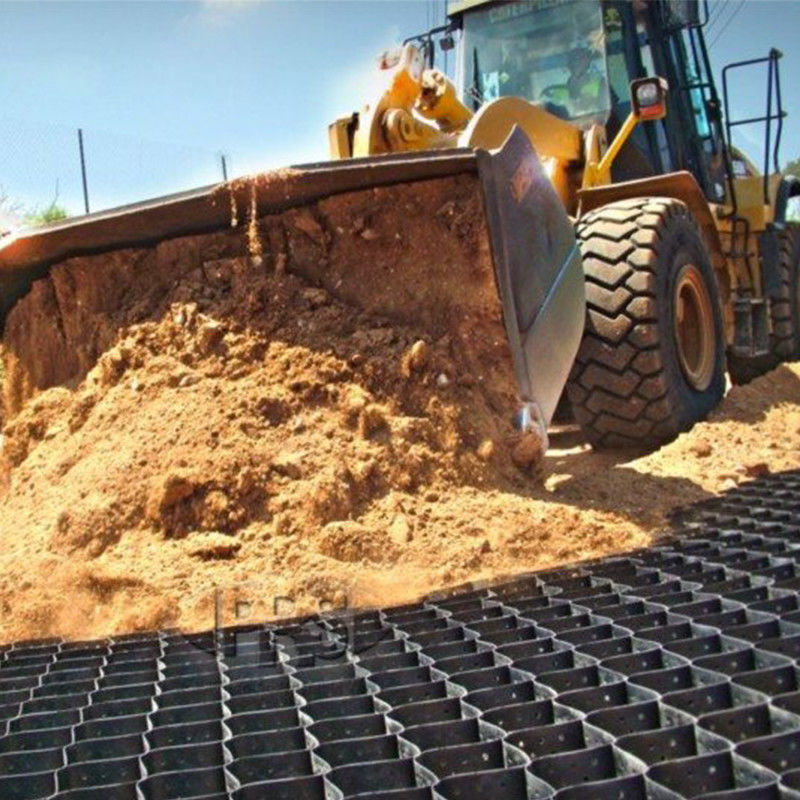

100mm geocell for road construction

150mm geocell for road construction

100mm geocell road

Place of Origin:

China

Brand Name:

OEM

Certification:

ISO certificate

Model Number:

Plastic HDPE Geocell

Contact Us

Request A Quote
Product Details
Type:
Geocells
Raw Material:
HDPE
Application Of Geocell:
Load Support/Slope Stabilization/Retaining Wall
Surface Of Geocell:
Perforated Texture Or Smooth
Application:
Retaining Wall, Dam, Railway, Highway
Peel Strength Of Welding Point:
1000~1420n/10cm
Function:
Distributing Load, Anti-deforming, Non-skid
Cell Depth:
75-100-150-200mm
Product Description

Plastic HDPE Geo Cell Used In Road Construction Ground Grid Geocell



Ground Grid Geocell Description:

Geocells are engineered for protection and stabilization applications. They are often used to help improve the performance of standard construction materials and erosion-control treatments. Geocell products are three-dimensional, expandable panels made from high-density polyethylene (HDPE), polyester or another polymer material. When expanded during installation, the interconnected strips form the walls of a flexible, three-dimensional cellular structure into which specified infill materials are placed and compacted. This creates a free-draining system that holds infill materials in place and prevents mass movements by providing confinement through tensile reinforcement. Cellular confinement systems improve the structural and functional behavior of soils and aggregate infill materials.



WHAT IS THE ADVANTAGES?

Benefits of the Geocell Confinement System:

1). Reduce Fill Required – With the use of Geocell, fill quantity can be reduced by up to 70% while maintaining or improving bearing capacity. This saves time, transport, and material costs.
2). Eliminate Rutting – Prevent the lateral movement of infill. Lower quality fill materials can often be used since they are contained within the cells.
3). Support Heavy Loads – Improve the bearing capacity of subgrade soils and extend the life-cycle of the road.
4). Quick & Simple Installation - Easily installed without specialized equipment or crews.
5). Utilize Local Fill – Most local soils can be used as fill minimizing transportation costs and installation time.
6). Perforated Cells – Allow water to drain freely through permeable aggregates.





Technical Parameters:
Material Properties Unit         Test Method
Cell Depth mm 75 100 150 200
Polymer Density g/cm3 0.935-0.965 ASTM D 1505
Environmental Stress Crack Resistance Hours >400 ASTM D 5397
Environmental Stress Crack Resistance Hours 6000 ASTM D 1693
Carbon Black Content % 1.5% - 2.0% ASTM D 1603
Nominal Sheet Thickness Before Texturing mm 1.27 -5%,+10% ASTM D 5199
Nominal Sheet Thickness After Texturing mm 1.52-5%,+10% ASTM D 5199
Strip Puncture Resistance N 450 ASTM D 4833
Seam Peel Strength N 1065 1420 2130 2840 EN ISO13426-1B
Seam Efficiency % 100 GRI-GS13
Nominal Expanded Cell Size (width x length) mm 320x287,475x508 etc
Nominal Expanded Panel Size (width x length) m 2.56x8.35, 4.5x5.0, 6.5x4.5, 6.1x2.44

WHAT THIS PRODUCTS USED FOR?

1). To stable the roadbed of highway/railway.
2). To bear the load of dyke, retaining wall
3). To improve the watercourse of shallow river
4). To support the pipeline and sewer.
5). To be used as independent wall, wharf and breakwater, etc..
6). To be used for the regulation of the desert, beaches, river bed and river bank

HDPE Plastic Geocell For Road Construction Ground Grid 150mm 100mm 0
Ground Stabilisation
Cellular Confinement Systems strengthen the aggregate infill, thereby simultaneously enabling the use of poorly graded inferior material for infill as well as reducing the structural support layer thickness.Typical stabilization applications include reinforcement of base and sub-base layers in flexible pavements, including: roads, railway substructure and ballast confinement; working platforms in inter modal ports; airport runways.
Load Support
Cellular Confinement Systems have been used to improve the performance of both paved and unpaved roads by reinforcing the soil in the subgrade-base interface or within the base course. The effective load distribution of geocell creates a strong,stiff 3D cellular mattress which can reduce vertical differential settlement into soft subgrades, improves shear strength, and enhances load-bearing capacity, while reducing the amount of aggregate material required to extend the service life of roads.
HDPE Plastic Geocell For Road Construction Ground Grid 150mm 100mm 1
HDPE Plastic Geocell For Road Construction Ground Grid 150mm 100mm 2



Slope Protection

The three-dimensional lateral confinement of Cellular Confinement Systems along with anchoring techniques ensures the long-term
stability of slopes using vegetated topsoil, aggregate or concrete surfacing



Retaining Wall

Cellular Confinement Systems provide steep vertical mechanically stabilized earth structures (either gravity or reinforced walls) for steep faces, walls and irregular topography
HDPE Plastic Geocell For Road Construction Ground Grid 150mm 100mm 3
