Polypropylene Biaxial HDPE Geogrid Retaining Wall Composite Geogrid

Polypropylene Biaxial HDPE Geogrid Retaining Wall Composite Geogrid

Polypropylene geogrid retaining wall

HDPE geogrid retaining wall

HDPE composite geogrid

Place of Origin:

China

Brand Name:

zhongloo

Certification:

SGS

Model Number:

biaxial geogrid

Contact Us

Request A Quote
Product Details
Product Material:
Polypropylene
Product Certificate:
CE, ISO
Product Width:
4m,6m
Product Length:
50m,100m
The Elongation Ratio:
Not More Than 10%
Classification:
PP Biaxial Geogrid
Product Color:
Black,green
Mesh Size (mm):
12.7*12.7 / 25.4*25.4 /40*40mm
Transport Package:
Black PE Film Or Woven Bags For Outside Packag
Product Feature:
High Tensile Strength
Product Description

Plastic Biaxial Polypropylene HDPE Geogrid Composite Geogrid Composite Polypropylene Geocomposite Geogrid



Product Introduction

A geogrid is a geosynthetic with large openings or apertures.Geogrids are used as soil reinforcement below roads,under structures and behind retaining walls.They also reinforce paving overlays.Geogrids can be uniaxial (strength in one direction) or biaxial (equal strength in both directions) and are made from polyester, polypropylene or fiberglass.Manufacturing methods include woven,knitted,extruded or otherwise “integrally formed.”

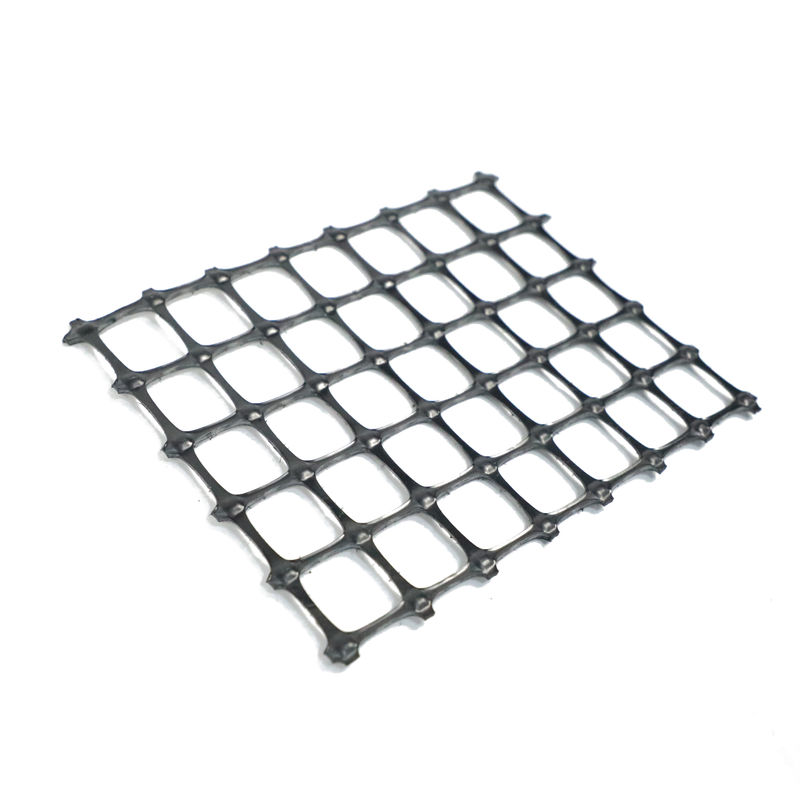

Polypropylene Biaxial HDPE Geogrid Retaining Wall Composite Geogrid 0

Technical parameters



MODEL TGSG15-15 TGSG20-20 TGSG30-30 TGSG40-40 TGSG45-45 TGSG50-50
Mass per
Unit Area (g/m2)
300±30 330±30 400±40 500±50 550±50 600±50
Width (m) 1-6m
Tensile Yield Force per Linear Meter (KN/m) (MD) 15 20 30 40 45 50
Tensile Yield Force per Linear Meter(KN/m) (CD) 15 20 30 40 45 50
(MD)Yield Elongation (%)≤ 15
(CD)Yield Elongation (%)≤ 13
Strength at 2% Strain, (KN/m)≥(MD) 5 8 11 15 18 19
Strength at 2% Strain(KN/m) ≥(CD) 7 10 13 17 20 24
Strength at 5% Strain (KN/m) ≥(MD) 8 15 24 30 35 39
Strength at 5% Strain (KN/m) ≥(CD) 10 16 25 31 36 40
Mesh Size (mm) 30*30 36*38 34*36 34*36 40*40 40*40
Remark Special specifications can be customized according to the contract.



Product Benefits



Improving bearing capacity of foundation
Preventing cracking and subsiding
Convenient to construct, reducing cost and maintaining expense





Product Application



1. Reinforcement and Stabilisation of earth fencing walls, railways, highways and water conservation projects;

2. Reinforcement of road foundations;

3. Retaining walls;

4. Road slope repair and reinforcement;

5. Be used in noise barriers construction.

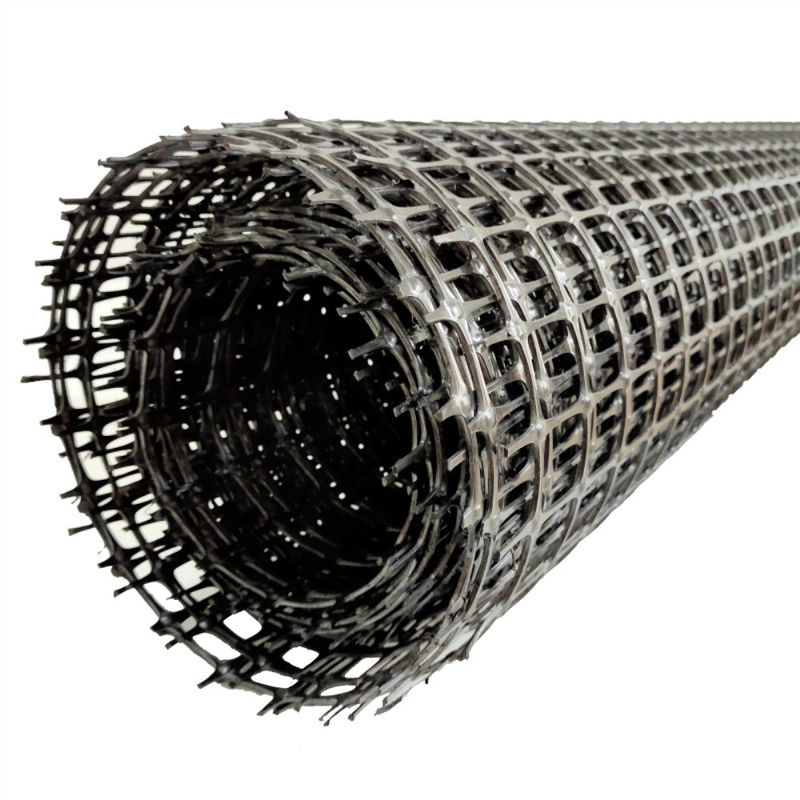

Polypropylene Biaxial HDPE Geogrid Retaining Wall Composite Geogrid 1

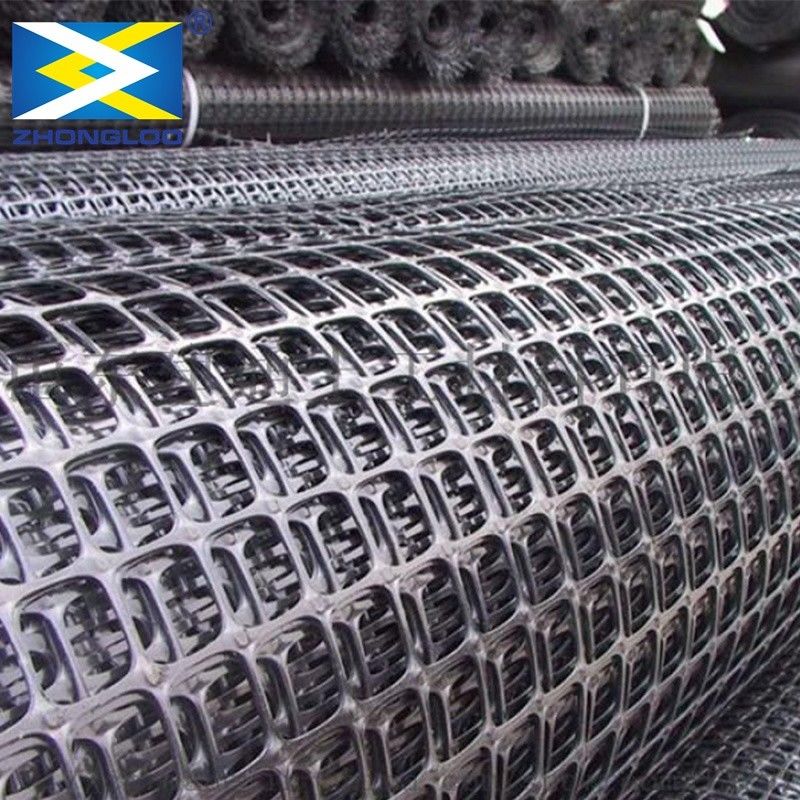

Polypropylene Biaxial HDPE Geogrid Retaining Wall Composite Geogrid 2

FAQ



Q : Are you a factory or trading company?

A : We are a professional manufacturer that specialized in geomembrane, geotextile, composite geomembrane etc with ISO9001 certificate more than 15 years.

Q : Could you send the sample before order confirmation?

A : Yes, we'd love to send a free sample to you for an evaluation if you need.

Q : How about the delivery time?

A : General within 3-7 days after received the deposit.

Q : Can you produce the product according to customers' requirements?

A : Sure, we are professional manufacturer, OEM and ODM are both welcome.
