Honeycomb HDPE Plastic Geocell For Slope Protection Gravel Stabiliser Grid 50mm 100mm

Honeycomb HDPE Plastic Geocell For Slope Protection Gravel Stabiliser Grid 50mm 100mm

Honeycomb geocell for slope protection

50mm geocell for slope protection

50mm gravel stabiliser grid

Place of Origin:


Brand Name:



ISO certificate

Model Number:

Plastic HDPE Geocell

Contact Us

Request A Quote
Product Details
Product Name:
Cellular Confinement System
Corrosion Resistance:
Excellent Corrosion Resistance
Concrete Materials, Soil & Rock
Application Field:
Railway, Highway, Mine, Port, Airport, Slope Prote
Distributing Load, Anti-deforming, Non-skid
Peel Strength Of Welding Point:
Rapid Construction
HS Code:
Product Description

Honeycomb Geoweb 50mm 100mm Plastic HDPE Gravel Stabilizer Grid Paver Slope Soil Protection Geocell Price


Honeycomb Geoweb Description:


HDPE Geocell is made by welding the strengthened HDPE sheets by a high-power ultrasonic. We can produce surfaces like smooth, texture or perforated. It is a structure of three-dimension product.
HDPE Geocell is easily folding and convenient for transportation. When construction, the HDPE geocell can be working as a network and will be launched into a three-dimensional honeycomb grid. HDPE Geocell has strong sidewise restraint and high rate of stiffness.

It is light materials, wear-resistant, chemically stable, photo-oxidation, acid and alkali, suitable for different soils and soil conditions such as desert. Besides, it has High lateral limitations and non-slip, deformation, effectively enhancing subgrade's bearing capacity and distributed loads.


The Advantage of Geocell
- Provides cost effective, long-term slope and channel protection and stabilization.
- Ease in transportation and on-site handling due to collapsible cells.
- Rapid and simple installation conforms to most terrain profiles.
- Ultrasonic welding of cell joints ensures maximum strength.
- Easily dismantled and subsequently re-used.
- Withstands high weight bearing loads.
- Resistant to biological attack and a wide range of soil borne chemicals.



Technical Parameters:
Material Properties Unit         Test Method
Cell Depth mm 75 100 150 200
Polymer Density g/cm3 0.935-0.965 ASTM D 1505
Environmental Stress Crack Resistance Hours >400 ASTM D 5397
Environmental Stress Crack Resistance Hours 6000 ASTM D 1693
Carbon Black Content % 1.5% - 2.0% ASTM D 1603
Nominal Sheet Thickness Before Texturing mm 1.27 -5%,+10% ASTM D 5199
Nominal Sheet Thickness After Texturing mm 1.52-5%,+10% ASTM D 5199
Strip Puncture Resistance N 450 ASTM D 4833
Seam Peel Strength N 1065 1420 2130 2840 EN ISO13426-1B
Seam Efficiency % 100 GRI-GS13
Nominal Expanded Cell Size (width x length) mm 320x287,475x508 etc
Nominal Expanded Panel Size (width x length) m 2.56x8.35, 4.5x5.0, 6.5x4.5, 6.1x2.44


1. High Grade Raw Material to Ensure the Product Performance
Use virgin HDPE material to assure consistent, reproducible, and long-lasting performance.
2. Ultrasonic Wedling to Ensure the Strength of the Seam
Strong weld continually tested to project assurance.
3. Honeycomb Structure to Bearing Heavy Load
Prevent horizontal movement, and increase both shear strength and bearing capacity.
4. Proformed Hole to Allow Water to Get Through
Prevents erosion, and allow water flow.

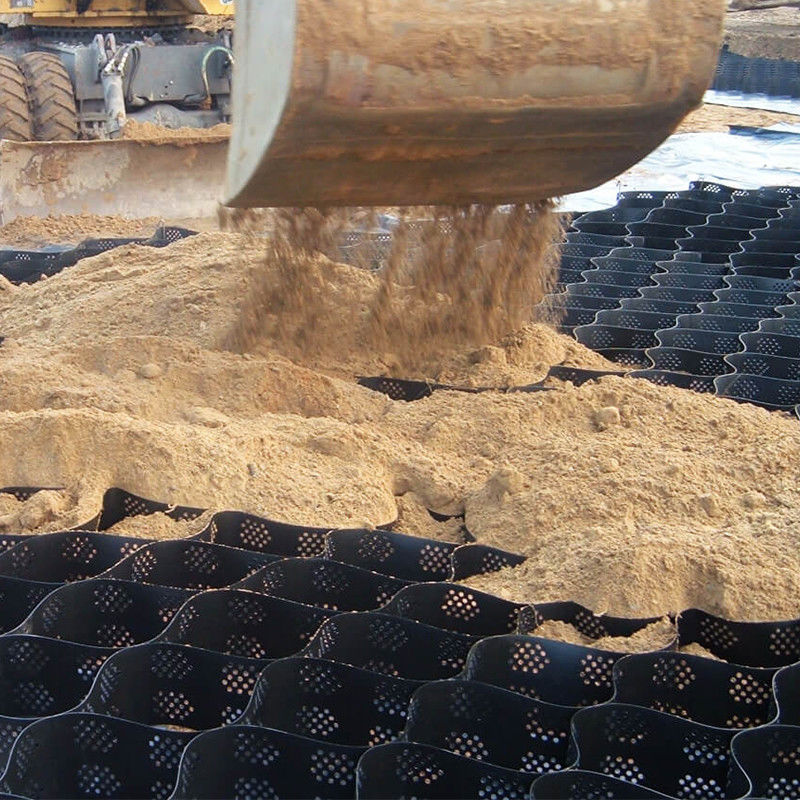

HDPE Geocell Application:

To stable the railway roadbed.
To stable the highway roadbed.
To bear the load of dike or retaining wall.
For the improvement of shallow riverway.
To support the pipeline and sewer foundation.
To prevent landslide. HDPE Geocell work as a heavy-duty hybrid force to retain wall.
To be used as an independent wall, wharf and breakwater.
For the desert, beaches and riverbed, the river bank's regulation, reinforcement.

Honeycomb HDPE Plastic Geocell For Slope Protection Gravel Stabiliser Grid 50mm 100mm 0



Our Services


Quality assurance

1.On a regular basis or as per your request,we entrust national testing agencies to conduct quality inspections

2.Strictly in accordance with the ISO9001-2008 international quality system standard,we monitor and manage the whole process throughout production,quality testing,and measurement to ensure product quality

3. For quality-related construction delay or substandard construction(except for damage or losses due to customer's responsibility or irresistible natural disasters),we have refunding,replacement,and repair services.We will respond to customers' feedbacks on quality issues within 24 hours.

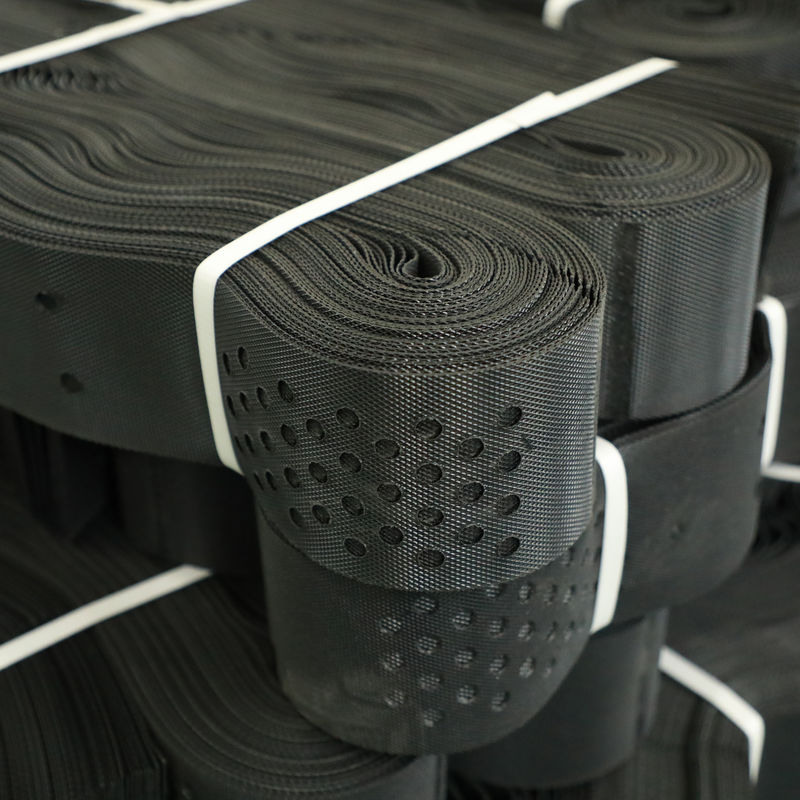

Geocell Packing:

Honeycomb HDPE Plastic Geocell For Slope Protection Gravel Stabiliser Grid 50mm 100mm 1



1. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

2.what can you buy from us?
Geocell,Geogrid,Geomembrane,Geotextile,and other related products.

3. why should you buy from us not from other suppliers?
More than 20 years of production experience

4. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW;

Professional geosynthetics manufacturer
