Bitumen Coating Road Paving Fiberglass Geogrid Asphalt Reinforcement

Bitumen Coating Road Paving Fiberglass Geogrid Asphalt Reinforcement

Bitumen Coating fiberglass geogrid

Asphalt fiberglass geogrid

Fiberglass asphalt reinforcement geogrid

Place of Origin:

China

Brand Name:

zhongloo

Certification:

ISO,SGS

Model Number:

fiberglass geogrid

Contact Us

Request A Quote
Product Details
Raw Material:
Fiberglass
Classification:
Fiberglass Geogrid
Width:
3.6m
Length:
50m
Elongation At Break:
4%
Transport Package:
Black PE Film Or Woven Bags For Outside Packag
Grid Size:
12.7*12.7 / 25.4*25.4 /40*40
Coating:
Polymeric Bitumen
Size:
30-200KN As Customized
Thernal Tolerance:
-100~280 'c
Product Description

Bitumen Coating Road Paving Material Fiberglass Geogrid asphalt reinforcement fiberglass geogrid price

1.Product Description

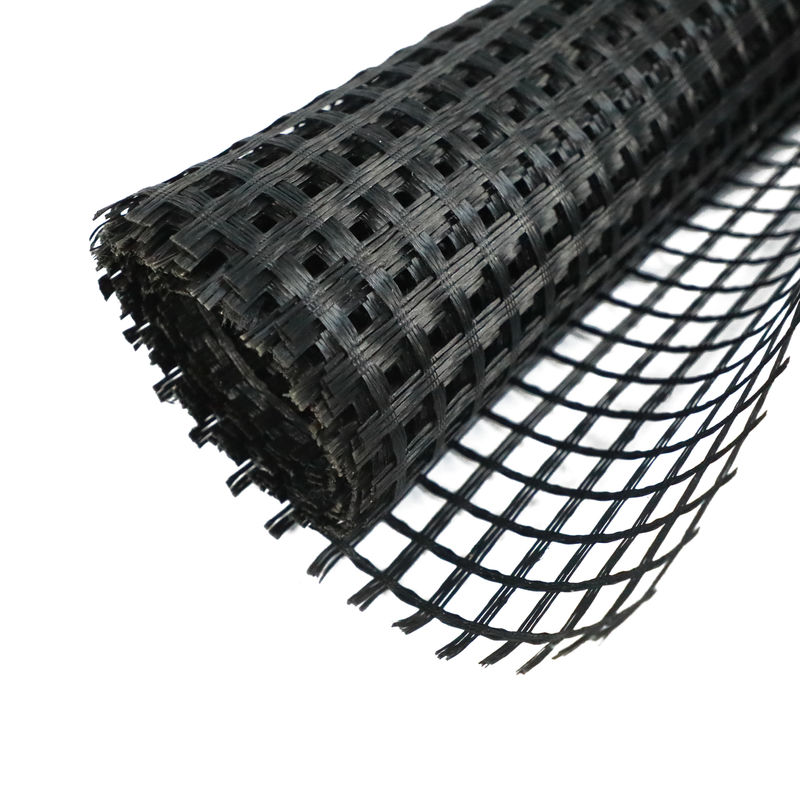

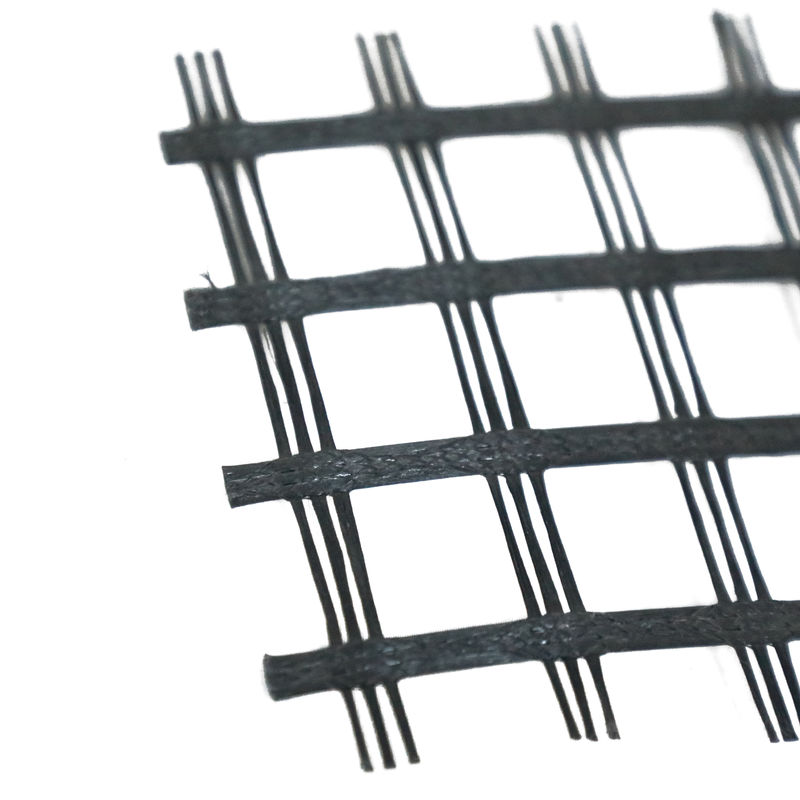

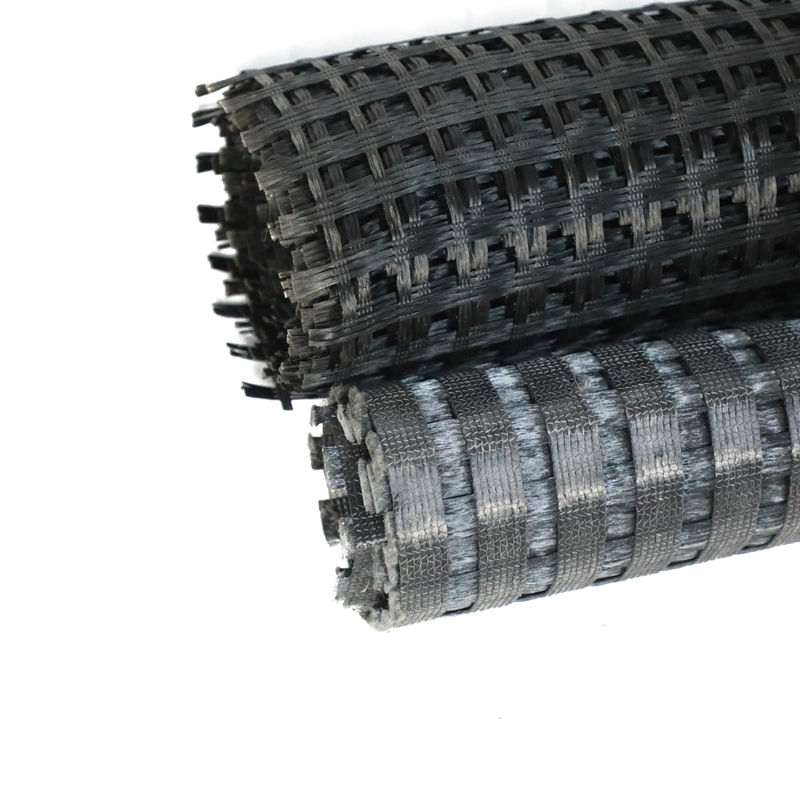

Fiberglass geogrid is knitted by glass fiber filaments and coated with bitumen to provide a good bond with the asphalt layers, can strengthen the asphalt layer, extend the service life ot pavement layers and decrease the occurrence rate of reflective cracking under cyclic traffic load.

Bitumen Coating Road Paving Fiberglass Geogrid Asphalt Reinforcement 0

Bitumen Coating Road Paving Fiberglass Geogrid Asphalt Reinforcement 1



SPECIFICATION EGA3030 EGA5050 EGA8080 EGA100100 EGA120120 EGA150150 EGA200200
Ultimate Strength
(KN/M)
MD ≥30 ≥50 ≥80 ≥100 ≥120 ≥150 ≥200
CMD ≥30 ≥50 ≥80 ≥100 ≥120 ≥150 ≥200
elongation(%) ≤4 ≤4 ≤4 ≤4 ≤4 ≤4 ≤4
Grid Size, mm 12.5-40.00
Width 6 Meter Maximum





2.Product Funtion

* High tensile strength, High tear-resistence. High occlusive force with gravel and soil.

* Low creep deformation, low creep deformation.

* Good anti-aging performance.

Bitumen Coating Road Paving Fiberglass Geogrid Asphalt Reinforcement 2

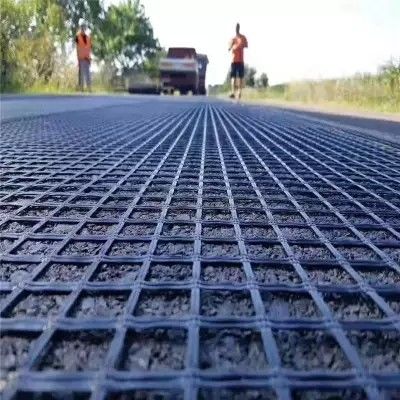

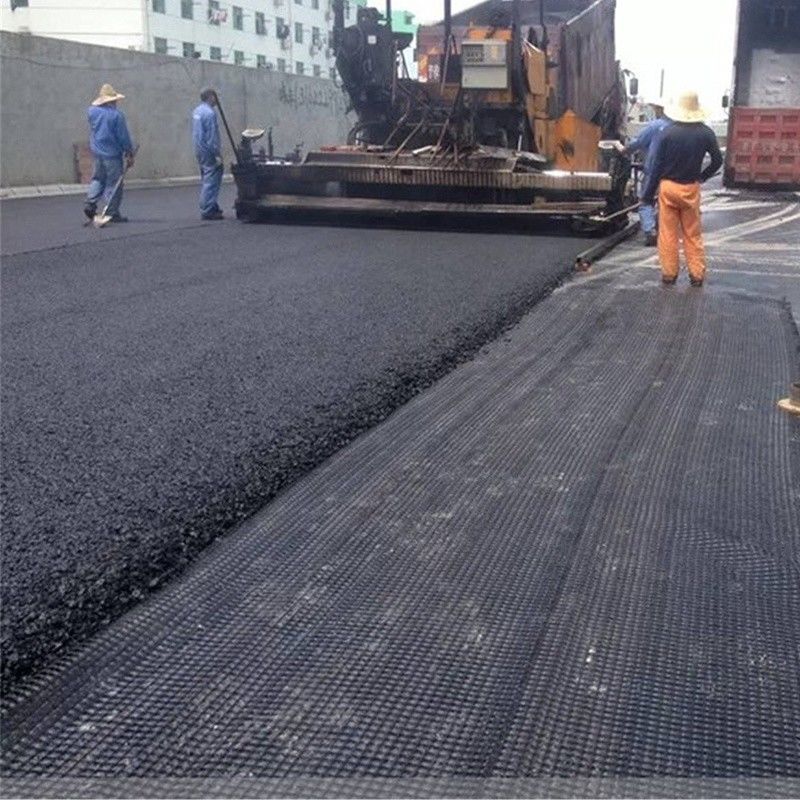

3.Application

1) Maintenance and reinforcement of old asphalt road.

2) Rebuild old cement concrete road into composite road, restrain reflection crack caused by different block contraction.

3) It has widely applied in road renovation and expansion project, prevents cracks along the joint position caused by uneven

sedimentation.

4) It is used for soft sub grade reinforcement. The geogrid will help the water infiltration and soil concretion, restrain

subsidence effectively, and decentralize stress evenly, enhance overall strength of the roadbed.

Bitumen Coating Road Paving Fiberglass Geogrid Asphalt Reinforcement 3
