Anti Deforming Geoweb HDPE Geocell Ground Enhancement Cellular System

Anti Deforming Geoweb HDPE Geocell Ground Enhancement Cellular System

Anti Deforming HDPE Geocell

Geoweb HDPE Geocell

geoweb geocell Cellular System

Place of Origin:

China

Brand Name:

OEM

Certification:

ISO certificate

Model Number:

Plastic HDPE Geocell

Contact Us

Request A Quote
Product Details
After-sales Service:
Support For Quality Traceability
Corrosion Resistance:
Excellent Corrosion Resistance
Filler:
Concrete Materials, Soil & Rock
Peel Strength:
140n/10cm
Function:
Distributing Load, Anti-deforming, Non-skid
Feature:
Corrosion Resistant, Oxidation Resistance, Chemical Stability, Wear-resistant
Installation:
Rapid Construction
Transport Package:
Custom Packaging
Product Description

Ground Enhancement Cellular System Gravel Grid Driveway Gravel Stabilizer HDPE Geo Cell Geocell





Driveway Gravel Stabilizer HDPE Geocell  Description:

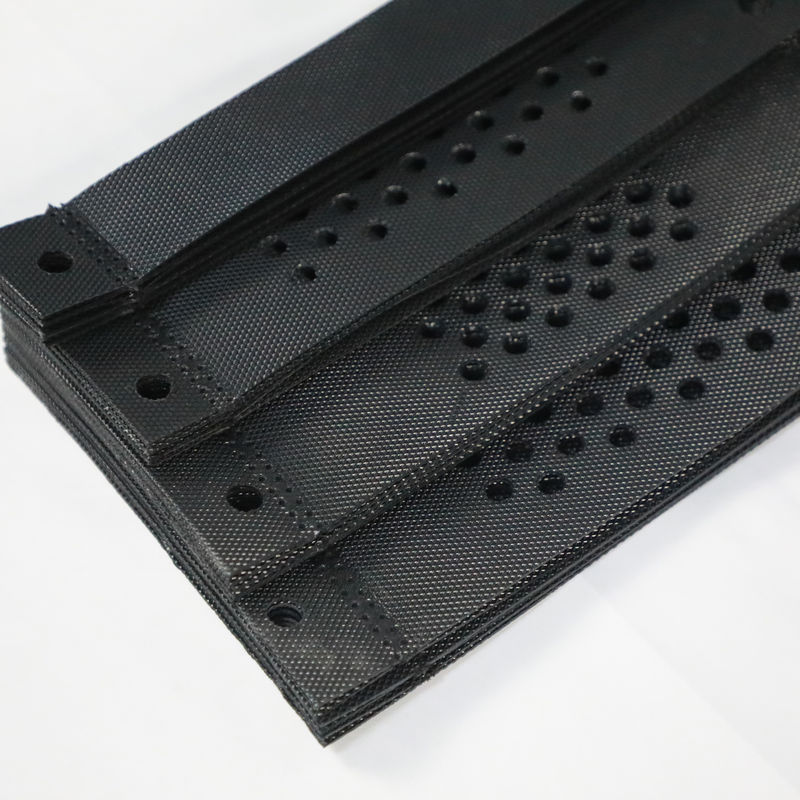

Plastic HDPE geocell is three dimensional, honeycomb like structures manufactured from high density polyethylene and jointly welded by ultrasonic technique. It is flexible to fold during the transport and installation on construction site. The geocell nets will be filled with soils, granular, cements or other on-site infill materials when stretched into web structures, which has powerful and rigid confinement in the lateral and vertical sides.



HDPE plastic honeycomb hdpe geocell gravel grid Features:
1) Light material , resistant to wear , stable in chemical properties , anti-aging , resistant to acids and alkalis, applicable to different soil and desert and other geological conditions .
2)High limit on lateral direction , anti-skidding , anti-deformation , effectively enhance the supporting ability and scattered load function of roadbed .
3)High carrying capacity and good dynamic performance and high erosion ability .
4)The geometry size can be changed to meet different needs of the project , such as height and welding distance
5)Retractable and small loading volume , convenient joint , speed construction .
6)Local material can be used during construction , reduce the construction cost , easy to be transported after folding together.





Technical Parameters:
Material Properties Unit         Test Method
Cell Depth mm 75 100 150 200
Polymer Density g/cm3 0.935-0.965 ASTM D 1505
Environmental Stress Crack Resistance Hours >400 ASTM D 5397
Environmental Stress Crack Resistance Hours 6000 ASTM D 1693
Carbon Black Content % 1.5% - 2.0% ASTM D 1603
Nominal Sheet Thickness Before Texturing mm 1.27 -5%,+10% ASTM D 5199
Nominal Sheet Thickness After Texturing mm 1.52-5%,+10% ASTM D 5199
Strip Puncture Resistance N 450 ASTM D 4833
Seam Peel Strength N 1065 1420 2130 2840 EN ISO13426-1B
Seam Efficiency % 100 GRI-GS13
Nominal Expanded Cell Size (width x length) mm 320x287,475x508 etc
Nominal Expanded Panel Size (width x length) m 2.56x8.35, 4.5x5.0, 6.5x4.5, 6.1x2.44



FEATURES:
1. High Grade Raw Material to Ensure the Product Performance
Use virgin HDPE material to assure consistent, reproducible, and long-lasting performance.
2. Ultrasonic Wedling to Ensure the Strength of the Seam
Strong weld continually tested to project assurance.
3. Honeycomb Structure to Bearing Heavy Load
Prevent horizontal movement, and increase both shear strength and bearing capacity.
4. Proformed Hole to Allow Water to Get Through
Prevents erosion, and allow water flow.

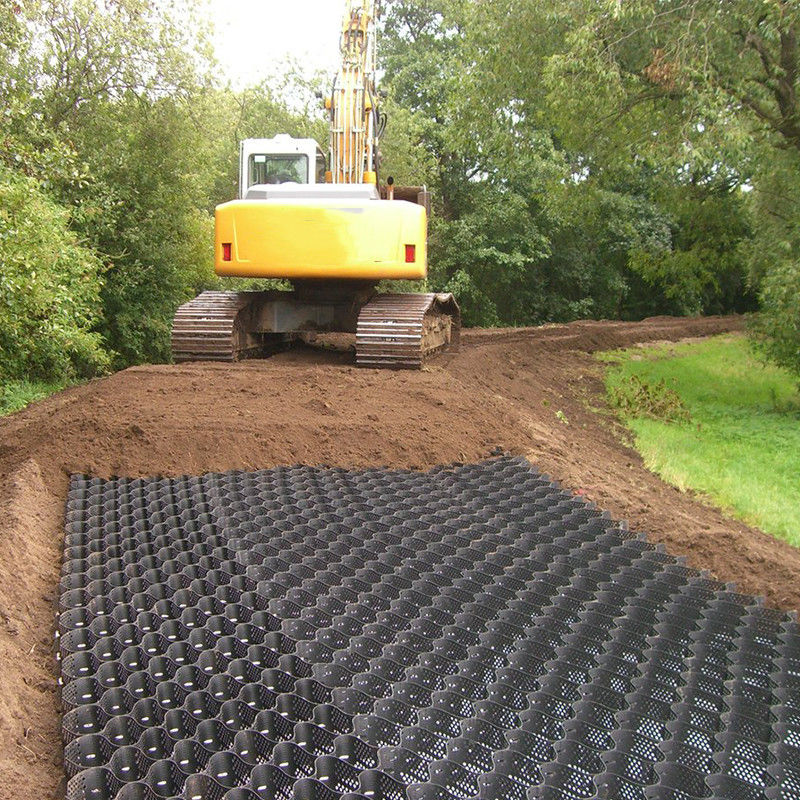

HDPE Geocell Application:

To stable the railway roadbed.
To stable the highway roadbed.
To bear the load of dike or retaining wall.
For the improvement of shallow riverway.
To support the pipeline and sewer foundation.
To prevent landslide. HDPE Geocell work as a heavy-duty hybrid force to retain wall.
To be used as an independent wall, wharf and breakwater.
For the desert, beaches and riverbed, the river bank's regulation, reinforcement.

Anti Deforming Geoweb HDPE Geocell Ground Enhancement Cellular System 0

Geocell Packing:

Anti Deforming Geoweb HDPE Geocell Ground Enhancement Cellular System 1



FAQ

1. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

2.what can you buy from us?
Geocell,Geogrid,Geomembrane,Geotextile,and other related products.

3. why should you buy from us not from other suppliers?
More than 20 years of production experience

4. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW;
