Subgrade HDPE Driveway Gravel Stabilizer Mat Geocell for Road Construction

Subgrade HDPE Driveway Gravel Stabilizer Mat Geocell for Road Construction

Subgrade driveway gravel stabilizer

driveway gravel stabilizer Geocell

gravel stabilizer mat Geocell

Place of Origin:

China

Brand Name:

OEM

Certification:

ISO certificate

Model Number:

Plastic HDPE Geocell

Contact Us

Request A Quote
Product Details
After-sales Service:
Support For Quality Traceability
Corrosion Resistance:
Excellent Corrosion Resistance
Filler:
Concrete Materials, Soil & Rock
Peel Strength:
140n/10cm
Function:
Distributing Load, Anti-deforming, Non-skid
Feature:
Corrosion Resistant, Oxidation Resistance, Chemical Stability, Wear-resistant
Application Of Geocell:
Road Construction Subgrade Stabilization And Load Support
Transport Package:
Plastic Packing Belts
Product Description

Road Construction Subgrade Stabilization And Load Support HDPE Geocell





Road Construction Subgrade Stabilization and Load Support HDPE Geocell  Description:

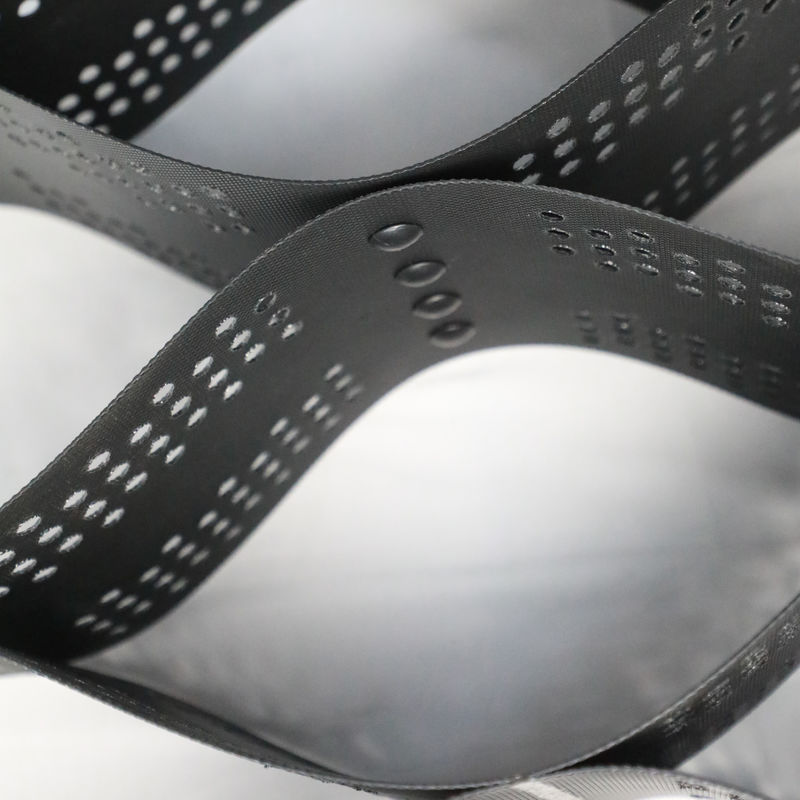

HDPE Geocell is made of a new type of high strength geosynthetics, which is popular with both domestic and abroad, in accordance with ASTM implemenation of the standards, which welding the strengthened HDPE sheets by the high-power ultrasonic and forming to be a structure of three-dimensional reticular formation. Easily folding and convenient for transportation. When be in construction,the geocell can be pull into a network and launched into a three-dimensional honeycomb grid.As it filled in sol,macadam,concrete or other granular materials,constituted to be a construction which has strong sidewise restraint and high rate of stiffness.



HDPE plastic honeycomb hdpe geocell gravel grid Features:
1) Light material , resistant to wear , stable in chemical properties , anti-aging , resistant to acids and alkalis, applicable to different soil and desert and other geological conditions .
2)High limit on lateral direction , anti-skidding , anti-deformation , effectively enhance the supporting ability and scattered load function of roadbed .
3)High carrying capacity and good dynamic performance and high erosion ability .
4)The geometry size can be changed to meet different needs of the project , such as height and welding distance
5)Retractable and small loading volume , convenient joint , speed construction .
6)Local material can be used during construction , reduce the construction cost , easy to be transported after folding together.





Technical Parameters:
Material Properties Unit         Test Method
Cell Depth mm 75 100 150 200
Polymer Density g/cm3 0.935-0.965 ASTM D 1505
Environmental Stress Crack Resistance Hours >400 ASTM D 5397
Environmental Stress Crack Resistance Hours 6000 ASTM D 1693
Carbon Black Content % 1.5% - 2.0% ASTM D 1603
Nominal Sheet Thickness Before Texturing mm 1.27 -5%,+10% ASTM D 5199
Nominal Sheet Thickness After Texturing mm 1.52-5%,+10% ASTM D 5199
Strip Puncture Resistance N 450 ASTM D 4833
Seam Peel Strength N 1065 1420 2130 2840 EN ISO13426-1B
Seam Efficiency % 100 GRI-GS13
Nominal Expanded Cell Size (width x length) mm 320x287,475x508 etc
Nominal Expanded Panel Size (width x length) m 2.56x8.35, 4.5x5.0, 6.5x4.5, 6.1x2.44



FEATURES:
1. High Grade Raw Material to Ensure the Product Performance
Use virgin HDPE material to assure consistent, reproducible, and long-lasting performance.
2. Ultrasonic Wedling to Ensure the Strength of the Seam
Strong weld continually tested to project assurance.
3. Honeycomb Structure to Bearing Heavy Load
Prevent horizontal movement, and increase both shear strength and bearing capacity.
4. Proformed Hole to Allow Water to Get Through
Prevents erosion, and allow water flow.





HDPE Geocell Application:

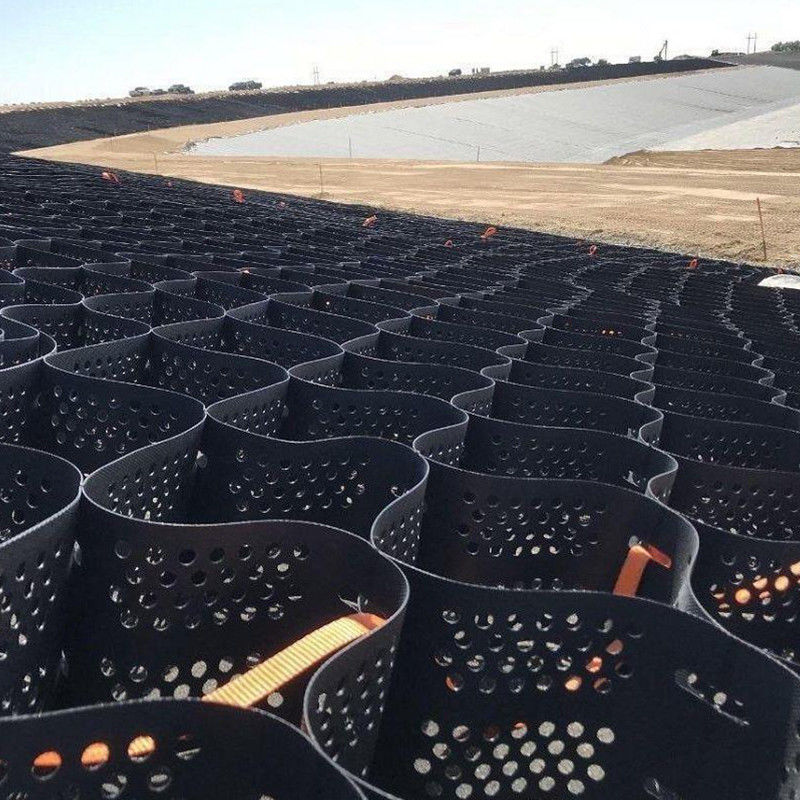

Gruound Stabilisation
Cellular Confinement Systems strengthen the aggregate infill, thereby simultaneously enabling the use of poorly graded inferior
material for infill as well as reducing the structural support layer thickness.Typical stabilisation applications include reinforcement of base and subbase layers in flexible pavements, including: roads, railway substructure and ballast confinement;
working platforms in intermodal ports; airport runways.













Subgrade HDPE Driveway Gravel Stabilizer Mat Geocell for Road Construction 0



















Subgrade HDPE Driveway Gravel Stabilizer Mat Geocell for Road Construction 1
Slope Pretection
The three-dimensional lateral confinement of Cellular Confinement Systems along with anchoring techniques ensures the long-term stability of slopes using vegetated topsoil, aggregate or concrete surfacing



Retaining Wall
Cellular Confinement Systems provide steep vertical mechanically stabilized earth structures (either gravity or reinforced walls) for steep faces, walls and irregular topography
Subgrade HDPE Driveway Gravel Stabilizer Mat Geocell for Road Construction 2



Geocell Packing:

Subgrade HDPE Driveway Gravel Stabilizer Mat Geocell for Road Construction 3



FAQ

1. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

2.what can you buy from us?
Geocell,Geogrid,Geomembrane,Geotextile,and other related products.

3. why should you buy from us not from other suppliers?
More than 20 years of production experience

4. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW;
