Cellular Confinement System Price Gravel Stabilizer Grid HDPE Geoceldas Price 150mm HDPE Geocell Price
HDPE Geoceldas Description:

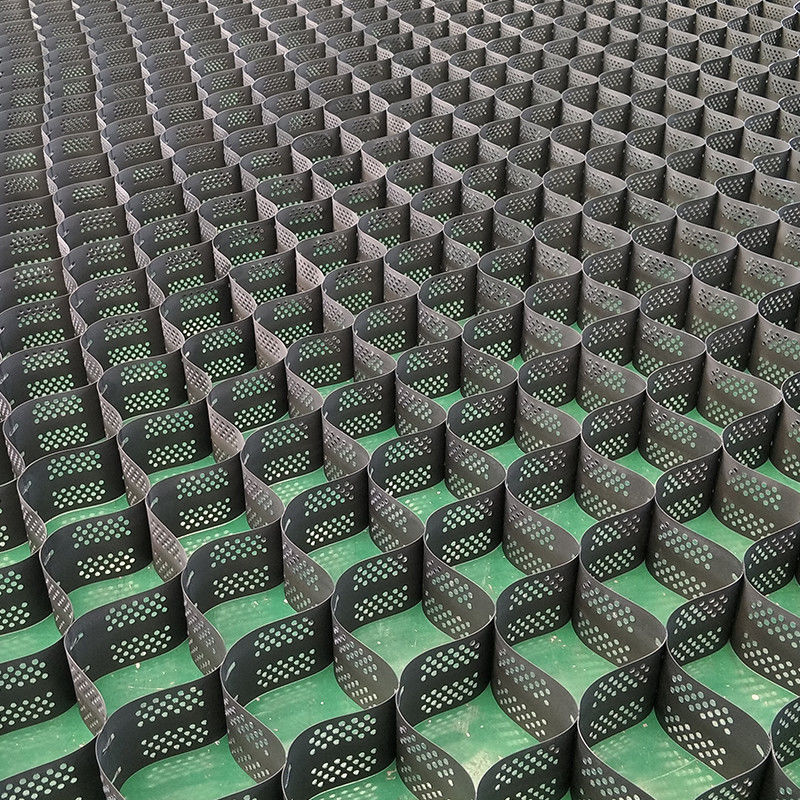

Plastic HDPE geocell is three dimensional, honeycomb like structures manufactured from high density polyethylene and jointly welded by ultrasonic technique. It is flexible to fold during the transport and installation on construction site. The geocell nets will be filled with soils, granular, cements or other on-site infill materials when stretched into web structures, which has powerful and rigid confinement in the lateral and vertical sides.
HDPE plastic honeycomb hdpe geocell gravel grid Features:
1) Light material , resistant to wear , stable in chemical properties , anti-aging , resistant to acids and alkalis, applicable to different soil and desert and other geological conditions .
2)High limit on lateral direction , anti-skidding , anti-deformation , effectively enhance the supporting ability and scattered load function of roadbed .
3)High carrying capacity and good dynamic performance and high erosion ability .
4)The geometry size can be changed to meet different needs of the project , such as height and welding distance
5)Retractable and small loading volume , convenient joint , speed construction .
6)Local material can be used during construction , reduce the construction cost , easy to be transported after folding together.
| Material Properties | Unit | Test Method | |||||
| Cell Depth | mm | 75 | 100 | 150 | 200 | ||
| Polymer Density | g/cm3 | 0.935-0.965 | ASTM D 1505 | ||||
| Environmental Stress Crack Resistance | Hours | >400 | ASTM D 5397 | ||||
| Environmental Stress Crack Resistance | Hours | 6000 | ASTM D 1693 | ||||
| Carbon Black Content | % | 1.5% - 2.0% | ASTM D 1603 | ||||
| Nominal Sheet Thickness Before Texturing | mm | 1.27 -5%,+10% | ASTM D 5199 | ||||
| Nominal Sheet Thickness After Texturing | mm | 1.52-5%,+10% | ASTM D 5199 | ||||
| Strip Puncture Resistance | N | 450 | ASTM D 4833 | ||||
| Seam Peel Strength | N | 1065 | 1420 | 2130 | 2840 | EN ISO13426-1B | |
| Seam Efficiency | % | 100 | GRI-GS13 | ||||
| Nominal Expanded Cell Size (width x length) | mm | 320x287,475x508 etc | |||||
| Nominal Expanded Panel Size (width x length) | m | 2.56x8.35, 4.5x5.0, 6.5x4.5, 6.1x2.44 | |||||
FEATURES:
1. High Grade Raw Material to Ensure the Product Performance
Use virgin HDPE material to assure consistent, reproducible, and long-lasting performance.
2. Ultrasonic Wedling to Ensure the Strength of the Seam
Strong weld continually tested to project assurance.
3. Honeycomb Structure to Bearing Heavy Load
Prevent horizontal movement, and increase both shear strength and bearing capacity.
4. Proformed Hole to Allow Water to Get Through
Prevents erosion, and allow water flow.
HDPE Geocell Application:

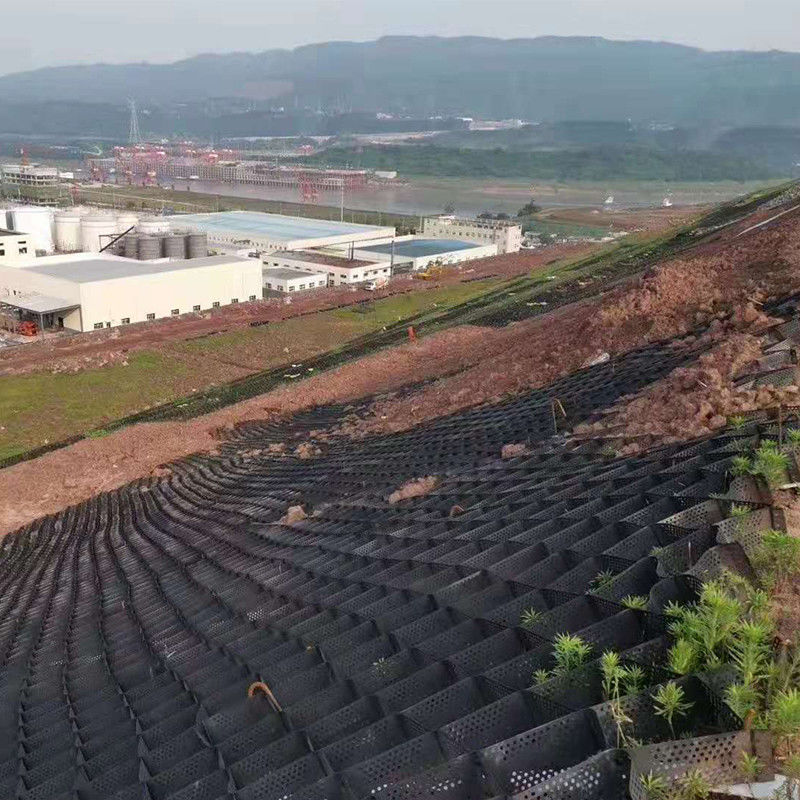

1. Slope Protection
The geocell Slope protection system prevents sliding or sloughing off by providing sufficient weight at the foot and or along the face of the slope.
2. Earth Protection
The geocell earth protection system minimizes and eliminates erosion actions of wind and water on exposed soils.
3. Channel Protection
The geocell channel protection system protects channel slops from soil erosion and confines the infill material that from the channel bed and banks.
4. Ground Stabilization
The Geocell Ground Stabilization System provides cost-effevtive solution to ground stabilization project.
5. Vegetation Retention
The Geocell Vegetation retention system`s horizontal create a natural environment for sustainable vegetation and allow water to collect through the wall fascia, and minimizing run off.
