Plastic Wall Retaining Slope Protection Geocell Gravel Stabilizer Net

Plastic Wall Retaining Slope Protection Geocell Gravel Stabilizer Net

Plastic slope protection geocell

slope protection geocell Net

gravel stabilizer Geocell

Place of Origin:

China

Brand Name:

OEM

Certification:

ISO certificate

Model Number:

Plastic HDPE Geocell

Contact Us

Request A Quote
Product Details
Specification:
Cell Depth: 50mm, 100mm, 150mm, 200mm, 250mm
Corrosion Resistance:
Excellent Corrosion Resistance
Filler:
Concrete Materials, Soil & Rock
Peel Strength:
140n/10cm
Function:
Distributing Load, Anti-deforming, Non-skid
Feature:
Corrosion Resistant, Oxidation Resistance, Chemical Stability, Wear-resistant
Application Of Geocell:
Road Construction Subgrade Stabilization And Load Support
Products Name:
HDPE Geoceldas
Product Description

Plastic Driveway Gravel Grid Soil Stabilization Wall Retaining Geocell for Slope Erosion Controll





Plastic Driveway Gravel Grid geocell  Description:



Geocell is a net-shaped cell structure made from high density polyethylene by welding high intensity thermoplastic sheet, it is flesible to fold during transportation, stretching out and being filled with stone or concrete during service, and fourming into structure with powerful lateral confinement and rigidity.



HDPE plastic honeycomb hdpe geocell gravel grid Features:
1) Light material , resistant to wear , stable in chemical properties , anti-aging , resistant to acids and alkalis, applicable to different soil and desert and other geological conditions .
2)High limit on lateral direction , anti-skidding , anti-deformation , effectively enhance the supporting ability and scattered load function of roadbed .
3)High carrying capacity and good dynamic performance and high erosion ability .
4)The geometry size can be changed to meet different needs of the project , such as height and welding distance
5)Retractable and small loading volume , convenient joint , speed construction .
6)Local material can be used during construction , reduce the construction cost , easy to be transported after folding together.





Technical Parameters:
Material Properties Unit         Test Method
Cell Depth mm 75 100 150 200
Polymer Density g/cm3 0.935-0.965 ASTM D 1505
Environmental Stress Crack Resistance Hours >400 ASTM D 5397
Environmental Stress Crack Resistance Hours 6000 ASTM D 1693
Carbon Black Content % 1.5% - 2.0% ASTM D 1603
Nominal Sheet Thickness Before Texturing mm 1.27 -5%,+10% ASTM D 5199
Nominal Sheet Thickness After Texturing mm 1.52-5%,+10% ASTM D 5199
Strip Puncture Resistance N 450 ASTM D 4833
Seam Peel Strength N 1065 1420 2130 2840 EN ISO13426-1B
Seam Efficiency % 100 GRI-GS13
Nominal Expanded Cell Size (width x length) mm 320x287,475x508 etc
Nominal Expanded Panel Size (width x length) m 2.56x8.35, 4.5x5.0, 6.5x4.5, 6.1x2.44



FEATURES:
1. High Grade Raw Material to Ensure the Product Performance
Use virgin HDPE material to assure consistent, reproducible, and long-lasting performance.
2. Ultrasonic Wedling to Ensure the Strength of the Seam
Strong weld continually tested to project assurance.
3. Honeycomb Structure to Bearing Heavy Load
Prevent horizontal movement, and increase both shear strength and bearing capacity.
4. Proformed Hole to Allow Water to Get Through
Prevents erosion, and allow water flow.





HDPE Geocell Application:

1. Slope Protection
The geocell Slope protection system prevents sliding or sloughing off by providing sufficient weight at the foot and or along the face of the slope.

2. Earth Protection
The geocell earth protection system minimizes and eliminates erosion actions of wind and water on exposed soils.

3. Channel Protection
The geocell channel protection system protects channel slops from soil erosion and confines the infill material that from the channel bed and banks.

4. Ground Stabilization
The Geocell Ground Stabilization System provides cost-effevtive solution to ground stabilization project.

5. Vegetation Retention
The Geocell Vegetation retention system`s horizontal create a natural environment for sustainable vegetation and allow water to collect through the wall fascia, and minimizing run off.

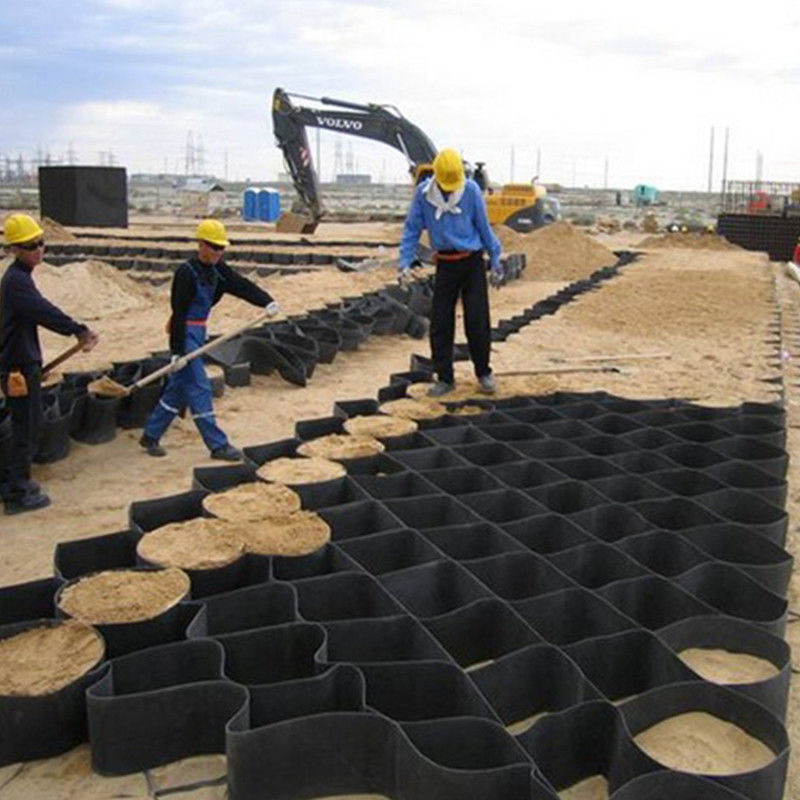

Plastic Wall Retaining Slope Protection Geocell Gravel Stabilizer Net 0
Load Support
Cellular Confinement Systems have been used to improve the performance of both paved and unpaved roads by reinforcing the soil in the subgrade-base interface or within the base course. The effective load distribution of geocell creates a strong,stiff 3D
cellular mattress which can reduce vertical differential settlement into soft subgrades, improves shear strength, and enhances load-bearing capacity, while reducing the amount of aggregate material required to extend the service life of roads.
Slope Pretection

The three-dimensional lateral confinement of Cellular Confinement Systems along with anchoring techniques ensures the long-term
stability of slopes using vegetated topsoil, aggregate or concrete surfacing
Plastic Wall Retaining Slope Protection Geocell Gravel Stabilizer Net 1
Plastic Wall Retaining Slope Protection Geocell Gravel Stabilizer Net 2
Gruound Stabilisation

Cellular Confinement Systems strengthen the aggregate infill, thereby simultaneously enabling the use of poorly graded inferior material for infill as well as reducing the structural support layer thickness.Typical stabilisation applications include
reinforcement of base and subbase layers in flexible pavements, including: roads, railway substructure and ballast confinement; working platforms in intermodal ports; airport runways.
Retaining Wall


Cellular Confinement Systems provide steep vertical mechanically stabilized earth structures (either gravity or reinforced walls) for steep faces, walls and irregular topography
Plastic Wall Retaining Slope Protection Geocell Gravel Stabilizer Net 3




FAQ

1. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

2.what can you buy from us?
Geocell,Geogrid,Geomembrane,Geotextile,and other related products.

3. why should you buy from us not from other suppliers?
More than 20 years of production experience

4. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW;
