Plastic HDPE Geocelda Geocell Road Cellular Confinement System Erosion Control

Plastic HDPE Geocelda Geocell Road Cellular Confinement System Erosion Control

Cellular geocell road

Geocelda geocell road

Geocelda geocell road

Place of Origin:

China

Brand Name:

OEM

Certification:

ISO certificate

Model Number:

Plastic HDPE Geocell

Contact Us

Request A Quote
Product Details
Corrosion Resistance:
Excellent Corrosion Resistance
Product Name:
HDPE Textured Geocell
Description:
Plastic Parking Grass Grid Geocell
Filler:
Concrete Materials, Soil & Rock
Application:
Retaining Wall, Dam, Railway, Highway
Peel Strength Of Welding Point:
1000~1420n/10cm
Function:
Distributing Load, Anti-deforming, Non-skid
Keyword:
Plastic HDPE Geocelda
Product Description

Plastic HDPE Geocelda Geocell Cellular Confinement System Erosion Control For Construction And Slope Protection



Plastic HDPE Geocelda Geocell Cellular Confinement System Description:

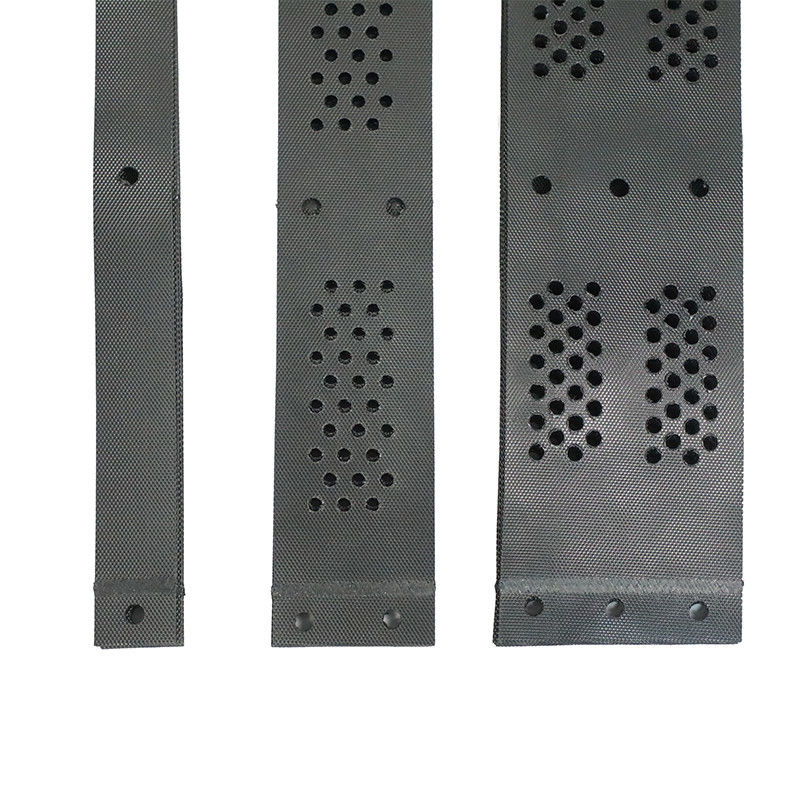

HDPE GEOCELL is a flexible three-dimensional, honeycomb like structures made from high density polyethylene(HDPE) strips which are ultrasonically bonded together to form an extremely strong configuration. Geocell System can be filled with a wide range of material: aggregate, concrete, sand, soil, etc.

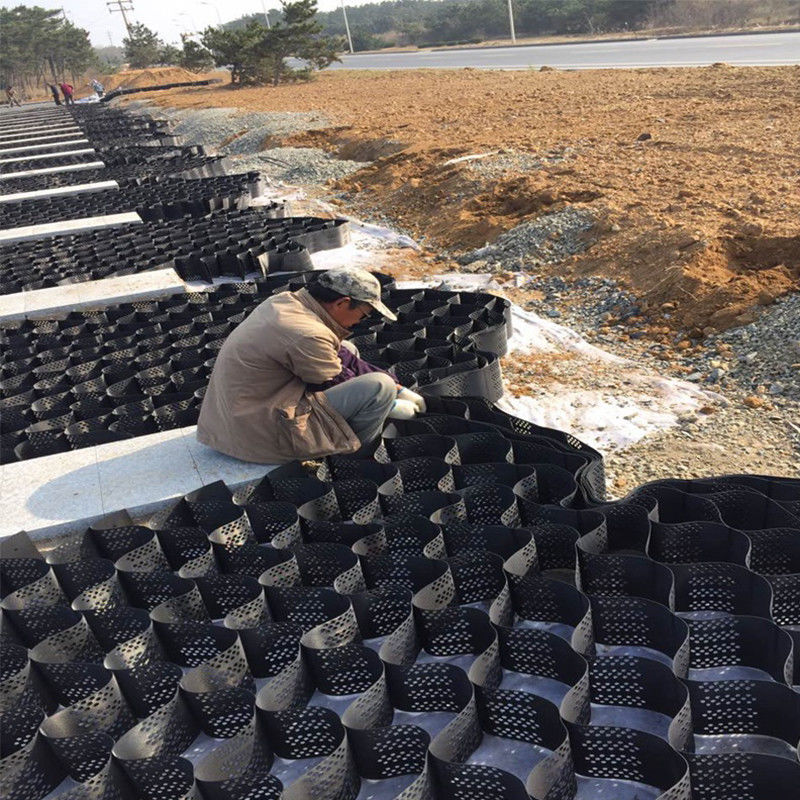

Geocells are efficient and economical for fast-built unpaved roadways and retaining walls, erosion control of slopes, and  storm water control in channels.



WHAT IS THE ADVANTAGES?

Benefits of the Geocell Confinement System:

1). Reduce Fill Required – With the use of Geocell, fill quantity can be reduced by up to 70% while maintaining or improving bearing capacity. This saves time, transport, and material costs.
2). Eliminate Rutting – Prevent the lateral movement of infill. Lower quality fill materials can often be used since they are contained within the cells.
3). Support Heavy Loads – Improve the bearing capacity of subgrade soils and extend the life-cycle of the road.
4). Quick & Simple Installation - Easily installed without specialized equipment or crews.
5). Utilize Local Fill – Most local soils can be used as fill minimizing transportation costs and installation time.
6). Perforated Cells – Allow water to drain freely through permeable aggregates.





Technical Parameters:
Material Properties Unit         Test Method
Cell Depth mm 75 100 150 200
Polymer Density g/cm3 0.935-0.965 ASTM D 1505
Environmental Stress Crack Resistance Hours >400 ASTM D 5397
Environmental Stress Crack Resistance Hours 6000 ASTM D 1693
Carbon Black Content % 1.5% - 2.0% ASTM D 1603
Nominal Sheet Thickness Before Texturing mm 1.27 -5%,+10% ASTM D 5199
Nominal Sheet Thickness After Texturing mm 1.52-5%,+10% ASTM D 5199
Strip Puncture Resistance N 450 ASTM D 4833
Seam Peel Strength N 1065 1420 2130 2840 EN ISO13426-1B
Seam Efficiency % 100 GRI-GS13
Nominal Expanded Cell Size (width x length) mm 320x287,475x508 etc
Nominal Expanded Panel Size (width x length) m 2.56x8.35, 4.5x5.0, 6.5x4.5, 6.1x2.44

WHAT THIS PRODUCTS USED FOR?

1). To stable the roadbed of highway/railway.
2). To bear the load of dyke, retaining wall
3). To improve the watercourse of shallow river
4). To support the pipeline and sewer.
5). To be used as independent wall, wharf and breakwater, etc..
6). To be used for the regulation of the desert, beaches, river bed and river bank

Plastic HDPE Geocelda Geocell Road Cellular Confinement System Erosion Control 0
