Honeycomb Plastic Textured Interlocking Driveway HDPE Geocell Company Ground Grid

Honeycomb Plastic Textured Interlocking Driveway HDPE Geocell Company Ground Grid

Honeycomb HDPE Geocell

Interlocking HDPE Geocell

Honeycomb geocell company

Place of Origin:

China

Brand Name:

OEM

Certification:

ISO certificate

Model Number:

Plastic HDPE Geocell

Contact Us

Request A Quote
Product Details
Corrosion Resistance:
Excellent Corrosion Resistance
Specification:
High-density Polyethylene
Production Capacity:
20000m2/Day
Height:
50/75/100/150/200mm
Surface:
Textured Smooth
Geocell Peel Strength:
140n/10cm
After-sales Service:
Support For Quality Traceability
Hole:
With Hole / Without Hole
Product Description

Honeycomb Plastic Textured Structure Interlocking Hole Ground Gravel Grid Stabilizer Driveway Hdpe Geo Geocell



Honeycomb Plastic HDPE Geocell Description:

Geocell is a net-shaped cell structure made from high density polyethylene by welding high intensity thermoplastic sheet, it is flesible to fold during transportation, stretching out and being filled with stone or concrete during service, and fourming into structure with powerful lateral confinement and rigidity.



Main Features

1. It is flexible in expansion and contraction, transportable and collapsible, and can be tensioned into a mesh during construction. It is filled with loose materials such as soil, gravel, and concrete, forming a structure with strong lateral constraints and high stiffness.
2. Light material, wear-resistant, stable chemical properties, light oxygen aging resistance, acid and alkali resistance, suitable for different soil and desert soil conditions.
3. High lateral restraint and anti slip, anti deformation, effectively enhancing the bearing capacity of the subgrade and dispersing load.
4. Changing the geometric dimensions such as geocell height and welding distance can meet different engineering needs.
5. Flexible expansion and small transportation volume; Convenient connection and fast construction speed.





Technical Parameters:
Material Properties Unit         Test Method
Cell Depth mm 75 100 150 200
Polymer Density g/cm3 0.935-0.965 ASTM D 1505
Environmental Stress Crack Resistance Hours >400 ASTM D 5397
Environmental Stress Crack Resistance Hours 6000 ASTM D 1693
Carbon Black Content % 1.5% - 2.0% ASTM D 1603
Nominal Sheet Thickness Before Texturing mm 1.27 -5%,+10% ASTM D 5199
Nominal Sheet Thickness After Texturing mm 1.52-5%,+10% ASTM D 5199
Strip Puncture Resistance N 450 ASTM D 4833
Seam Peel Strength N 1065 1420 2130 2840 EN ISO13426-1B
Seam Efficiency % 100 GRI-GS13
Nominal Expanded Cell Size (width x length) mm 320x287,475x508 etc
Nominal Expanded Panel Size (width x length) m 2.56x8.35, 4.5x5.0, 6.5x4.5, 6.1x2.44


Applications:

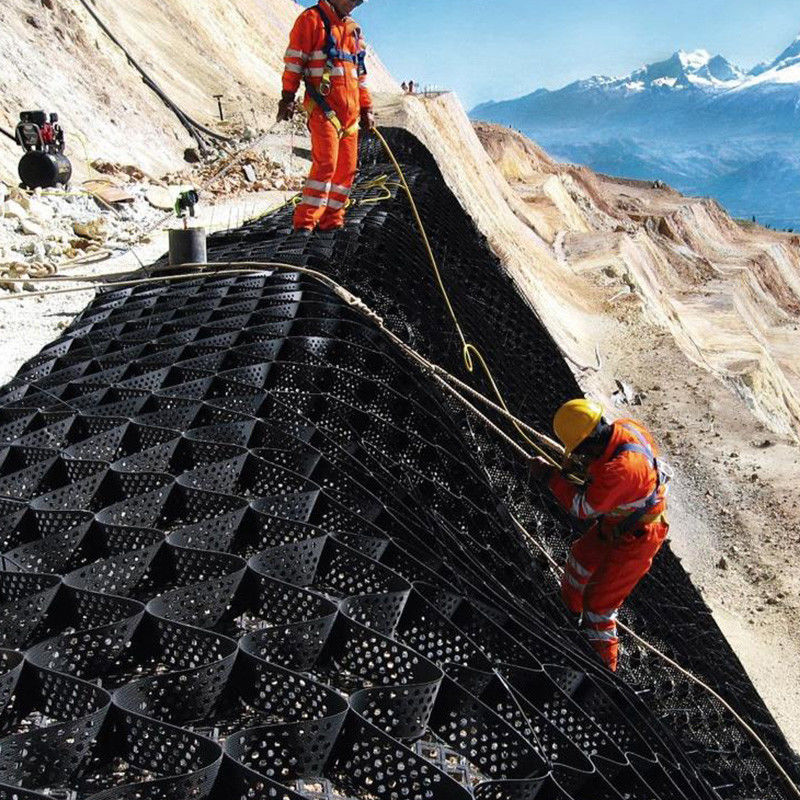

Plastic geocell grid gravel for road
1. Used to stabilize highway and railway subgrade.
2. It is used for embankment and shallow river regulation that bear the load of gravity.
3. A composite retaining wall used to prevent landslides and gravity loading.
4. When encountering soft ground, the use of geocells can greatly reduce the construction labor intensity, reduce the thickness of the roadbed, and achieve fast construction speed and good performance, greatly reducing project costs.



Honeycomb Plastic Textured Interlocking Driveway HDPE Geocell Company Ground Grid 0



FAQ

1. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

2.what can you buy from us?
Geocell,Geogrid,Geomembrane,Geotextile,and other related products.

3. why should you buy from us not from other suppliers?
More than 20 years of production experience

4. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW;



Professional geosynthetics manufacturer
Anhui Zhonglu Engineer Materials Co., Ltd
