3D HDPE Geocell Cellular Confinement Systems For Retaining Wall

3D HDPE Geocell Cellular Confinement Systems For Retaining Wall

3D HDPE Geocell

Cellular HDPE Geocell

HDPE cellular confinement systems

Place of Origin:

China

Brand Name:

OEM

Certification:

ISO certificate

Model Number:

Plastic HDPE Geocell

Contact Us

Request A Quote
Product Details
Product Name:
3D Cellular Confinement System Geocell
Corrosion Resistance:
Excellent Corrosion Resistance
Filler:
Concrete Materials, Soil & Rock
Application Field:
Railway, Highway, Mine, Port, Airport, Slope Prote
Function:
Distributing Load, Anti-deforming, Non-skid
Peel Strength Of Welding Point:
1000~1420n/10cm
Installation:
Retaining Wall Gravel Grid Driveway Paver Slope Protection Rapid Construction
Production Capacity:
20000 Square Meter Per Day
Product Description

3D Cellular Confinement System Geocell For Retaining Wall Gravel Grid Driveway Paver Slope Protection



3D Cellular Confinement System Geocell Description:



Geocell is reinforced by high intensity HDPE broadband, after the powerful welding face to become a reticular lattice room structure. It retractile,transportation can shrink fold super to,when using ,open and filling earth-rock,or concrete materials,constitute has strong lateral restrictions and taking degrees structures ,it can be used as a cushion,dealing with weak foundation bearing capacity , also can be laid on slope surface slope protection structure constitute, still can be used to build retaining structures,etc



Advantages

• Provides cost effective, long-term slope and channel protection and stabilization
• Easy in transportation and on site handling due to collapsible cells
• Rapid and simple installation conforms to most terrain profiles
• Ultrasonic welding of cell joints ensures maximum strength
• Easily dismantled and subsequently re-used
• Withstands high weight bearing loads
• Resistant to biological attack and a wide range of soil borne chemicals





Technical Parameters:
Material Properties Unit         Test Method
Cell Depth mm 75 100 150 200
Polymer Density g/cm3 0.935-0.965 ASTM D 1505
Environmental Stress Crack Resistance Hours >400 ASTM D 5397
Environmental Stress Crack Resistance Hours 6000 ASTM D 1693
Carbon Black Content % 1.5% - 2.0% ASTM D 1603
Nominal Sheet Thickness Before Texturing mm 1.27 -5%,+10% ASTM D 5199
Nominal Sheet Thickness After Texturing mm 1.52-5%,+10% ASTM D 5199
Strip Puncture Resistance N 450 ASTM D 4833
Seam Peel Strength N 1065 1420 2130 2840 EN ISO13426-1B
Seam Efficiency % 100 GRI-GS13
Nominal Expanded Cell Size (width x length) mm 320x287,475x508 etc
Nominal Expanded Panel Size (width x length) m 2.56x8.35, 4.5x5.0, 6.5x4.5, 6.1x2.44



FEATURES:
1. High Grade Raw Material to Ensure the Product Performance
Use virgin HDPE material to assure consistent, reproducible, and long-lasting performance.
2. Ultrasonic Wedling to Ensure the Strength of the Seam
Strong weld continually tested to project assurance.
3. Honeycomb Structure to Bearing Heavy Load
Prevent horizontal movement, and increase both shear strength and bearing capacity.
4. Proformed Hole to Allow Water to Get Through
Prevents erosion, and allow water flow.



Geocell Applications

Perforated Road Construction Geocell

A.Solid railway roadbed

B.Highway's soft foundation

C.Withstand truck force embankments,retaining wall

D.Running shallow river

E.Pipeline and the sewer's support structure

F.To prevent landslides and load force by the hybrid wall

G.To use independent wall ,wharf ,breakwater and so on

H.To govern the desert, beaches and the riverbed , banks

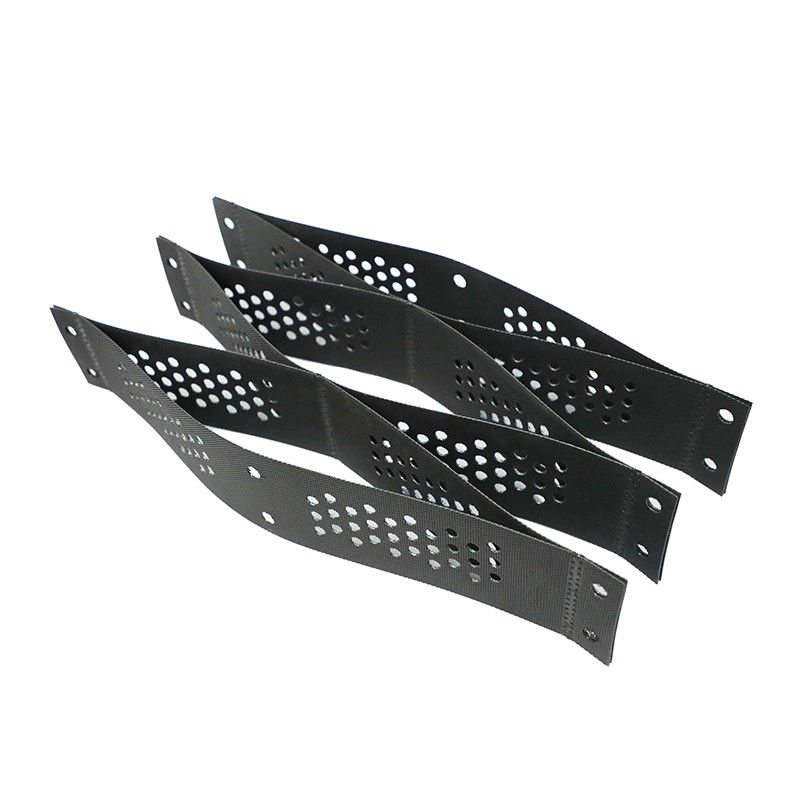

3D HDPE Geocell Cellular Confinement Systems For Retaining Wall 0





Our Services



Quality assurance

1.On a regular basis or as per your request,we entrust national testing agencies to conduct quality inspections

2.Strictly in accordance with the ISO9001-2008 international quality system standard,we monitor and manage the whole process throughout production,quality testing,and measurement to ensure product quality

3. For quality-related construction delay or substandard construction(except for damage or losses due to customer's responsibility or irresistible natural disasters),we have refunding,replacement,and repair services.We will respond to customers' feedbacks on quality issues within 24 hours.

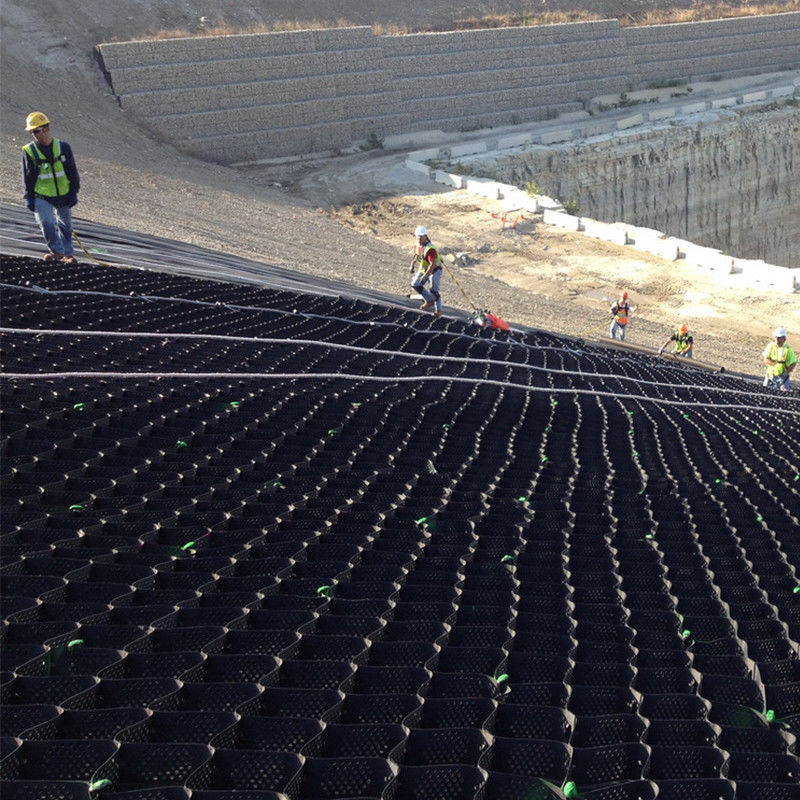

3D HDPE Geocell Cellular Confinement Systems For Retaining Wall 1



FAQ

1. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

2.what can you buy from us?
Geocell,Geogrid,Geomembrane,Geotextile,and other related products.

3. why should you buy from us not from other suppliers?
More than 20 years of production experience

4. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW;



Professional geosynthetics manufacturer
