50-300mm HDPE Geocellular Confinement Systems Geocell For Ground Reinforcement

50-300mm HDPE Geocellular Confinement Systems Geocell For Ground Reinforcement

HDPE geocellular confinement systems

geocellular confinement systems Geocell

HDPE geo geocell

Place of Origin:

China

Brand Name:

OEM

Certification:

ISO certificate

Model Number:

Plastic HDPE Geocell

Contact Us

Request A Quote
Product Details
Product Name:
HDPE Geocell Systerm
Filler:
Concrete Materials, Soil & Rock
Length&Width:
Customized
Application Field:
Railway, Highway, Mine, Port, Airport, Slope Prote
Production Capacity:
600tons/Month
Peel Strength Of Welding Point:
1000~1420n/10cm
Installation:
Rapid Construction
Function:
Distributing Load, Anti-deforming, Non-skid
Product Description

50-300mm Stabilizer Gravel Grid HDPE Geocell Systerm For Ground Reinforcement Manufacture Price



HDPE Geocell Systerm Description:

Plastic HDPE geocell is three dimensional, honeycomb like structures manufactured from high density polyethylene and jointly welded by ultrasonic technique. It is flexible to fold during the transport and installation on construction site. The geocell nets will be filled with soils, granular, cements or other on-site infill materials when stretched into web structures, which has powerful and rigid confinement in the lateral and vertical sides.



The Advantage of Geocell
1,Virgin HDPE basic with Unique Formula.
2,Tensile Strength reaches 33000 kN/m² (33 MPa)
3,Seam Peel Strength above 16 kN/m (USACE GL-86-19); Split Strength above 28 kN/m (EN ISO13426-1 Method C).
4,Various weld spacing available from 220mm to 1600mm
5,Various strip height available from 25mm to maximum 300mm
6,Maximum strip length reaches 8m, expanded width reaches 6m.
7,Reduce construction thickness, improve load and bearing capacity, long life span, save maintenance cost
8,Easy to transport, all weather installation with high construction speed.
9,Local infill materials available, ungraded or recycled materials are acceptable, reduce construction cost.





Technical Parameters:
Material Properties Unit         Test Method
Cell Depth mm 75 100 150 200
Polymer Density g/cm3 0.935-0.965 ASTM D 1505
Environmental Stress Crack Resistance Hours >400 ASTM D 5397
Environmental Stress Crack Resistance Hours 6000 ASTM D 1693
Carbon Black Content % 1.5% - 2.0% ASTM D 1603
Nominal Sheet Thickness Before Texturing mm 1.27 -5%,+10% ASTM D 5199
Nominal Sheet Thickness After Texturing mm 1.52-5%,+10% ASTM D 5199
Strip Puncture Resistance N 450 ASTM D 4833
Seam Peel Strength N 1065 1420 2130 2840 EN ISO13426-1B
Seam Efficiency % 100 GRI-GS13
Nominal Expanded Cell Size (width x length) mm 320x287,475x508 etc
Nominal Expanded Panel Size (width x length) m 2.56x8.35, 4.5x5.0, 6.5x4.5, 6.1x2.44



FEATURES:
1. High Grade Raw Material to Ensure the Product Performance
Use virgin HDPE material to assure consistent, reproducible, and long-lasting performance.
2. Ultrasonic Wedling to Ensure the Strength of the Seam
Strong weld continually tested to project assurance.
3. Honeycomb Structure to Bearing Heavy Load
Prevent horizontal movement, and increase both shear strength and bearing capacity.
4. Proformed Hole to Allow Water to Get Through
Prevents erosion, and allow water flow.

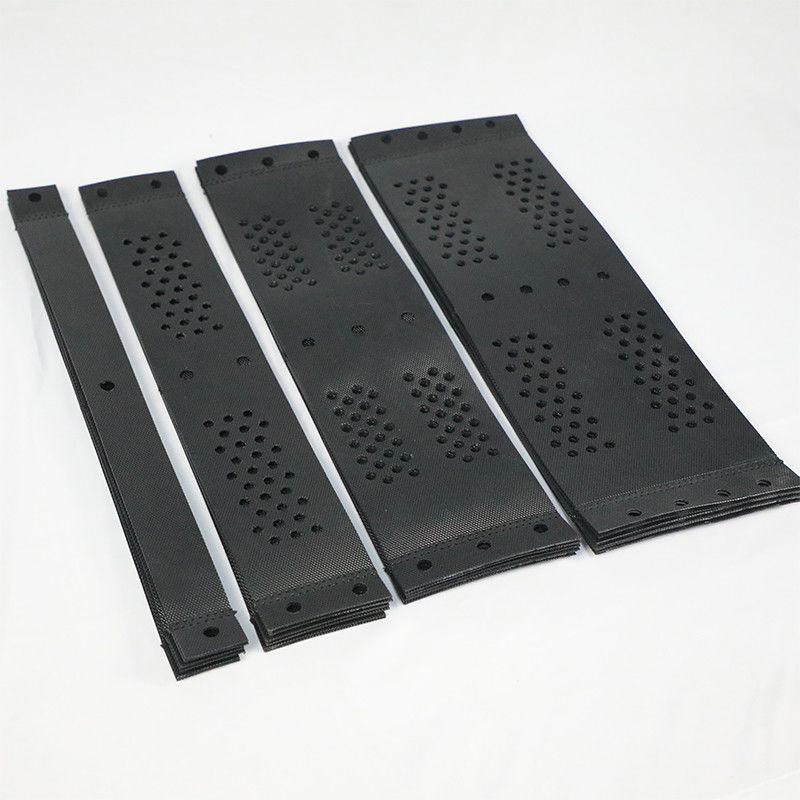

50-300mm HDPE Geocellular Confinement Systems Geocell For Ground Reinforcement 0

WHAT THIS PRODUCTS USED FOR?

1). To stable the roadbed of highway/railway.
2). To bear the load of dyke, retaining wall
3). To improve the watercourse of shallow river
4). To support the pipeline and sewer.
5). To be used as independent wall, wharf and breakwater, etc..
6). To be used for the regulation of the desert, beaches, river bed and river bank

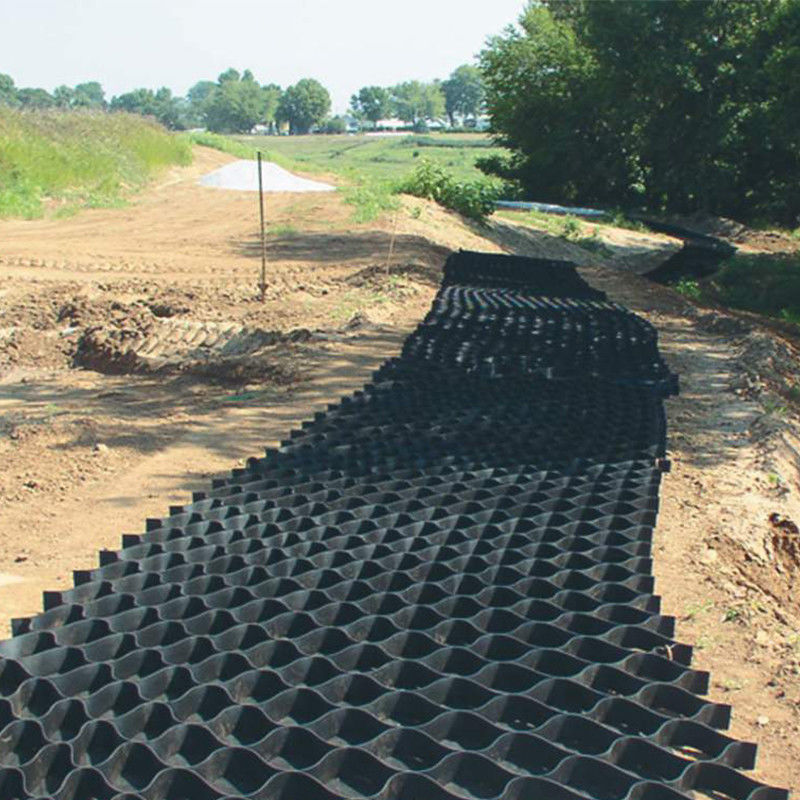

50-300mm HDPE Geocellular Confinement Systems Geocell For Ground Reinforcement 1



Our Services



Quality assurance

1.On a regular basis or as per your request,we entrust national testing agencies to conduct quality inspections

2.Strictly in accordance with the ISO9001-2008 international quality system standard,we monitor and manage the whole process throughout production,quality testing,and measurement to ensure product quality

3. For quality-related construction delay or substandard construction(except for damage or losses due to customer's responsibility or irresistible natural disasters),we have refunding,replacement,and repair services.We will respond to customers' feedbacks on quality issues within 24 hours.







FAQ

1. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

2.what can you buy from us?
Geocell,Geogrid,Geomembrane,Geotextile,and other related products.

3. why should you buy from us not from other suppliers?
More than 20 years of production experience

4. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW;
