Woven PP Geotextile Tube Geotube for Sewage Disposal
Product Description

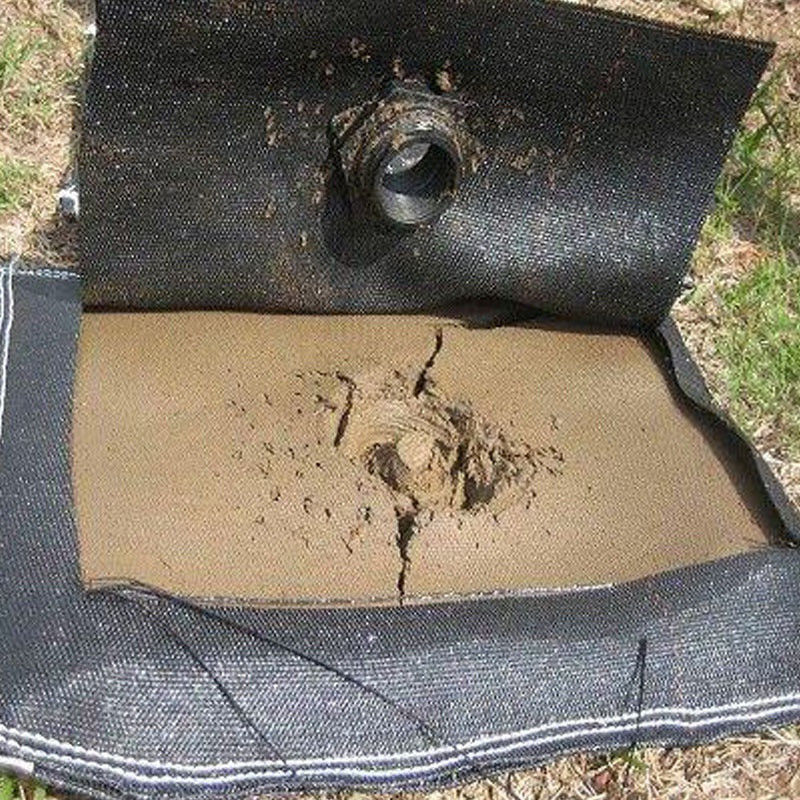

Woven Geotextile Dewatering tube is made from a specially constructed geotextile that has excellent tensile strengths and filtration characteristics suitable for the manufacture of dewatering tubes and for the dewatering of a range of sludge materials.
The engineering tubes that originally provides a unique and cost effective solution to engineering problems in a marine environment. In more recent times the use of this products has been extended to include the effective dewatering of sludge from a range of industrial processes.
The use of such products provides a very innovative, efficient and economical alternative to the dewatering of sludge over more traditional methods.

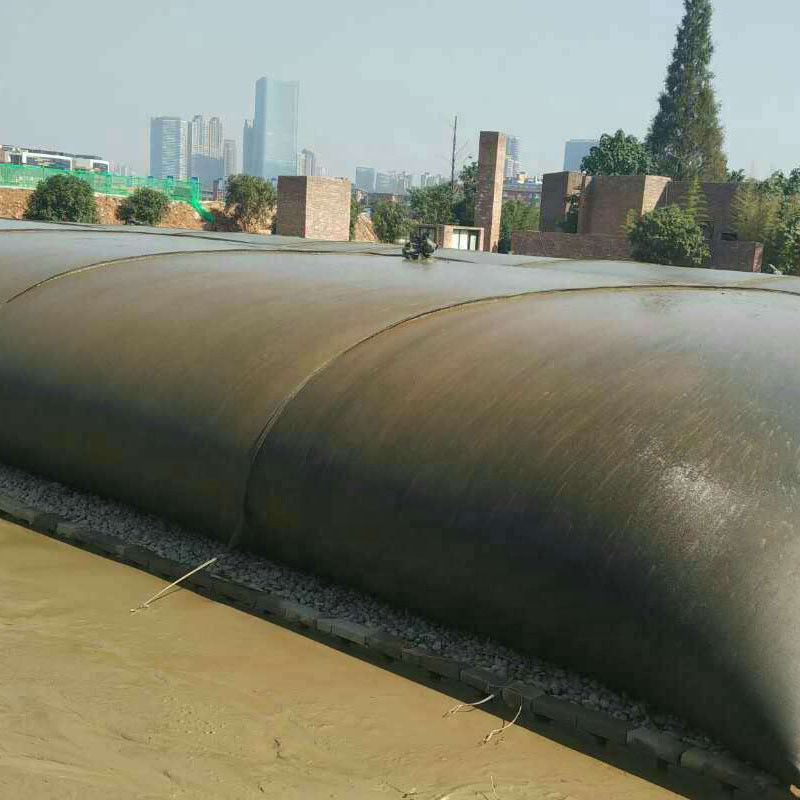

Geotextile tube allows for effective high volume containment with efficient dewatering and volume reduction. The geotextile tube offers users cost savings in disposal costs and the ability to on-site manage waste generated with no special equipment requirements.
Functions:
−Filtration
−Drainage
−Separation
Features:
- Custom Fabrication to Suit the Application
- High Strength Factory Seam Strength
- High-flow Geotextile for efficient Dewatering
Application:

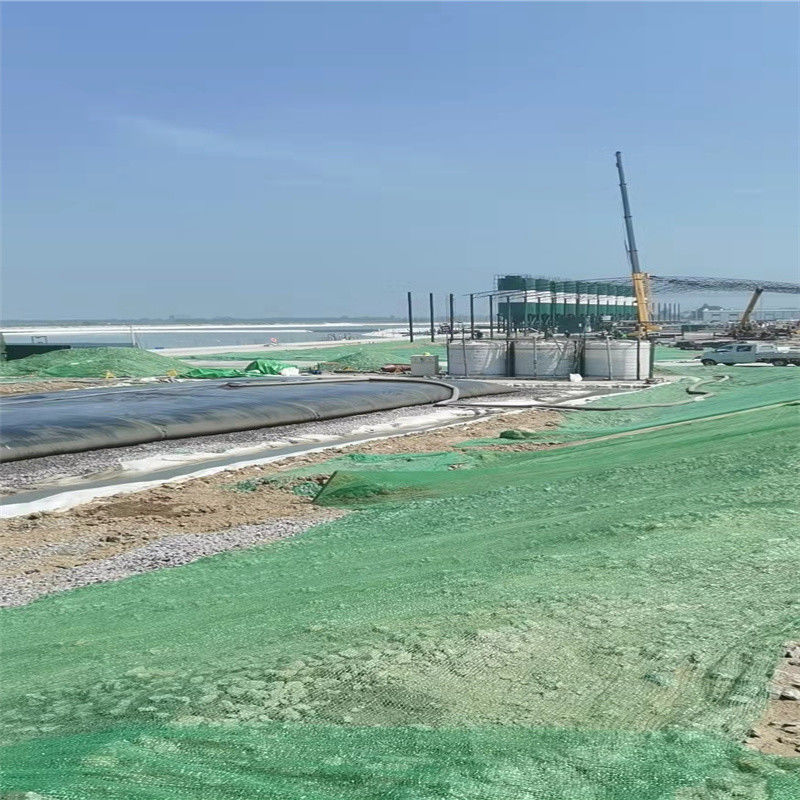

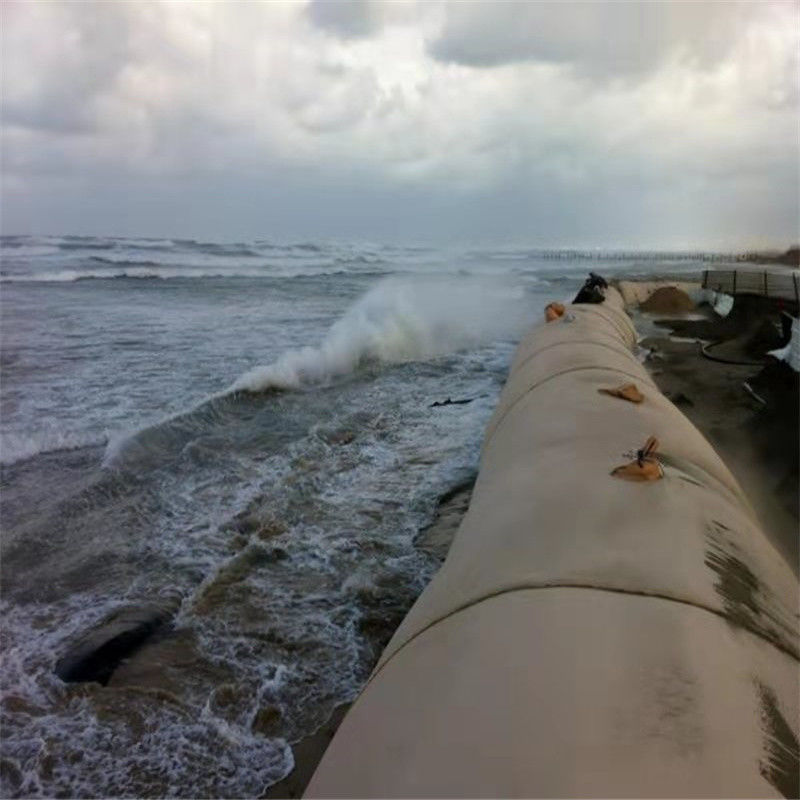

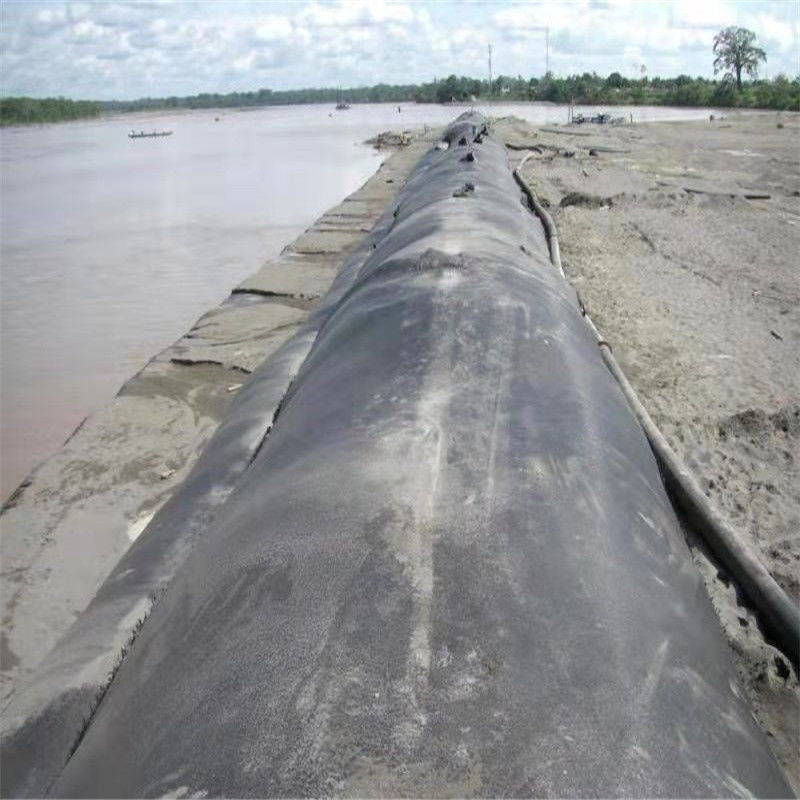

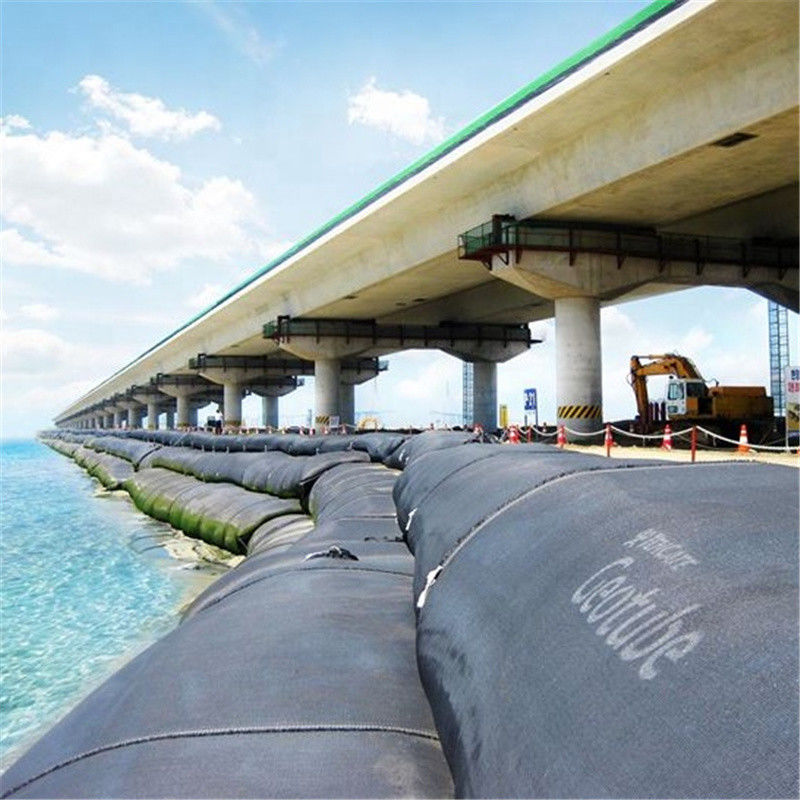

Widely used in Waste water treatment, sand/sludge dewatering, sand beach/shoreline protection, breakwater, Dam, river regulation and sewage disposal, etc.
| Item | Unit | Testing Standard | Technical Parameters | ||
| GT70X95B | GT70X95 | ||||
| Breaking strength | MD | KN/m | ISO 10319-2015 | 85 | 85 |
| CD | KN/m | ISO 10319-2015 | 105 | 115 | |
| Elongation of break | MD | % | ISO 10319-2015 | 13 | 13 |
| CD | % | ISO 10319-2015 | 8 | 8 | |
| Sewing Tensile Strength | KN/m | ISO 10321-2008 | 70 | 90 | |
| Static Bursting Strength(CBR) | KN | GB/T 14800-2010 | 8 | 9 | |
| Equivalent hole size(O90) | mm | GB/T 14799-2005 | 0.5 | 0.45 | |
| Permeability(Q50) | L/m2/s | GB/T 15789-2005 | 50 | 35 | |
| UV-resistance (500 Hours strength retention) | % | ASTMD4355-2014 | 90 | 90 | |
FAQ
What is geosynthetics ?
Geosynthetics form a perfect erosion control fabric used extremely widely in civil engineering to stabilize and reinforce slopes and soil under or next to roads, railways, dams, water reservoirs etc.. They can be easily applied which minimizes the time of construction, as well as they limit the resources and materials necessary.
What kinds of geosynthetics we have ?
Non-woven geotextile, geogrids, geocells, GCL, Geomembranes, Geonets, Geocomposites etc .
What is the geosynthetics used for ?
Hydraulic
Lagooning and Water Treatment, Ornamental Ponds, Golf Courses
Aquaculture and Desalination,Water Lagoons,Tanks, Reservoirs, Liquid Waste,Floating Cover Solutions, Drainage and Filtration
Environment
Tailing ponds, Landfills,Landfill Capping,Protection against corrosion,Vertical Barriers
Civil Works
Erosion Control,Secondary Containment,Tunnels,Linear and Surface Works,Consolidation of Margins,Soil Reinforcement,Soil Separation.
Building - Parkings,Roofing,Soundproofing
