Custom 400 Gsm Geomat Erosion Control Suppliers

Custom 400 Gsm Geomat Erosion Control Suppliers

400 Geomat Erosion Control

Custom Geomat Erosion Control

Custom geomat 400

Place of Origin:

China

Brand Name:

zhongloo

Certification:

CE/ISO9001

Model Number:

ZL-SWZBW

Contact Us

Request A Quote
Product Details
Product Name:
Geomat
Warranty:
5 Years
Thickness:
1.2/2/3mm
Mesh Size:
1cm/2cm/3cm
Shape:
Three-dimensional Structure
Layer:
2-5 Layers
Production Capacity:
50000 Square Meters Per Day
Usage:
Ecological Slope Protection System
Product Description

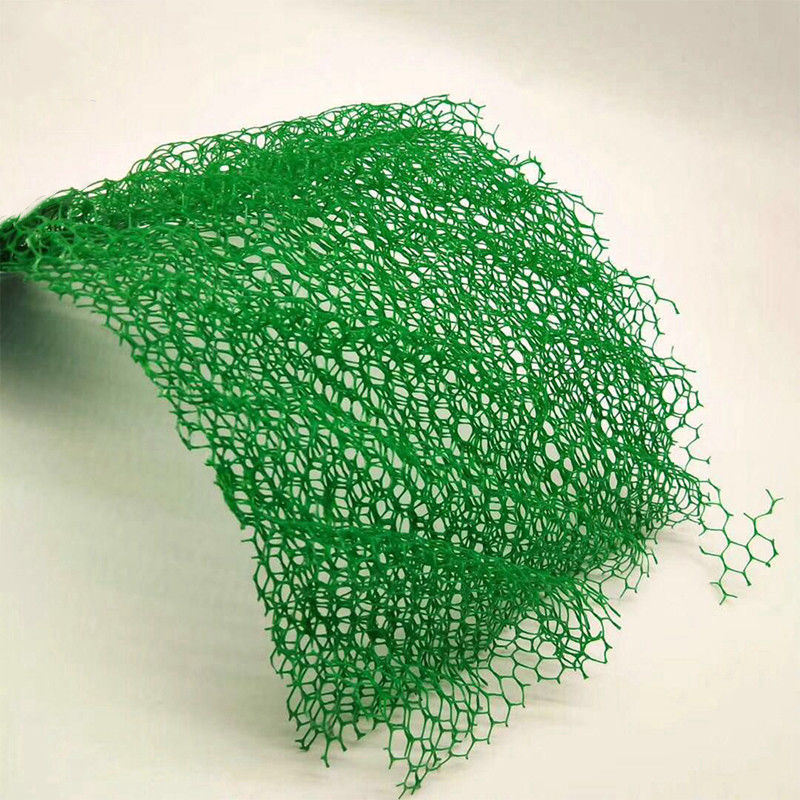

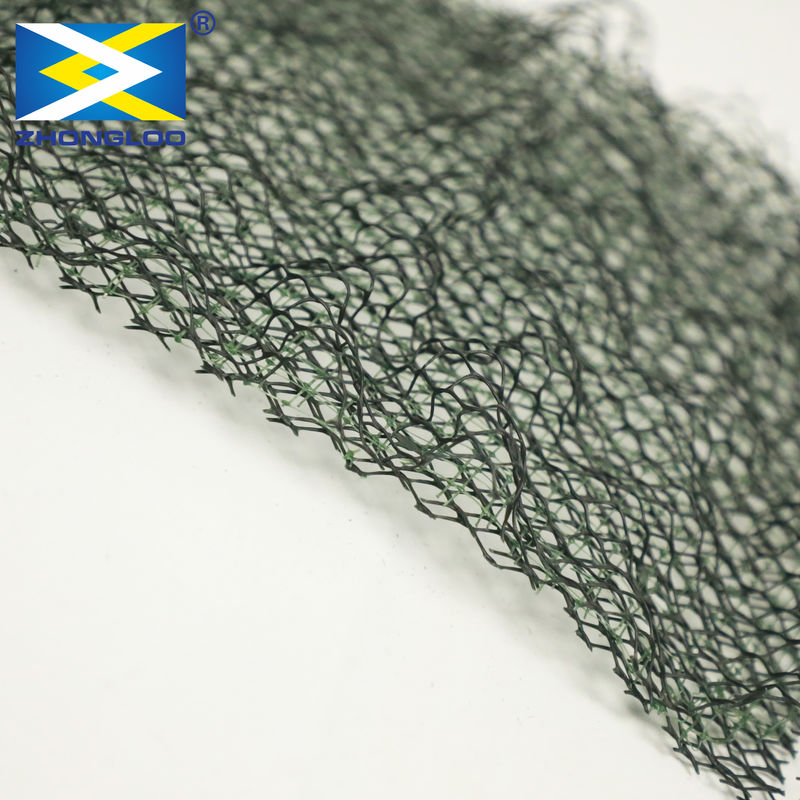

3D Geomat Erosion Control Mat Three Dimensional Geomat For Slope Protection



Product Description:

Geomat is kind of new 3D structural geosynthetic product which is applied in water and soil conservation.It used to prevent soil erosion,increase the greening area,improve the ecological environment.

Geomat can be used in raising, construction, fencing, livestock, frames and planting industries, etc.
3D erosion control mat is a kind of multi-layer plastic mat made of thermoplastic resin through extruding, stretching, and composing. It is applied to plant and fix soil with loose texture and leaves 90% space to fill earth, sand and stones. Plant roots can go across it, and grow comfortably. Turf after growing can let mat, grass and earth be combined together firmly.



Product parameters:



Three-dimensional Geonet
item Specification
Type EM2 EM3 EM4 EM5
Unit area weight≥(g/㎡) 220 260 350 430
Thickness≥(mm) 10 12 14 16
Longitudinal tensile strength≥(KN/M) 0.8 1.4 2 3.2
Transverse tensile strength≥(KN/M) 0.8 1.4 2 3.2





Project Cases:

(1)loose and fexible:Used for vegetation in his native of a 3 d structure of the towel gourd network kind of nets mat
(2)A layer of strong green composite protective cover:It left 90% of the space to fill soil, gravel, fine stone, and vegetation can pass through the root system, meanwhile, neatly balanced growth comfortably, after growing grass, the nets pad and soil
surface firmly together, because the vegetation can be deeply root below the surface 30-40 cm, formed a layer of strong green composite protective cover.


It can protect the ground surface being corroded before the turf is growing up, and fix the seeds.
The compound protection layer formed after the grass grows up can endure washing by high level and high speed water. It can be a substitute of the concrete, bitumen, stone etc to be the slope protection material. It has mainly been used in highway, railway, riverway, embankment, hillside etc.



Custom 400 Gsm Geomat Erosion Control Suppliers 0



FAQ:

1. What is geosynthetics ?
Geosynthetics form a perfect erosion control fabric used extremely widely in civil engineering to stabilize and reinforce slopes and soil under or next to roads, railways, dams, water reservoirs etc.. They can be easily applied which minimizes the time of construction, as well as they limit the resources and materials necessary.

2. What kinds of geosynthetics we have ?
Non-woven geotextile, geogrids, geocells, GCL, Geomembranes, Geonets, Geocomposites etc .

3. What is the geosynthetics used for ?
Lagooning and Water Treatment, Ornamental Ponds, Golf Courses Aquaculture and Desalination,Water Lagoons,Tanks, Reservoirs, Liquid Waste,Floating Cover Solutions, Drainage and Filtration.
