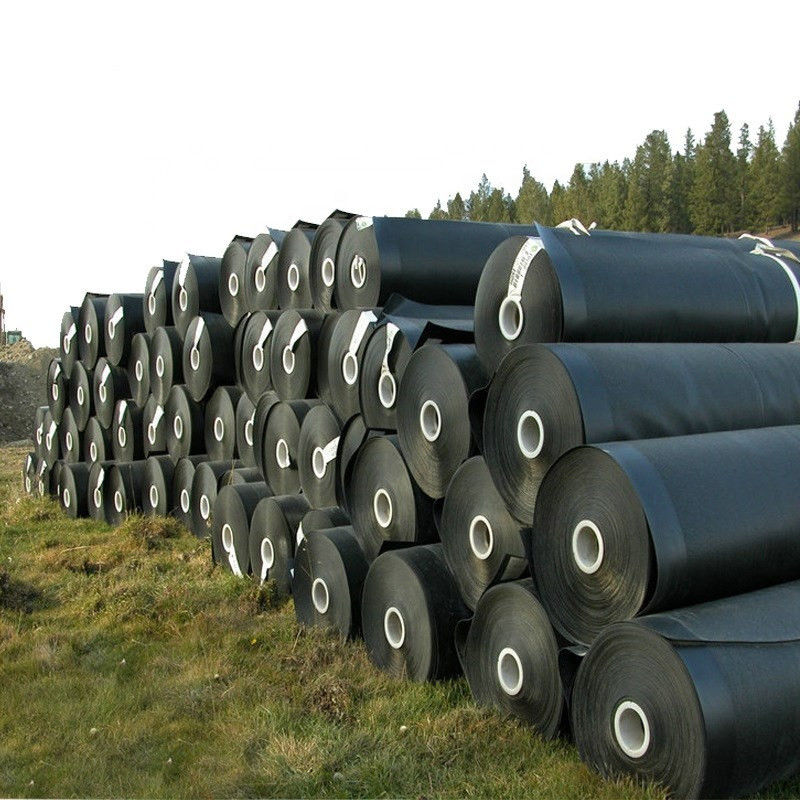

Hdpe Geomembrane Price Landfill Liner Dam Liner Pond Liner Fish Farm
Product Description:
Single Textured Surface Geomembrane
Single textured surface geomembrane: single textured surface geomembrane is a geomembrane with one textured side and one smooth side. In the construction of slope anti-seepage engineering, the textured side of the single textured surface geomembrane is often in contact with the geotextile so as to play a non-slip effect.
Double Matte Finish Geomembrane
Double-textured geomembrane: Double-textured geomembrane is a geomembrane with textured surfaces on both sides. Double-textured geomembrane is widely used. A double-textured geomembrane can be in contact with geotextiles on both sides in the construction of slope anti-seepage projects. Anti-slip effect.
Column Point Anti-Skid Geomembrane
Pillar point geomembrane: A pillar point geomembrane is a geomembrane with uniform raised points on one or both sides. The textured points of the pillar point geomembrane are evenly distributed and beautiful. Column-point geomembrane can also be used in slope anti-seepage projects to achieve anti-seepage, anti-skid, and anti-fouling effects.
Specification:
Geomembrane | |||||||||
item | Specification | ||||||||
Type | M0.3 | M0.4 | M0.5 | M0.6 | M1.0 | M1.5 | M2.0 | M2.5 | M3.0 |
Vertical Breaking strength(KN/M≥) | 3 | 5 | 6 | 8 | 12 | 17 | 18 | 19 | 20 |
Vertical and horizontal tensile elongation at break(% ≥) | 100 | 300 | 500 | ||||||
Vertical and horizontal right angle tearing strength(N/mm≥) | 10 | 15 | 20 | 30 | 40 | 80 | 100 | 120 | 150 |
CBR Bursting strength(KN≥) | 1 | 1.5 | 2.5 | 3 | 4 | 5 | 6 | 7 | 8 |
Our project cases:
Pond liner geomembrane is a kind of smooth, high quality HDPE geomembrane liner, which is made of specially formulated original polyethylene resin. This raw material is specially designed for flexible geomembrane applications. The pond liner plastic sheeting
contains about 97.5% polyethylene, 2.5% carbon black and traces of antioxidants and heat stabilizers. It does not use other additives, fillers or extenders. The HDPE geomembrane pond liner plastic sheeting has excellent chemical resistance, mechanical properties, environmental stress crack resistance, dimensional stability and thermal aging characteristics. In addition, HDPE geomembrane liner has puncture resistance and tear resistance that are unmatched by other geotechnical products on the market. The
