Sludge Dewatering Bag Tube Woven Geotextile Geotube
Product Description
Geotube is one of the most effective components that are most usually used in protective structure of waterproof erosion. Soft mattress is covered to the places where water flows to reduce the impact energy of water flow and protect soil particles from being flown away by water flow by means of its filtration function, thus, ensuring the stability of soil mass.

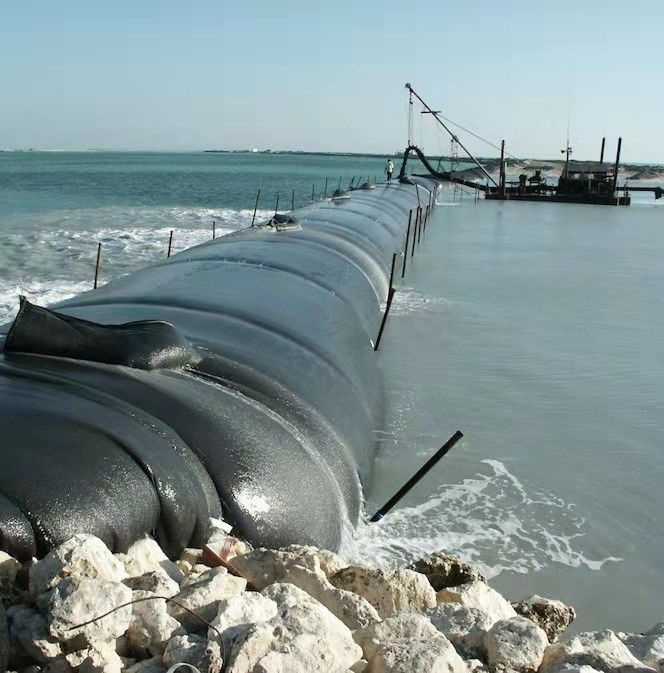

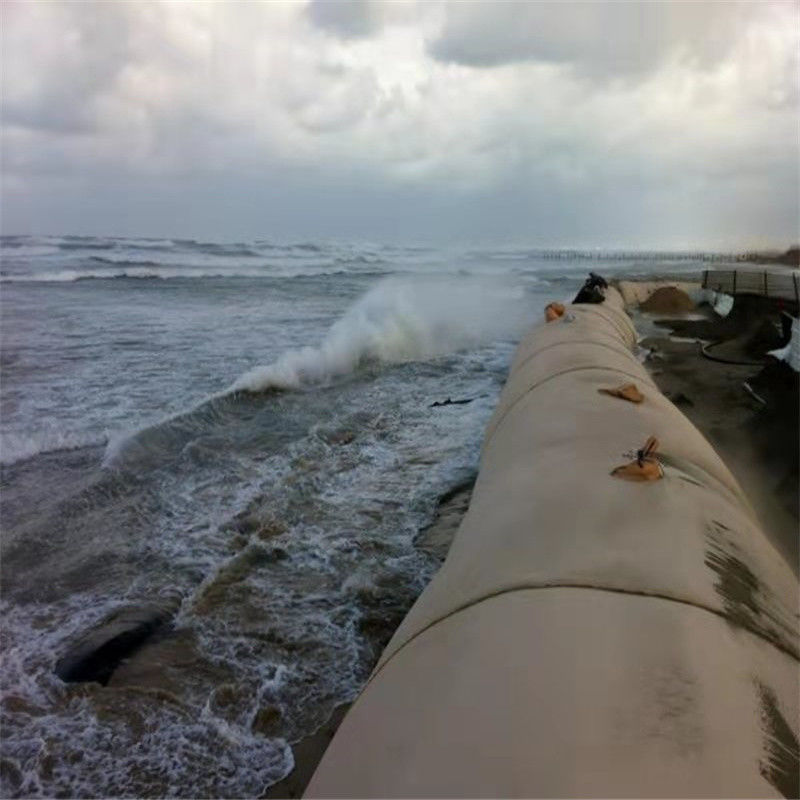

The list of materials that have been dewatered by geotextile tubes includes, but is not limited to: municipal water treatment and wastewater sludge, contaminated dredged material, agricultural animal waste and fine-grained, inorganic industrial sludge and shale gas fracking. For shoreline protection applications, the geotextile tube is filled with structural material such as beach or river sand.
| Item | Unit | Testing Standard | Technical Parameters | ||
| GT70X95B | GT70X95 | ||||
| Breaking strength | MD | KN/m | ISO 10319-2015 | 85 | 85 |
| CD | KN/m | ISO 10319-2015 | 105 | 115 | |
| Elongation of break | MD | % | ISO 10319-2015 | 13 | 13 |
| CD | % | ISO 10319-2015 | 8 | 8 | |
| Sewing Tensile Strength | KN/m | ISO 10321-2008 | 70 | 90 | |
| Static Bursting Strength(CBR) | KN | GB/T 14800-2010 | 8 | 9 | |
| Equivalent hole size(O90) | mm | GB/T 14799-2005 | 0.5 | 0.45 | |
| Permeability(Q50) | L/m2/s | GB/T 15789-2005 | 50 | 35 | |
| UV-resistance (500 Hours strength retention) | % | ASTMD4355-2014 | 90 | 90 | |

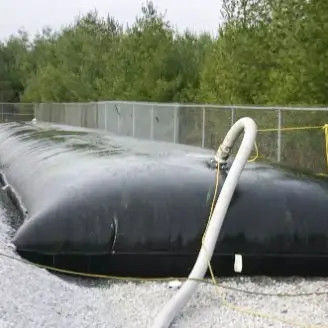

Sludge is produced in large amount in the process of wastewater treatment. Sludge is typically subject
to dewatering prior to disposal. Dewatering serves the following purposes:
• Reduces volume, saving money on storage and transportation.
• Eliminates free liquids before landfill disposal.
• Reduces fuel requirements if the residuals are to be incinerated or dried.
Geotube dewatering units can even be mounted in mobile roll-off containers that can be
transported around your property as necessary. It's one of the most versatile dewatering technologies
available.
