Slope Protection Erosion Control Geotechnical Mat 3D Drainage Geomat
Geomat Production:

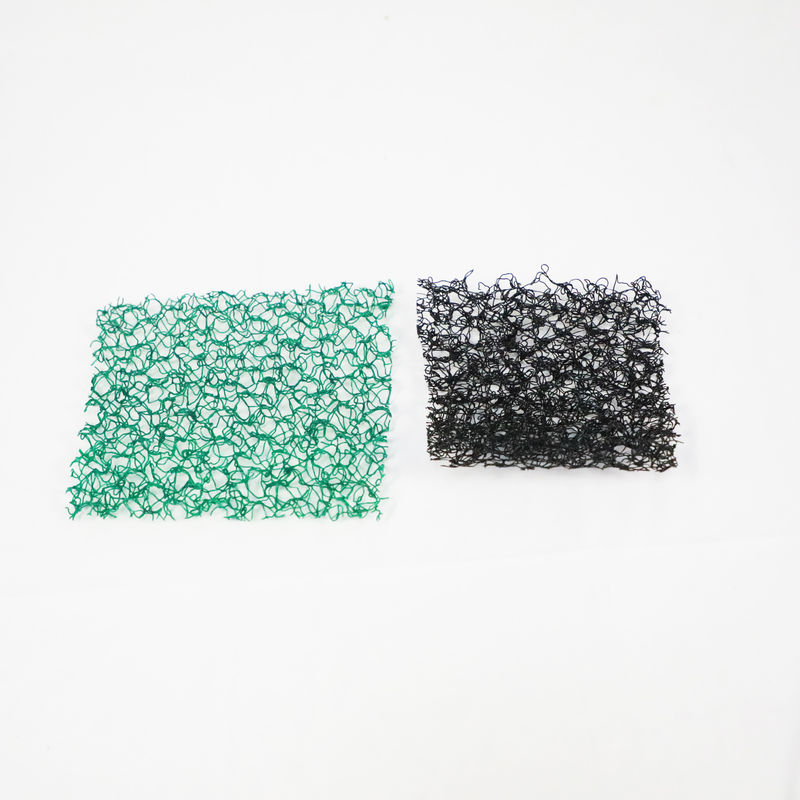

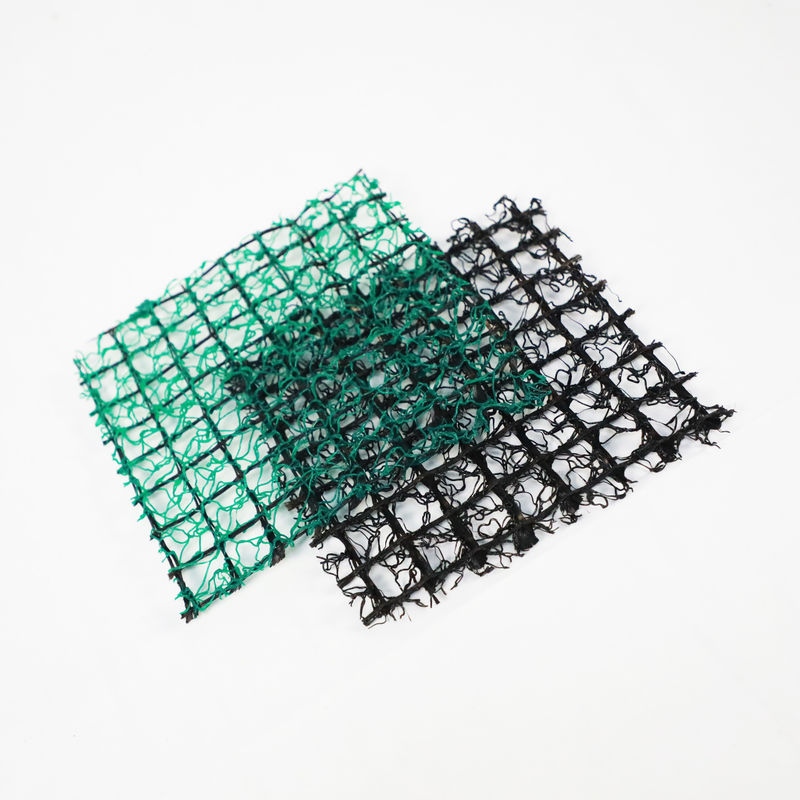

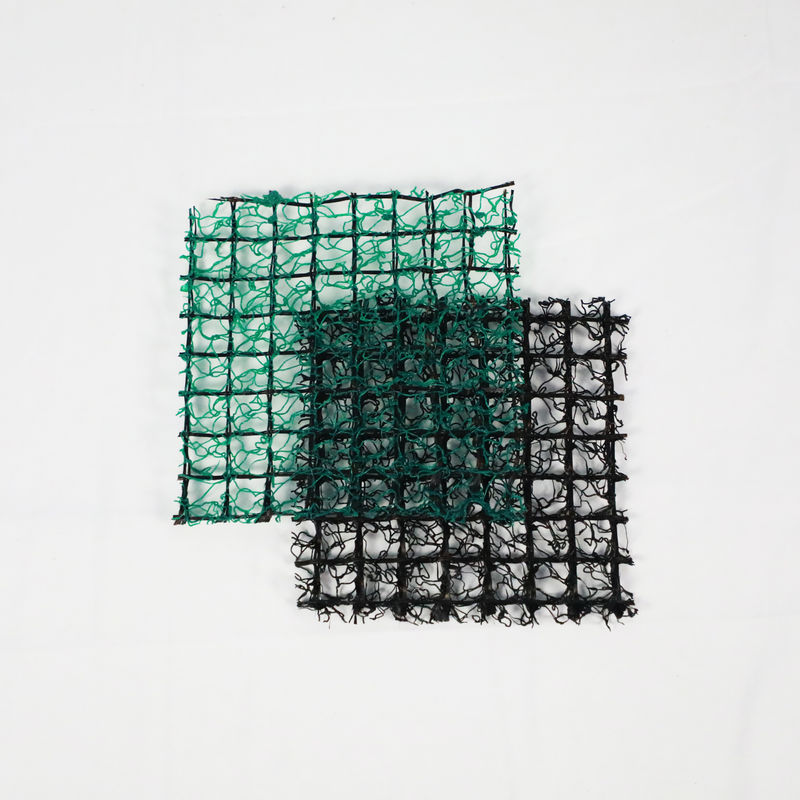

The reinforced Geomat is PP mesh mat composited with wire mesh, which is galvanized in case of erosion control. The structure allows enough space for keeping the soil and grass growing. It is malleable to suite the structure changing, and also easy to install. It can be widely used to Road bed, Rail way, Slope protection, Sea coast protection & erosion control and Channel.
Technical Parameters:
| Geotechnical mat | |||||
| item | Specification | ||||
| Type | SPS-10 | SPS-20 | SPS-30 | SPS-40 | SPS-50 |
| Thickness(mm≥) | 10 | 20 | 30 | 40 | 50 |
| Compressive strength≥ | 250KPa | ||||
| Tensile Strength≥ | 6.0KN/m | ||||
| Elongation≥ | 40% | ||||
| Vertical permeability coefficient≥ | 5*10^-1m³ | ||||
| Porosity | 80-90% | ||||
| Horizontal hydraulic conductivity | 200KPa,≥50*10^-3㎡/S | ||||
Features:
1. Filtration
2. Drain and Collect water
3. High compression strength
4. Easy to construct
5. Long service life
