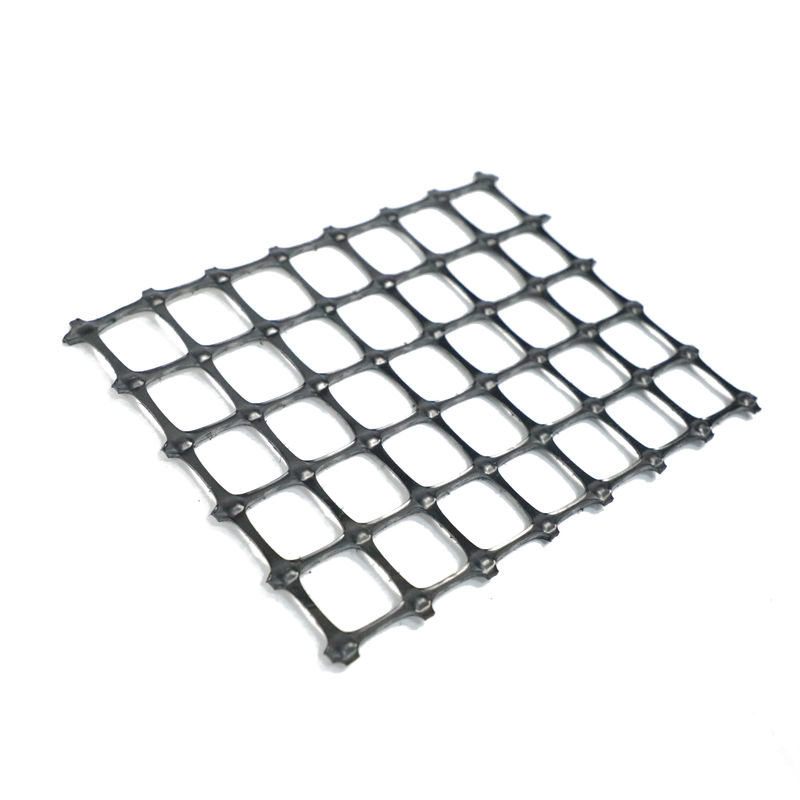

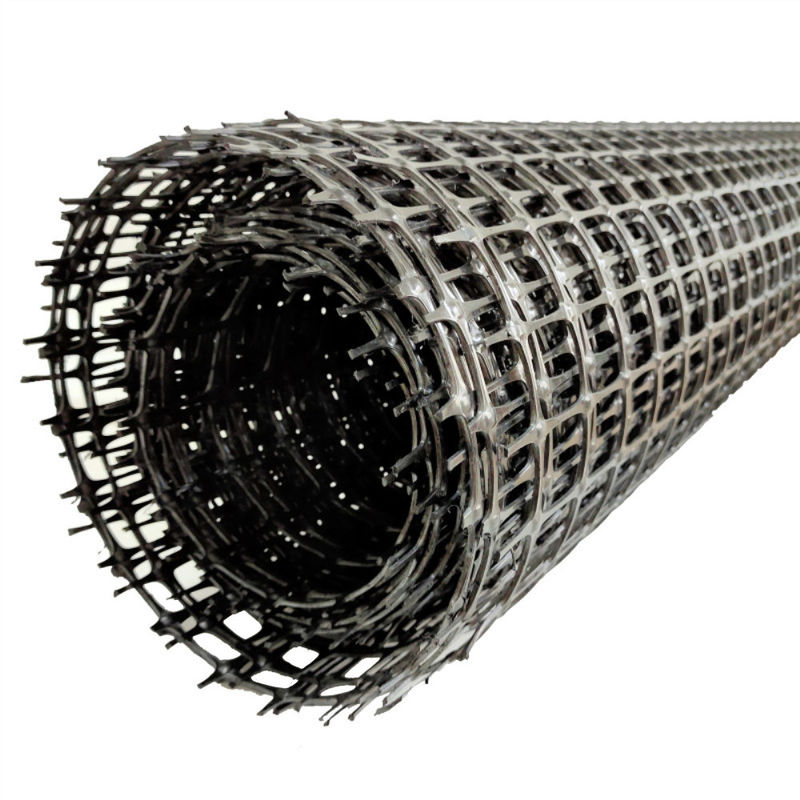

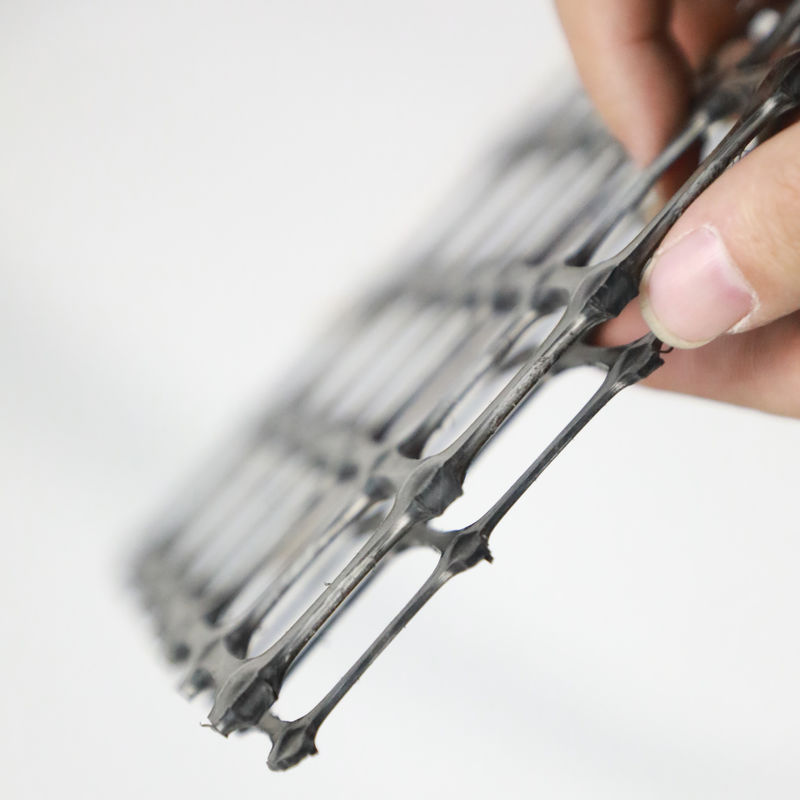

Plastic Geogrid 40kn for Road Reinforcement Black Training Road Geo Grids PP Biaxial Geogrid
Product Introduction
PP Biaxial Geogrid is an integrally formed structure,which especially designed for soil stabilization and reinforcement applications. biaxial geogrid is manufactured from Polypropylene,from the process of extruding,longitudinal stretching and transverse stretching.
Technical parameters
| MODEL | TGSG15-15 | TGSG20-20 | TGSG30-30 | TGSG40-40 | TGSG45-45 | TGSG50-50 | |||
| Mass per Unit Area (g/m2) |
300±30 | 330±30 | 400±40 | 500±50 | 550±50 | 600±50 | |||
| Width (m) | 1-6m | ||||||||
| Tensile Yield Force per Linear Meter (KN/m) (MD) | 15 | 20 | 30 | 40 | 45 | 50 | |||
| Tensile Yield Force per Linear Meter(KN/m) (CD) | 15 | 20 | 30 | 40 | 45 | 50 | |||
| (MD)Yield Elongation (%)≤ | 15 | ||||||||
| (CD)Yield Elongation (%)≤ | 13 | ||||||||
| Strength at 2% Strain, (KN/m)≥(MD) | 5 | 8 | 11 | 15 | 18 | 19 | |||
| Strength at 2% Strain(KN/m) ≥(CD) | 7 | 10 | 13 | 17 | 20 | 24 | |||
| Strength at 5% Strain (KN/m) ≥(MD) | 8 | 15 | 24 | 30 | 35 | 39 | |||
| Strength at 5% Strain (KN/m) ≥(CD) | 10 | 16 | 25 | 31 | 36 | 40 | |||
| Mesh Size (mm) | 30*30 | 36*38 | 34*36 | 34*36 | 40*40 | 40*40 | |||
| Remark | Special specifications can be customized according to the contract. | ||||||||
PP biaxial geogrids have been used in tens of thousands of projects worldwide, including roads, working platforms and reinforced foundations.
1,pavement subgrade stabilization.
2,Area/ground stabilization.
3,Pavement base reinforcement.
4,Working&load transfer platforms.
5,Reinforced granular foundation beds.
