Lap Buckle Residential Plastic Grass Grid For Car Parking Lot Eco Friendly

Lap Buckle Residential Plastic Grass Grid For Car Parking Lot Eco Friendly

Lap Buckle Plastic Grass Grid

Residential Plastic Grass Grid

Lap Buckle plastic parking grids

Place of Origin:


Brand Name:



ISO certificate

Model Number:

Plastic grass grid

Contact Us

Request A Quote
Product Details
Application Field:
Gardening, Packing Lot
Anti-slip, Reinforcement
Connection Mode:
Lap Buckle
Grass Paver Grid
Pressure, Wear Resistance, Impact Resistance
Distribute Loading
Products Name:
Plastic Grass Paver Grille Grid
Product Description

Plastic Grass Gravel Grid Used For Car Parking Lot Grass Protection

Product Description

Permeable grass gravel pavers are designed for vehicular load and traffic, as well as pedestrian and bike applications and many other heavy traffic areas. It provides an eco-friendly and superior alternative to traditional permeable concrete grid paving.

Our grass pavers are very durable and can be used in both domestic and commercial applications. Plastic pavers prevent soil erosion, prevent vehicles sinking and vastly improve drainage, all whilst having a little visual impact.

When compared to traditional concrete permeable pavers, our pavers is superior in many applications, including landscaping, overflow parking, and private grass driveways. It does not crack and strong enough up to 200 ton/sqm load, is permeable, and will not dry out grass or cause flooding. Ideal for grass driveways, gravel parking areas, trailer parking spots, golf cart paths, residential parking lots, permeable pavements, rooftop gardens, swimming pool and jacuzzi surrounding areas.


2.Technical Data:

Product Name Plastic Grass Paver
Model GPP-38 GPP-48 GPP-68
Size(mm) 410×390×38 410×390×48 410×390×68
500×500×38 500×500×68
Pressure Strength 160ton/sqm-250ton/sqm
Material HDPE ( high-density polyethylene )
Product Type Virign material and Recycled Material
Durability at least 4 years in neutral ground of 4 < pH < 9
Working Temperature Apply in temperature of -10ºC to 50ºC
Anti HCL 30%x24h, no visible change
Thermal Aging 70ICx24h, no visible change
Anti UV UPE>30 T(UVA)AV<5%, qualified

1.Reduce ground reflection, reduce ground heat radiation
2.Reduce the ground acoustic wave transmission, reduce noise pollution.
3.Reduce dust and purify the air
4.Natural leakage of rainwater, soil does not lose, no water phenomenon
5.Free combination and disassembly, reusable
6.Easy to in

Lap Buckle Residential Plastic Grass Grid For Car Parking Lot Eco Friendly 0



1) Simple structure in linear type ,easy in installation and maintain.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high autoimmunization and intellectualization, no pollution
5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .

How to install?
1. Start in corner of the project area with male tabs of first grid facing towards the center of the area
2. Line up female slots of next grid over male tabs of the first grid.
3. Lock grid into its place.
4. Repeat until the area is covered with a connected grid.
5. Gravel fill: Fill the grid with the desired aggregate to top of the grid.
6. Lightly compact to settle.
7. Grass fill: Fill the grid with soil and seed.

-Grass Parking Lots
-Overflow grass car & bus parking lots
-Grass Fire Truck Access routes / Fire Lanes
-Handicap access routes
-Golf cart paths
-Emergency grass access roads
-Residential access and parking spaces
-Grass Driveway and grass shoulders

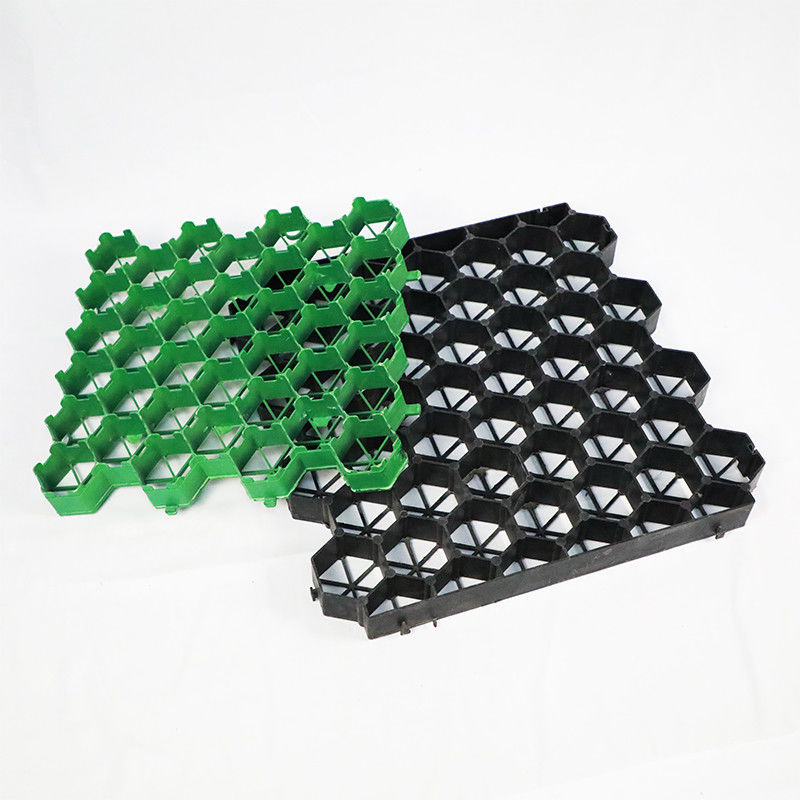

Lap Buckle Residential Plastic Grass Grid For Car Parking Lot Eco Friendly 1



1. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

2.what can you buy from us?
Geogrid,Geotextile,Geocell,Geomembrane,Geocomposite,Spunbond Nonwoven Fabric

Professional geosynthetics manufacturer
Anhui Zhonglu Engineer Materials Co., Ltd
