Reinforcement Fiberglass Geogrids 100-100kn
1.Product Description

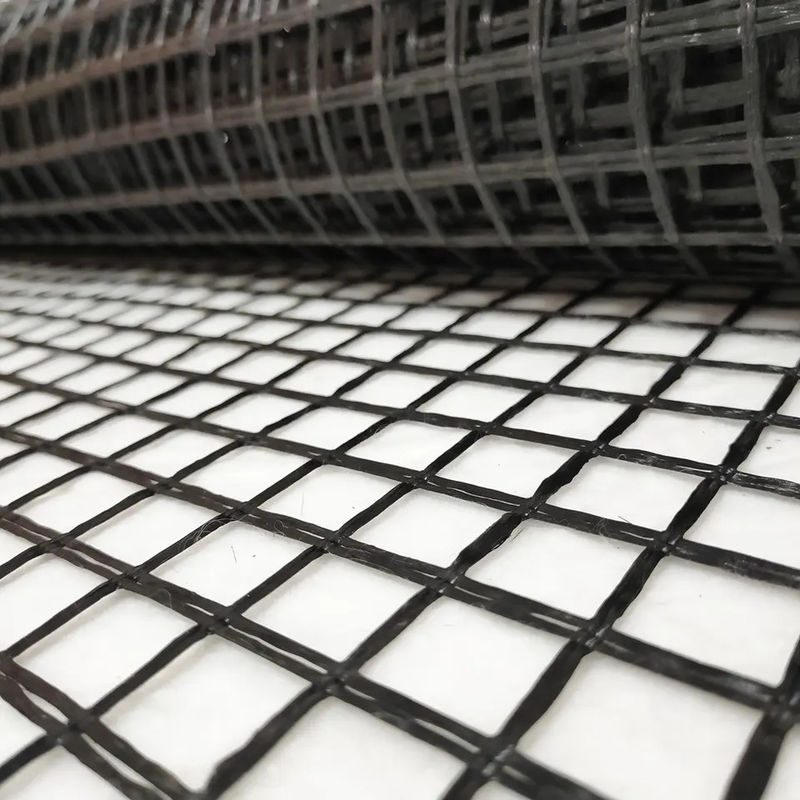

Fiberglass geogrid is knitted by glass fiber filaments and coated with bitumen to provide a good bond with the asphalt layers, can strengthen the asphalt layer, extend the service life ot pavement layers and decrease the occurrence rate of reflective cracking under cyclic traffic load.
|
Spec
|
EGA
30-30
|
EGA
50-50
|
EGA
80-80
|
EGA
100-100
|
EGA
120-120
|
EGA
150-150
|
EGA
200-200
|
EGA
300-300
|
|
|
Mesh size (mm)
|
25.4x25.4 or 12.5x12.5 or 50.8x50.8
|
||||||||
|
Breaking strength
≥(kN/m)
|
warp direction
|
30
|
50
|
80
|
100
|
120
|
150
|
200
|
300
|
|
across warp
|
30
|
50
|
80
|
100
|
120
|
150
|
200
|
300
|
|
|
warp direction
|
3
|
||||||||
|
across warp
|
3
|
||||||||
|
Thernal tolerance(℃)
|
-100~280
|
||||||||
|
Width(m)
|
2/2.5/3.95/5.95 m
|
||||||||
2.Product Funtion
Glass fiber grid has the characteristics of high strength, low elongation, high temperature resistance, high modulus, light weight, good toughness, corrosion resistance and long service life.
3.Application

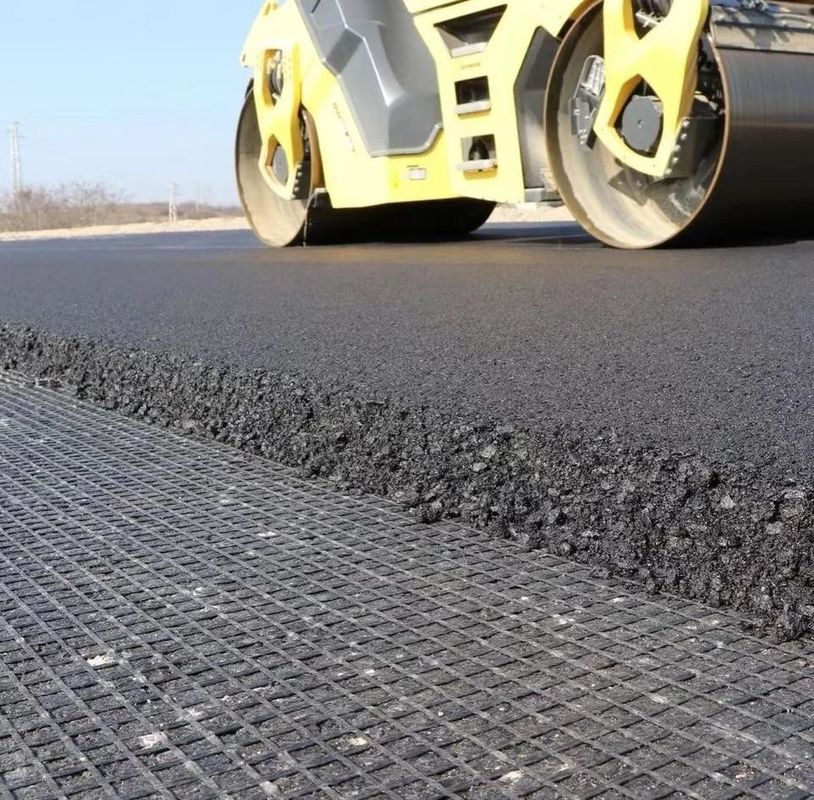

1) Maintenance and reinforcement of old asphalt road.
2) Rebuild old cement concrete road into composite road, restrain reflection crack caused by different block contraction.
3) It has widely applied in road renovation and expansion project, prevents cracks along the joint position caused by uneven
sedimentation.
4) It is used for soft sub grade reinforcement. The geogrid will help the water infiltration and soil concretion, restrain
subsidence effectively, and decentralize stress evenly, enhance overall strength of the roadbed.
