ASTM Polyester Basalt Fiber Geogrid Retaining Wall For Aspheltic Roads

ASTM Polyester Basalt Fiber Geogrid Retaining Wall For Aspheltic Roads

Polyester basalt fiber geogrid

ASTM basalt fiber geogrid

Basalt geogrid retaining wall

Place of Origin:

China

Brand Name:

zhongloo

Certification:

ISO,SGS

Model Number:

Ployester Geogrid

Contact Us

Request A Quote
Product Details
Name:
Ployester Geogrid
Model Number:
30KN-200KN
Roll Width:
3.95/5.95m
Application:
Road Construction, Roadbed
Product Color:
Black
Roll Length:
50/100m
Certification:
ISO
Raw Material:
Polyester
Mesh Size (mm):
25.4*25.4mm
Package:
PP Woven Bags
Product Description

geogrid for aspheltic roads polyester geogrid



Product Description

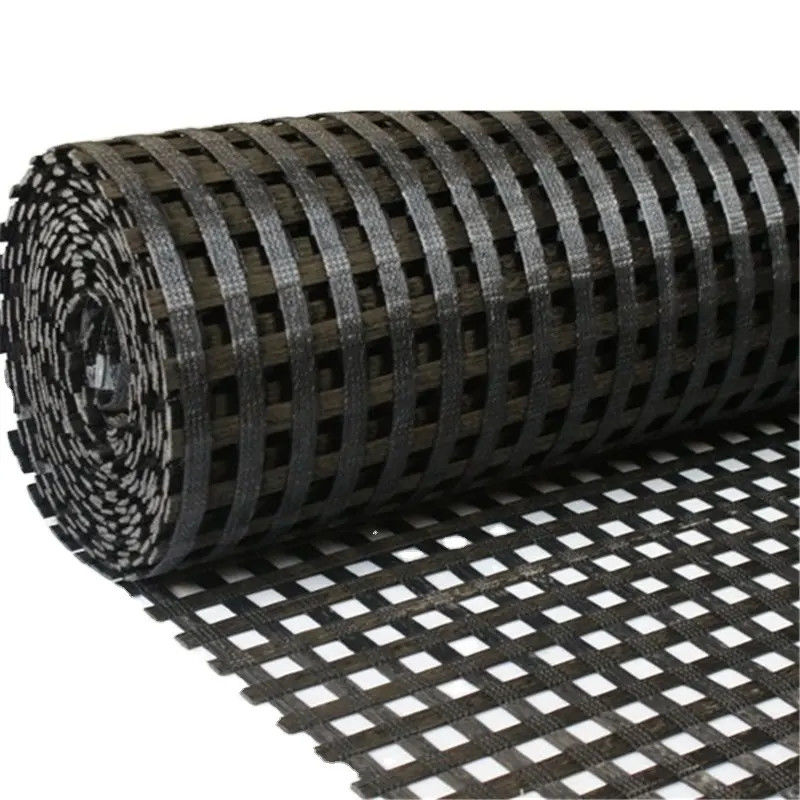

ASTM Polyester Basalt Fiber Geogrid Retaining Wall For Aspheltic Roads 0
Product Name
Polyester geogrid
Polymer
High strength polyester yarn
coated with PVC
Tensile Strength
from 20-20 to 800-800 kN/m
from 60-30 to 1000-100 kN/m
Mesh Size
25.4x25.4 or 50.8x50.8 or 76.2x76.2mm
Roll Width
2 or 3.95 or 5.0 or 5.2 or 5.95 m
Roll Length
50 or 100 m
Standard
CE / ISO / ASTM





Polyester geogrid is a new kind of earthwork base material which is used to strengthen the road surface and roadbed. Composing of high strength polyester yarns, coated with an inorganic size agent, it is mainly applied in strengthening soft ground of road, highway, railway, port, slope, retaining wall, etc.



Performance/Specification)
PET-
20-20
PET-
30-30
PET-
40-40
PET-
50-50
PET-
80-80
PET-
100-100
PET-
200-200
Elongation%
13%
Tensile Strength
(KN/m)
warp
20
30
40
50
80
100
120
waft
20
30
40
50
80
100
120
Mes size(mm)
25.4X25.4
Width(m)
1-6
1-6
1-6
1-6
1-6
1-6
1-6

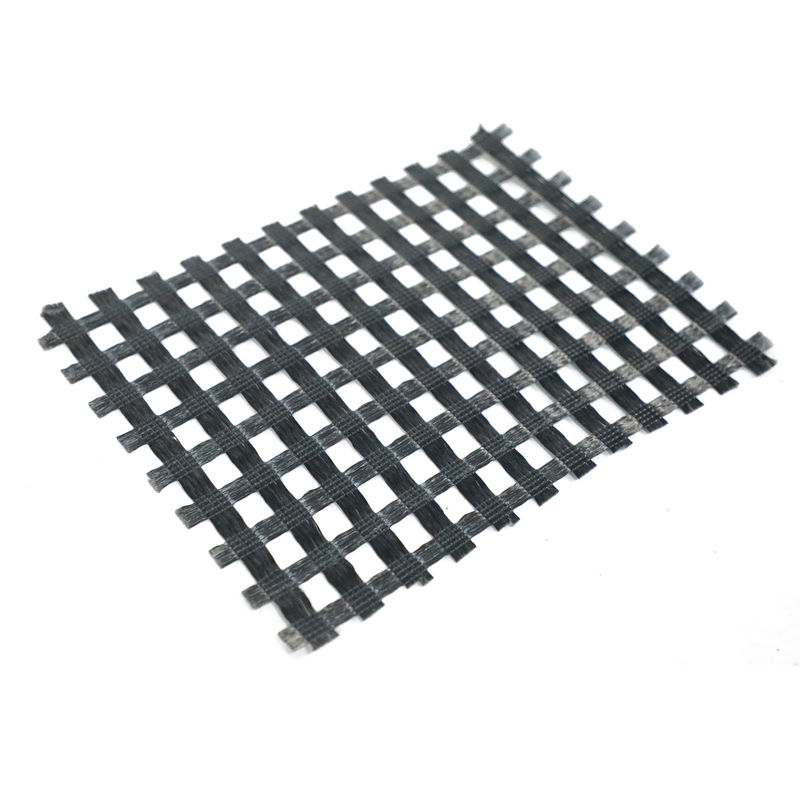

ASTM Polyester Basalt Fiber Geogrid Retaining Wall For Aspheltic Roads 1

Application of warp knitted polyester geogrid uses
1. Used for enhanced isolation of various high-grade roads and railway soft subgrades
2. It is used for river banks and embankment slopes to strengthen and stabilize
3. Strengthen and stabilize the sub-foundation
4. Used for road and bridge reinforcement



FAQ

Q:Can you produce the product according to customers' requirements?
A: Sure,we are professional manufacturer,OEM and ODM are both welcome.

Q:How long is the delivery time?
A: General within 3-7days after received the deposit.
Q: How to control product quality?
A: Our factory adopts lean management, products from the beginning to the end of the production process have strict quality control. All products must be strictly tested before packing and shipping.
