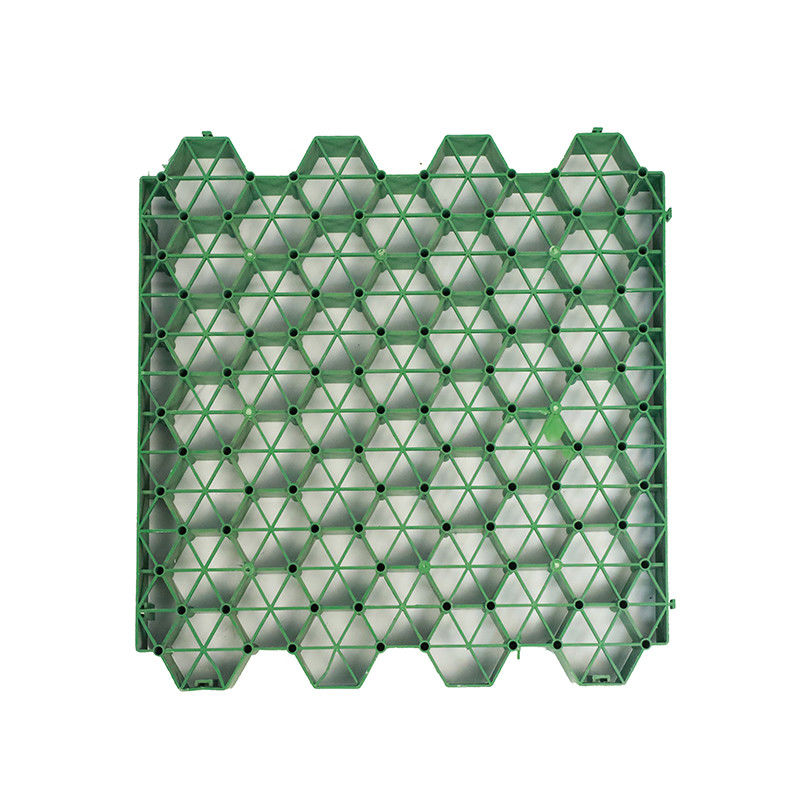

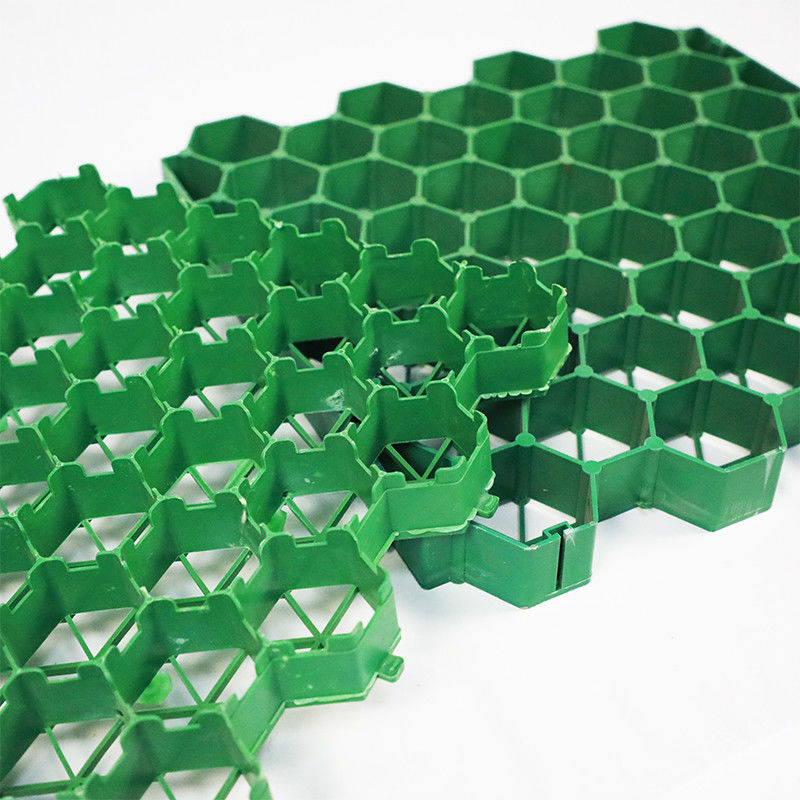

Recycled Honeycomb Enhanced HDPE Plastic Grass Grid Car Parking Lot

Recycled Honeycomb Enhanced HDPE Plastic Grass Grid Car Parking Lot

Honeycomb Enhanced Plastic Grass Grid

Recycled Plastic Grass Grid

HDPE plastic car parking grid

Place of Origin:

China

Brand Name:

OEM

Certification:

ISO certificate

Model Number:

HDPE Plastic Grass Grid Parking Lot Lawn Gravel Grid

Contact Us

Request A Quote
Product Details
Application Field:
Gardening, Packing Lot
Application:
Retaining Wall, Steep Slop, Dam, Road Base
Connection Mode:
Lap Buckle
Classification:
Grass Paver Grid
Working Temperature:
-10ºC To 50cº
Advantage:
Pressure, Wear Resistance, Impact Resistance
Feature:
Distribute Loading
Grid Shape:
Hexagonal
Product Description

Honeycomb Enhanced HDPE Plastic Grass Grid Parking Lot Lawn Gravel Grid


Honeycomb Enhanced HDPE Plastic Grass Grid Product Description

Plastic geogrid grass grid is made from HDPE (high-molecular polyethylene) with fiber and age resistor, using high pressure to inject plastic to form bee nest-like shaped shell, with stereo space and support level.




2.Technical Data:

Product Name Plastic Grass Paver
Model GPP-38 GPP-48 GPP-68
Size(mm) 410×390×38 410×390×48 410×390×68
500×500×38 500×500×68
Pressure Strength 160ton/sqm-250ton/sqm
Material HDPE ( high-density polyethylene )
Product Type Virign material and Recycled Material
Durability at least 4 years in neutral ground of 4 < pH < 9
Working Temperature Apply in temperature of -10ºC to 50ºC
Anti HCL 30%x24h, no visible change
Thermal Aging 70ICx24h, no visible change
Anti UV UPE>30 T(UVA)AV<5%, qualified



How to install?
1. Start in corner of the project area with male tabs of first grid facing towards the center of the area
2. Line up female slots of next grid over male tabs of the first grid.
3. Lock grid into its place.
4. Repeat until the area is covered with a connected grid.
5. Gravel fill: Fill the grid with the desired aggregate to top of the grid.
6. Lightly compact to settle.
7. Grass fill: Fill the grid with soil and seed.

Features

1) Simple structure in linear type ,easy in installation and maintain.

2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

3) High pressure double crank to control the die opening and closing.

4) Running in a high autoimmunization and intellectualization, no pollution

5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .

Application

---Parking
---Fire engines
---Fire climbing surface
---Golf carts
---Convention and Exhibition Center
---Modern factory
---Noble living communities,Roof Garden

Recycled Honeycomb Enhanced HDPE Plastic Grass Grid Car Parking Lot 0




Recycled Honeycomb Enhanced HDPE Plastic Grass Grid Car Parking Lot 1

FAQ

1. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

2.what can you buy from us?
Geogrid,Geotextile,Geocell,Geomembrane,Geocomposite,Spunbond Nonwoven Fabric
