Steel Plastic Composite Synthetic Geogrid For Pavers Driveway

Steel Plastic Composite Synthetic Geogrid For Pavers Driveway

Steel Plastic synthetic geogrid

Composite synthetic geogrid

Composite geogrid for pavers

Place of Origin:

China

Brand Name:

zhongloo

Certification:

ISO

Model Number:

Steel plastic geogrid

Contact Us

Request A Quote
Product Details
Product Type:
Geogrid
Product Material:
PE/PP+Steel Wire
Model Number:
Steel-plastic Welded Composite Geogrid
Elongation:
13%
Roll Width:
2/3.95/4.0/5.0/5.2/5.95m
Roll Length:
50m/100m/customer Requirement
Color:
Black Or Customer`s Reques
Feature:
High Strength/Low Creep Deformation
Tensile Strength:
30-150kN/m
Product Name:
Steel Plastic Geogrid For Soil Reinforcement
Product Description

Steel Plastic Composite Geogrid Driveway Geogrid For Road Construction Geogrid Prices

Product Description

High strength polyester warp-knitting geogrid adopts high strength, high modulus, low shrinkage twisting industrial polyester fiber as raw material. It is warp knitted with oriented structure and in the condition of no bending among warp and weft direction. Its crossing points are bundled together by high strength long polyester fiber forming tough conjunction.Then it forms into mesh size product after coated with high quality water-soluble PVC which improves its strength, various technical standards and gives full play of its mechanical property.

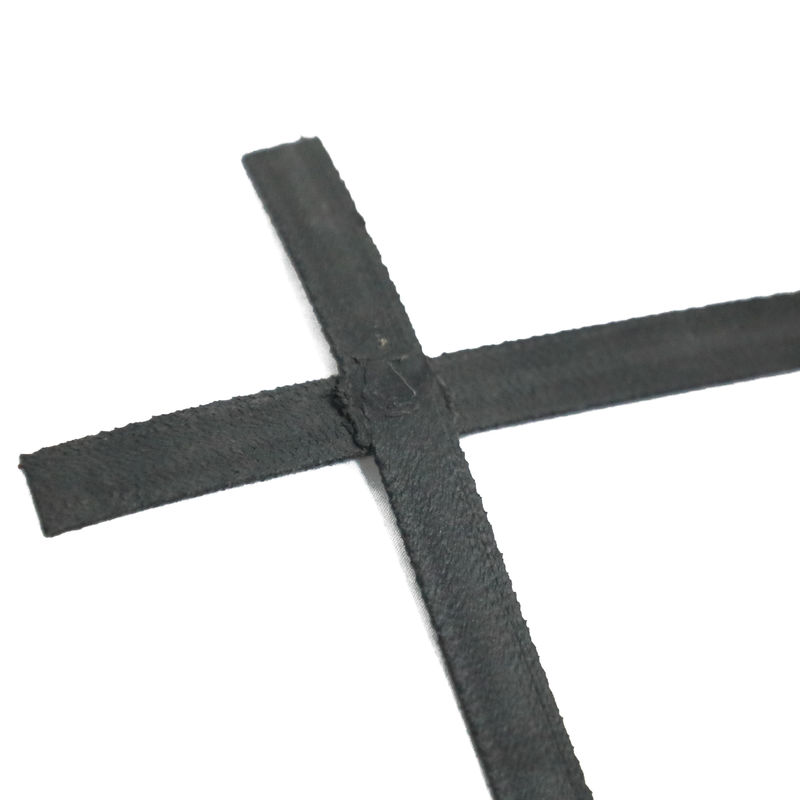

Steel Plastic Composite Synthetic Geogrid For Pavers Driveway 0



Steel Plastic Composite Geogrid Technical Parameter (GB standard)
Item
Specification
Type
GSZ 30-30
GSZ 50-50
GSZ 60-60
GSZ 70-70
GSZ 80-80
GSZ 100-100
GSZ 150-150
Vertical and horizontal ultimate tensile strength≥(KN/M)
30
50



60
70
80
100
150
Vertical and horizontal ultimate tensile strength elongation≤(%)
3
Peel force of connection point≥(KN)
300
500





 1.High Tear Strength, Flexible and durable,Excellent Creep Resistance.
2. UV resistance / Cost effective,High chemical and biological resistance
3.High resistance to installation damage and ease of installation

4. Easily combing with gravel and soil.

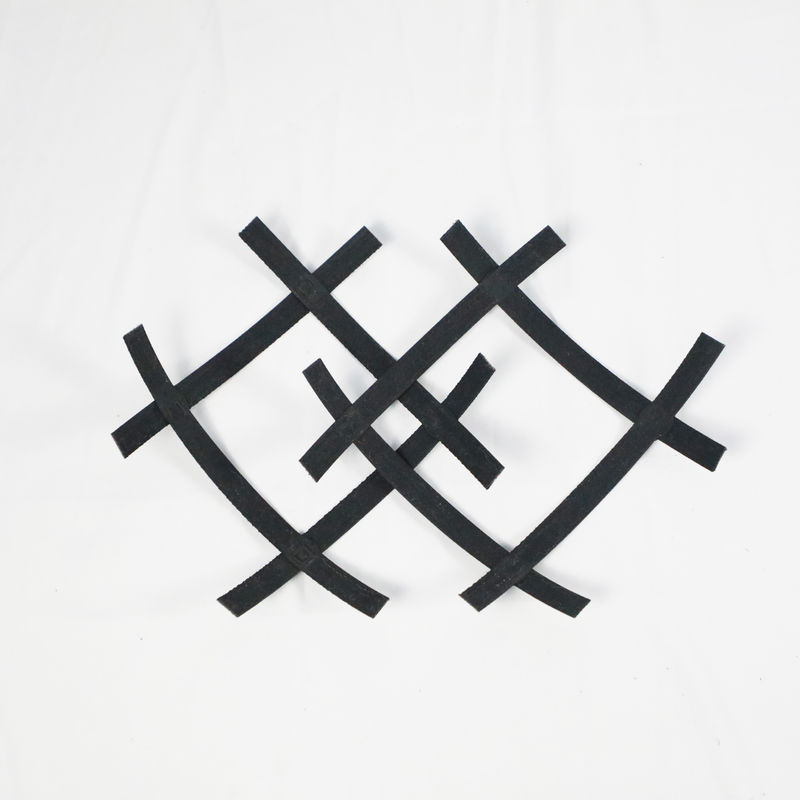

Steel Plastic Composite Synthetic Geogrid For Pavers Driveway 1

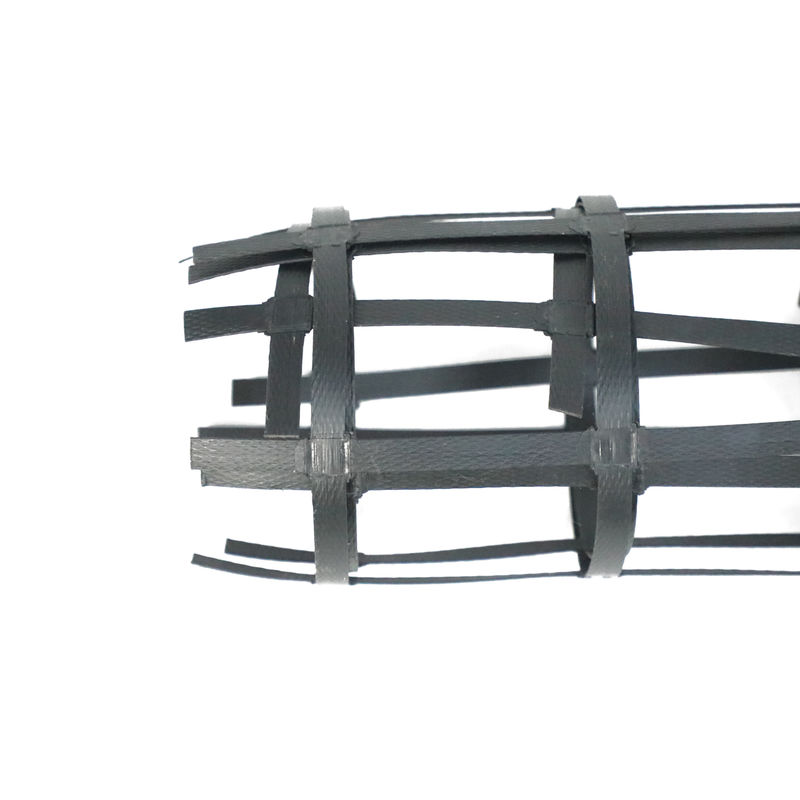

Steel Plastic Composite Synthetic Geogrid For Pavers Driveway 2

FAQ



Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days,it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, We provide free sample for testing, but freight cost should be on your account. You could tell us your Fedex/ DHL/ TNT
courier account directly, or pay the freight cost by Alibaba trade assurance or western union.
Q: What is your terms of payment ?
A: 30% T/T in advance ,balance before shipment.
