Honeycomb Plastic Turf Grid Gravel For Driveway Pavers Paddock Ground Parking Lot

Honeycomb Plastic Turf Grid Gravel For Driveway Pavers Paddock Ground Parking Lot

Honeycomb plastic turf grid

Paddock plastic turf grid

Honeycomb plastic grass driveway pavers

Place of Origin:

China

Brand Name:

OEM

Certification:

ISO certificate

Model Number:

HDPE Plastic Grass Grid Parking Lot Lawn Gravel Grid

Contact Us

Request A Quote
Product Details
Width:
500mm OR Customized
Application:
Retaining Wall, Steep Slop, Dam, Road Base
Connection Mode:
Lap Buckle
Type:
Flower Shape&Flat Shape
Working Temperature:
-10ºC To 50cº
Advantage:
Pressure, Wear Resistance, Impact Resistance
Feature:
Distribute Loading
Grid Shape:
Hexagonal
Product Description

Honeycomb Plastic Gravel Grass Grid Pavers Factory For Driveway Paddock Ground Parking Lot


Planting Grass Paver Grid Product Description

Grass grid is made of HDPE material, and adopt high pressure injection forming technology to suppress the nest bee continuous shell, three-dimensional space and certain support height and strength, green environmental protection, completely Recyclable.
It realizes a perfect combination of parking lots with lawn. Grass grid has good properties pressure-resistant, abrasion resistance, impact resistance, aging resistance, corrosion resistance, etc. It enhances the quality and saves investment. The flat  lapping type is unique. It can save labor, fast, telescopic joint regulation.




2.Technical Data:

Materials
HDPE
Height
38mm
48mm
48mm
68mm
Width
500mm
500mm
500mm
500mm
Length
500mm
500mm
500mm
500mm
Edge
Jagged edge
Jagged edge
Flat edge
Flat edge
Pressure Strength
160-250 Ton / Sqm
Durability
at least 4 years in neutral ground of 4
Working Temperature
-10℃ - 50℃ (6.8℉ - 122℉ )
Anti UV
UPE>30 T ( UVA ) AV
Testing
ISO ASTM



How to install?
1. Start in corner of the project area with male tabs of first grid facing towards the center of the area
2. Line up female slots of next grid over male tabs of the first grid.
3. Lock grid into its place.
4. Repeat until the area is covered with a connected grid.
5. Gravel fill: Fill the grid with the desired aggregate to top of the grid.
6. Lightly compact to settle.
7. Grass fill: Fill the grid with soil and seed.



Advantages

1. Reduce ground reflection, reduce ground heat radiation.
2. Reduce the ground acoustic wave transmission, reduce noise pollution.
3. Reduce dust and purify the air.
4. Natural leakage of rainwater, soil does not lose, no water phenomenon.
5. Free combination and disassembly, reusable.
6.Easy to install.

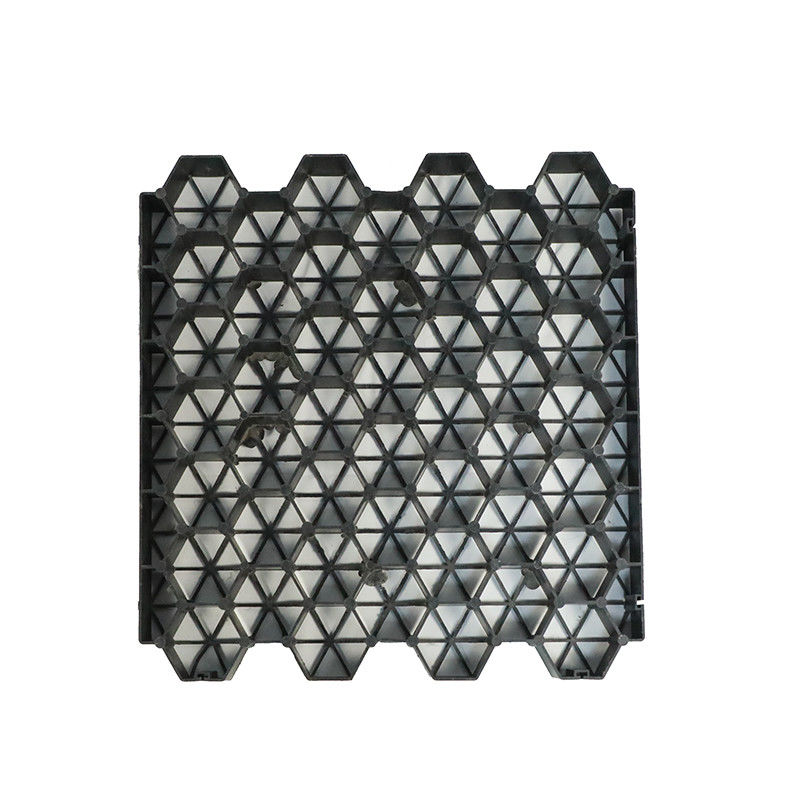

Honeycomb Plastic Turf Grid Gravel For Driveway Pavers Paddock Ground Parking Lot 0

Application

---Parking
---Fire engines
---Fire climbing surface
---Golf carts
---Convention and Exhibition Center
---Modern factory
---Noble living communities,Roof Garden

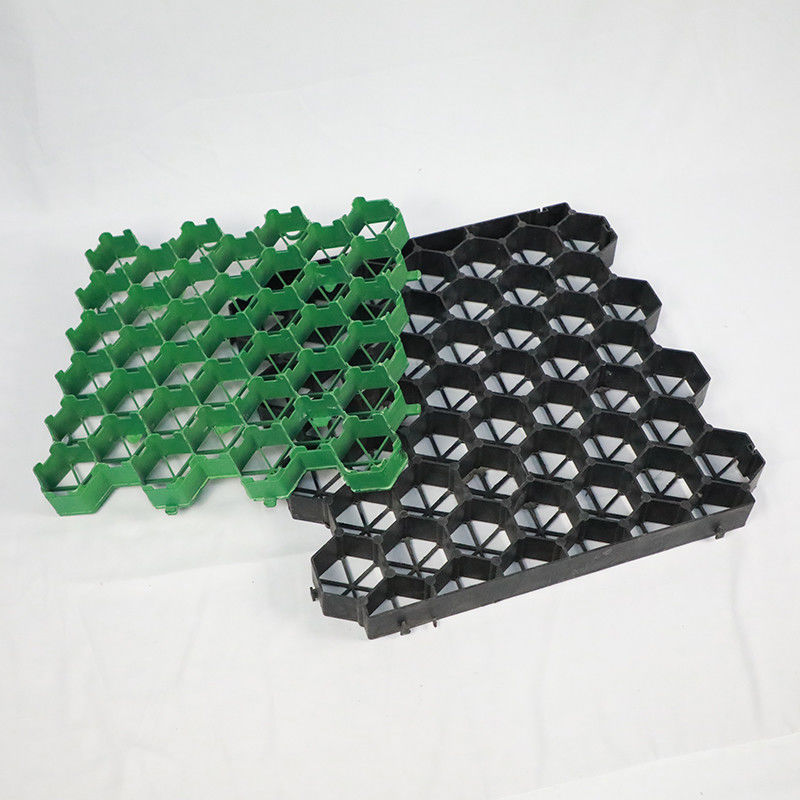

Honeycomb Plastic Turf Grid Gravel For Driveway Pavers Paddock Ground Parking Lot 1
