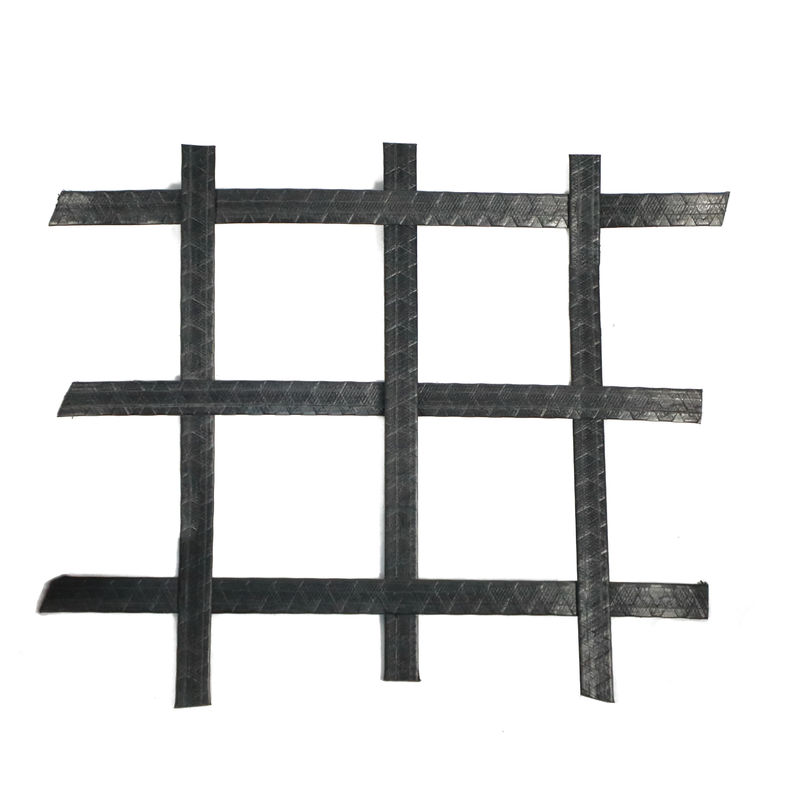

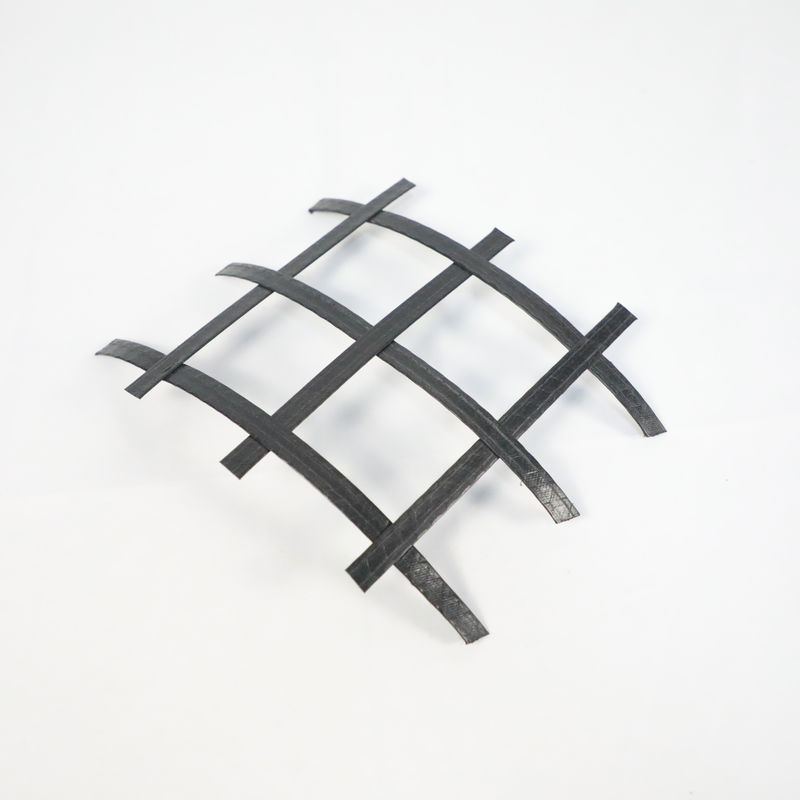

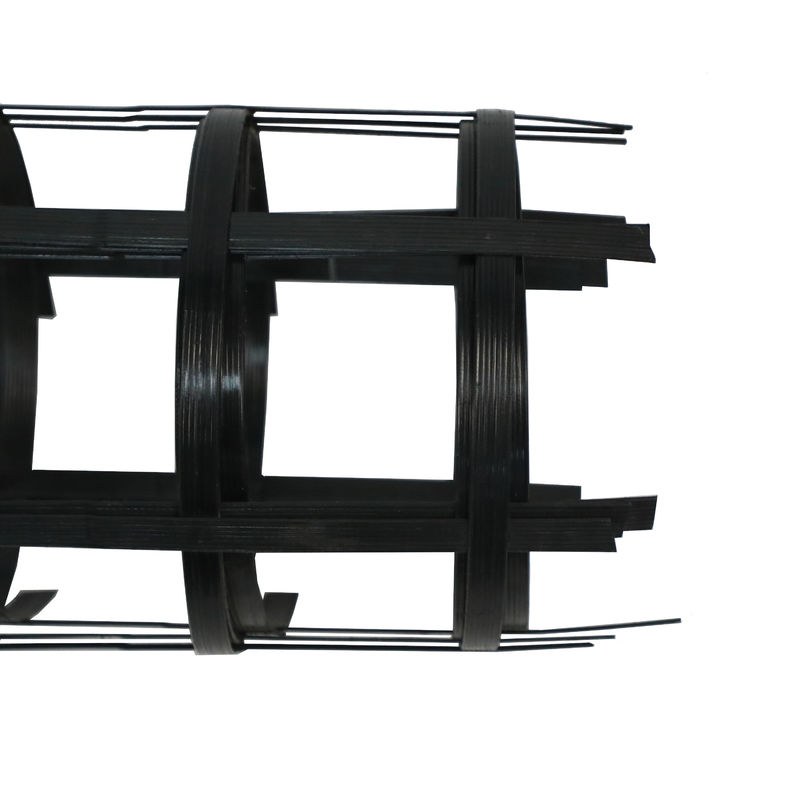

50kn/m-50kn/m High Strength Biaxial Polyester Pet Geogrid for Road Subgrades
Product Description
Woven pet geogrid is created through interlacing, usually at right angles, two or more yarns or filaments.
Exterior of pet grid is coated with polymer or nontoxic substance material for uv ,acid and alkali resistance and prevents the bio-decomposition.
Pet grid is widely introduced to the various fields of civil engineering, transportation engineering, and environment issues. The reinforced steep slopes , reinforced retaining earth walls, reinforced embankments, reinforced abutments and piers are typical applications where geogrids are used. The resulting grid structure possesses large openings that enhance interaction with filling material.
| Product/specification | longitudinal/cross each linear meter tensile yield strength,kN/m | longitudinal/lateral 2% elongation of tensile force,kN/m | longitudinal/lateral 5% elongation of tensile force,kN/m | yield elongation % |
| PET40-40 | ≥ 40 | ≥ 20 | ≥ 36 | ≤ 10 |
| PET45-45 | ≥ 45 | ≥ 22 | ≥ 40 | |
| PET50-50 | ≥ 50 | ≥ 24 | ≥ 44 | |
| PET60-60 | ≥ 60 | ≥ 30 | ≥ 54 | |
| PET80-80 | ≥ 80 | ≥ 40 | ≥ 72 | |
| PET100-100 | ≥ 100 | ≥ 50 | ≥ 90 | |
| welding point limit stripping force, N | ≥ 100 | |||
1.For strengthening weak sub grades of high-grade roads and railways, and the separation of different foundation soil materials.
2.For the reinforcement of riverbanks and bank slopes.
3.For the enhancement of a variety of foundations.
4.For strengthening of road bridges.
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days . It is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance ,balance before shippment.
