PP Biaxial Geogrid Plastic Civil Engineering Construction Geogrids for Reinforcement Road

PP Biaxial Geogrid Plastic Civil Engineering Construction Geogrids for Reinforcement Road

Place of Origin:

China

Brand Name:

zhongloo

Certification:

SGS

Model Number:

biaxial geogrid

Contact Us

Request A Quote
Product Details
Product Name:
Biaxial Geogrid
Material:
100% PP (polypropylene)
Width Roll:
2/3.95/5/5.9m
Length Roll:
50m-100m
The Elongation Ratio:
Not More Than 10%
Classification:
Plastic Geogrid
Color:
Black,green
Mesh Size (mm):
12.7*12.7mm. 25.4*25.4mm
Transport Package:
Black PE Film Or Woven Bags For Outside Packag
Tensile Strength:
15KN-50KN
Product Description

PP Biaxial Geogrid Plastic Civil Engineering Construction Geogrids for Reinforcement Road



Product Introduction

Plastic Biaxial Geogrid is mainly manufactured from polypropylene or high density polyethylene, which are all UV stabilized,chemical and biological resistance. Biaxial geogrid is mainly used in the construction of roadway, highway,railway,slopes for groundstabilization and subgrade reinforcement. It is extruded into sheet and then punched into regular mesh pattern and finally stretched. According to the stretched direction, it can be divided into Uniaxial Geogrid and Biaxial Geogrid.

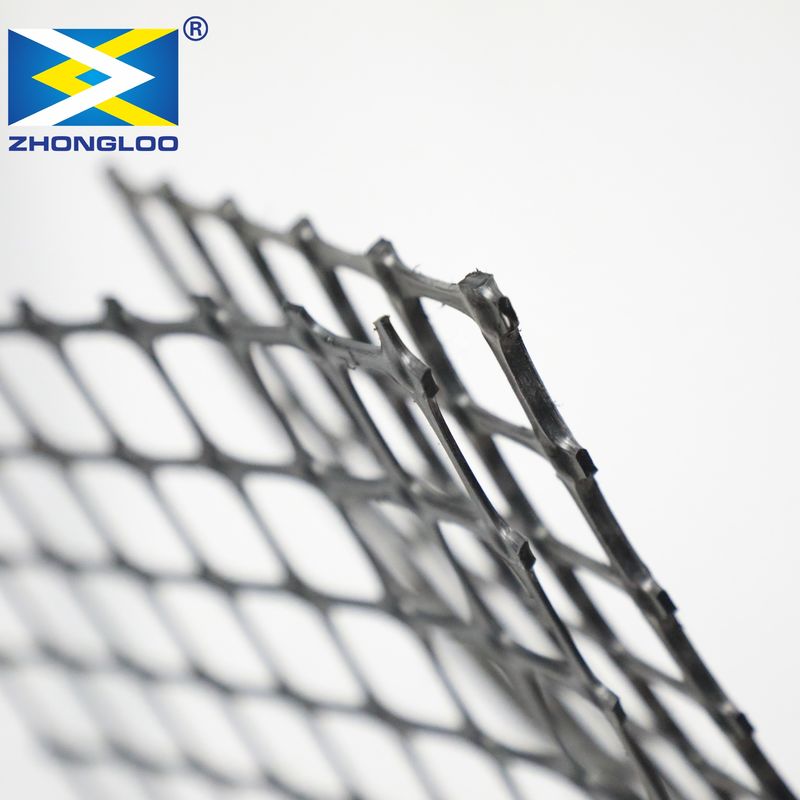

PP Biaxial Geogrid Plastic Civil Engineering Construction Geogrids for Reinforcement Road 0

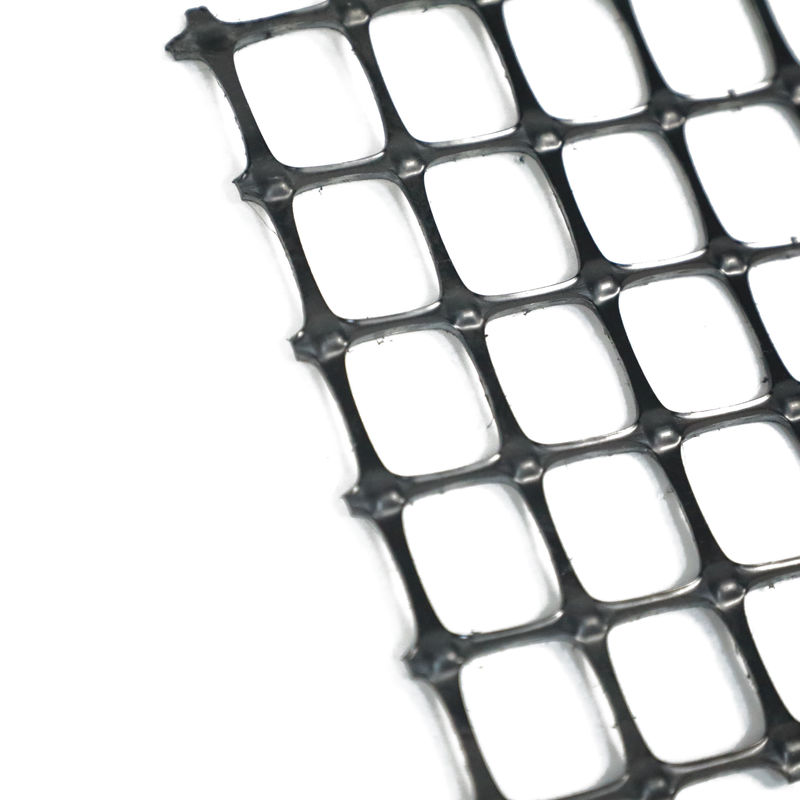

PP Biaxial Geogrid Plastic Civil Engineering Construction Geogrids for Reinforcement Road 1



Technical parameters



MODEL TGSG15-15 TGSG20-20 TGSG30-30 TGSG40-40 TGSG45-45 TGSG50-50
Mass per
Unit Area (g/m2)
300±30 330±30 400±40 500±50 550±50 600±50
Width (m) 1-6m
Tensile Yield Force per Linear Meter (KN/m) (MD) 15 20 30 40 45 50
Tensile Yield Force per Linear Meter(KN/m) (CD) 15 20 30 40 45 50
(MD)Yield Elongation (%)≤ 15
(CD)Yield Elongation (%)≤ 13
Strength at 2% Strain, (KN/m)≥(MD) 5 8 11 15 18 19
Strength at 2% Strain(KN/m) ≥(CD) 7 10 13 17 20 24
Strength at 5% Strain (KN/m) ≥(MD) 8 15 24 30 35 39
Strength at 5% Strain (KN/m) ≥(CD) 10 16 25 31 36 40
Mesh Size (mm) 30*30 36*38 34*36 34*36 40*40 40*40
Remark Special specifications can be customized according to the contract.



Application
1. It is applicable to subgrade reinforcement and Pavement Reinforcement of various highways, railways and airports;

2. It is applicable to the foundation reinforcement of permanent bearing such as large parking lot and wharf freight yard;

3. It is applicable to the secondary reinforcement of the soil slope after the reinforcement of unidirectional tensile geogrid to
further strengthen the soil slope and prevent water and soil loss;

4. Applicable to Culvert Reinforcement;

5. It is suitable for slope reinforcement of railway and highway;

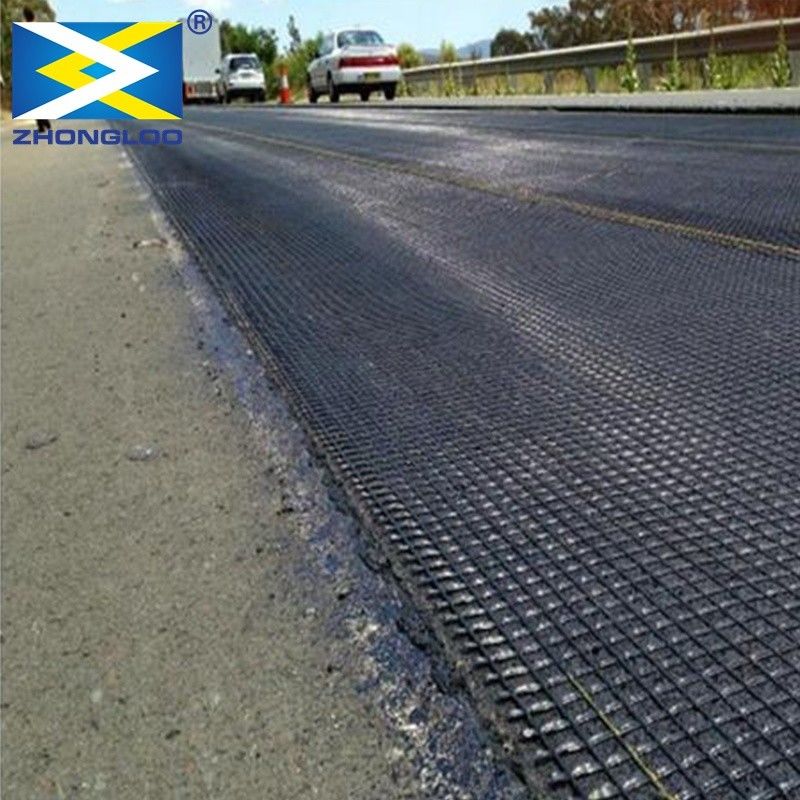

PP Biaxial Geogrid Plastic Civil Engineering Construction Geogrids for Reinforcement Road 2

FAQ



Q : Are you a factory or trading company?

A : We are a professional manufacturer that specialized in geomembrane, geotextile, composite geomembrane etc with ISO9001 certificate more than 20 years.

Q : Could you send the sample before order confirmation?

A : Yes, we'd love to send a free sample to you for an evaluation if you need.

Q : How about the delivery time?

A : General within 3-7 days after received the deposit.

Q : Can you produce the product according to customers' requirements?

A : Sure, we are professional manufacturer, OEM and ODM are both welcome.



Please contact me for more info today!
