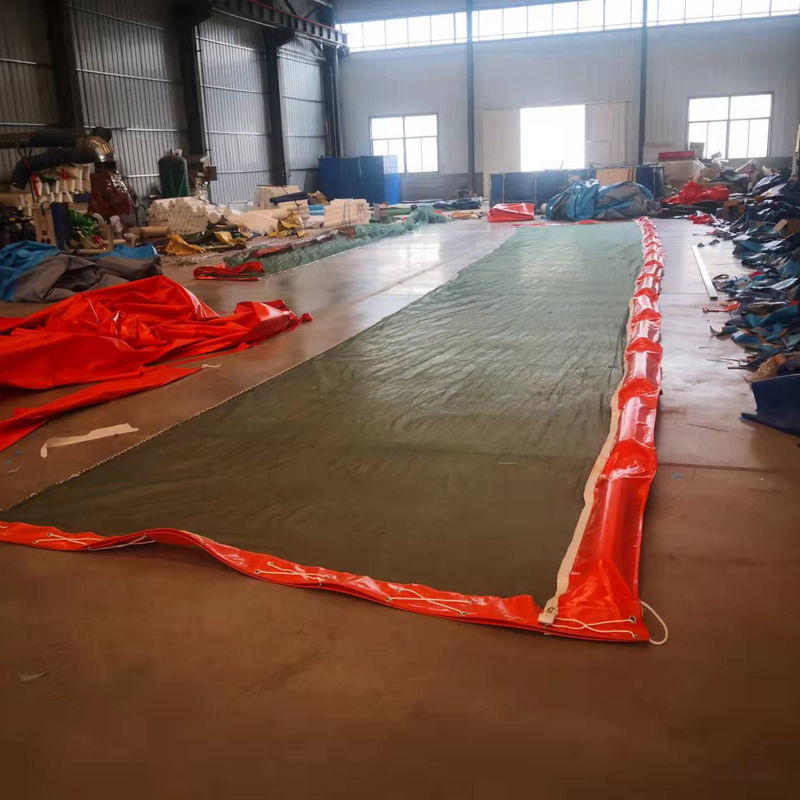

Marine Dredging PVC Floating Silt Curtain For Water Silt
Product Description

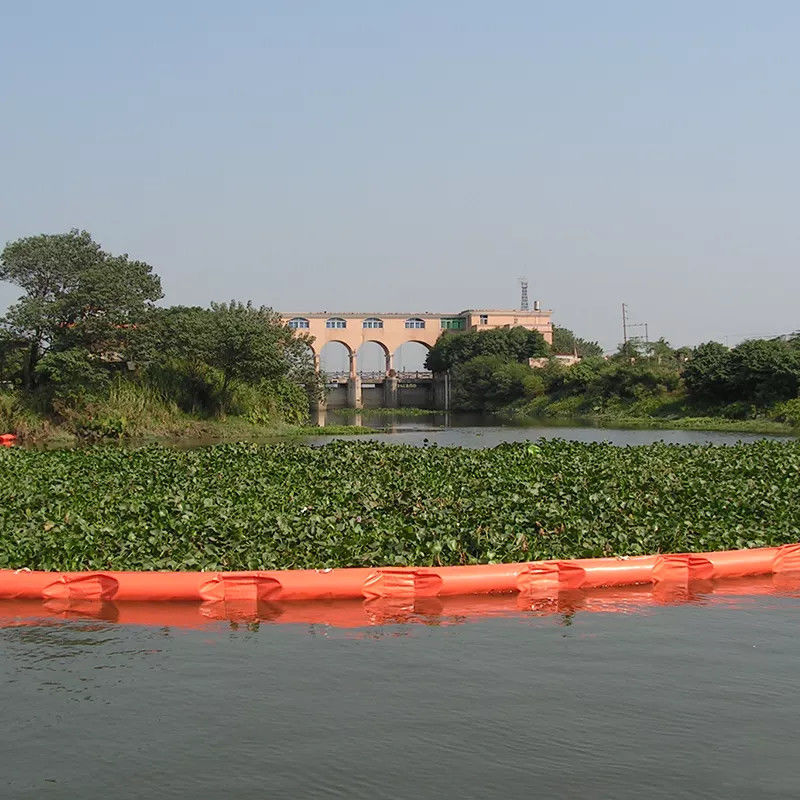

Silt curtains (also called turbidity curtains, silt screens or silt barricades) are vertical barriers positioned within the water that function to contain the fine particles of silt that are discharged into the water from dredging, construction or reclamation activities.
Silt curtains are useful tools in almost any water environment. There are three groups of silt curtains, named type I, type II and type III, with I being the lightest and III the most heavy-duty silt curtain. Qualified professions will analyze a variety of factors such as water flow speed, waves, wind, and project type and duration, to help you to decide which silt curtain is needed for your project.
Technical Parameter
| PVC Flotation Oil Boom Specification | ||||||||
| Model | FOB-650 | FOB-700 | FOB-750 | FOB-800 | FOB-900 | FOB-950 | FOB-1000 | FOB-1100 |
| freeboard | 180mm | 260mm | 250mm | 330mm | 325mm | 320mm | 160mm | 250mm |
| sea gauge | 320mm | 400mm | 410mm | 540mm | 650mm | 770mm | 340mm | 500mm |
| standard length | 20m15m,10m | |||||||
| standard | 20KN | 40KN | 55KN | 65KN | 75KN | 85KN | 20KN | 35KN |
| strength | ||||||||
| scale of submerged weight | 3.9 | 5.6 | 4.9 | 6.2 | 5.6 | 5.5 | 3.2 | 4.2 |
| weight | 3.7kg/m | 6.2kg/m | 7.1kg/m | 8.4kg/m | 9.3kg/m | 9.5kg/m | 3.3kg/m | 4.5kg/m |
| Max. wave resisted | 0.5m | 1m | 1.5m | 1.8m | 2m | 1m | 0.5m | 0.5m |
| Max. wind speed resisted | 10m/s | 15m/s | 15m/s | 18m/s | 18m/s | 20m/s | 10m/s | 10m/s |
| Max. flow velocity resisted | 1 | 1.5 | 2 | 2Kn | 2.5Kn | 2.5Kn | 1 | 1 |
| 20m/60m Packing | 1*1*0.6 | 1.2*1*1 | 1.3*1.1*1.1 | 1.4*1.5*1.2 | 1.4*1.6*1.3 | 1.4*1.7*1.4 | 1.4*1.7*0.8 | 1.4*1.7*1.2 |
Features:
Control of sediment and run off from marine, construction sites;
Silt curtain for turbidity control is easy to operation;
Effectively protect ecological environment;
applications include:
Bridge construction or repair
Rock wall construction or repair
Jetty construction or repair
Civil works in or adjacent to waterways
Coastal or marine dredging
Excavation
Sediment pond management
