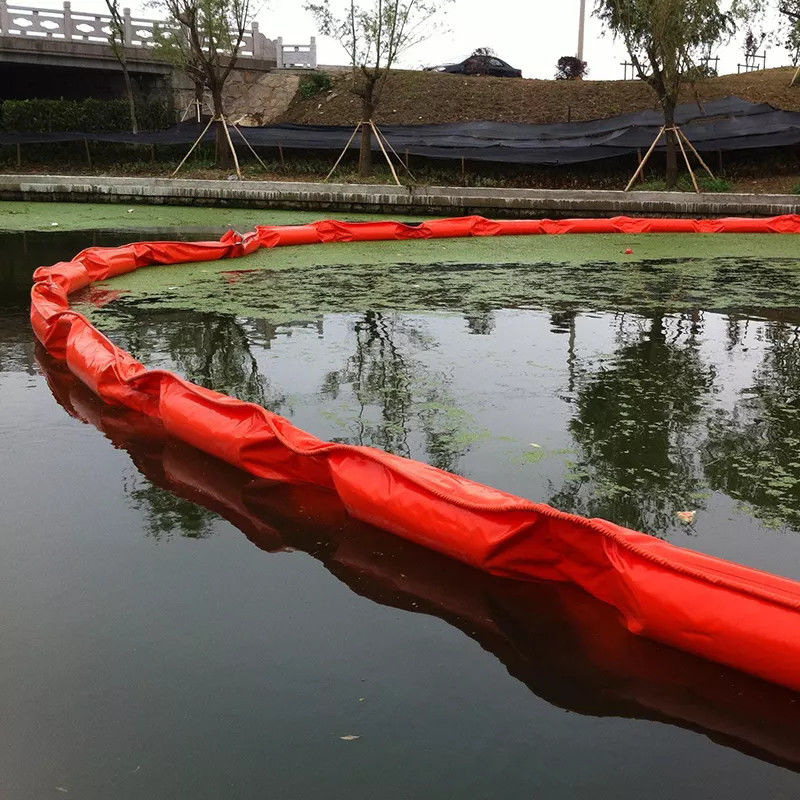

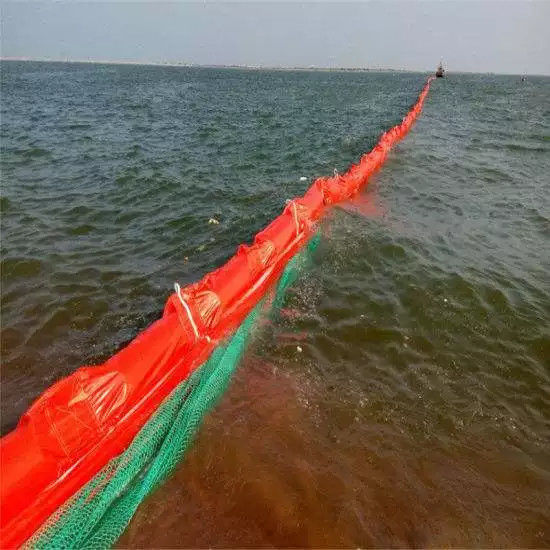

Permeable Floating Silt Curtain For Turbidity Control In Water
Product Description
Silt curtains (also called turbidity curtains, silt screens or silt barricades) are vertical barriers positioned within the water that function to contain the fine particles of silt that are discharged into the water from dredging, construction or reclamation activities.
Silt curtains are useful tools in almost any water environment. There are three groups of silt curtains, named type I, type II and type III, with I being the lightest and III the most heavy-duty silt curtain. Qualified professions will analyze a variety of factors such as water flow speed, waves, wind, and project type and duration, to help you to decide which silt curtain is needed for your project.
Technical Parameter
| PVC Flotation Oil Boom Specification | ||||||||
| Model | FOB-650 | FOB-700 | FOB-750 | FOB-800 | FOB-900 | FOB-950 | FOB-1000 | FOB-1100 |
| freeboard | 180mm | 260mm | 250mm | 330mm | 325mm | 320mm | 160mm | 250mm |
| sea gauge | 320mm | 400mm | 410mm | 540mm | 650mm | 770mm | 340mm | 500mm |
| standard length | 20m15m,10m | |||||||
| standard | 20KN | 40KN | 55KN | 65KN | 75KN | 85KN | 20KN | 35KN |
| strength | ||||||||
| scale of submerged weight | 3.9 | 5.6 | 4.9 | 6.2 | 5.6 | 5.5 | 3.2 | 4.2 |
| weight | 3.7kg/m | 6.2kg/m | 7.1kg/m | 8.4kg/m | 9.3kg/m | 9.5kg/m | 3.3kg/m | 4.5kg/m |
| Max. wave resisted | 0.5m | 1m | 1.5m | 1.8m | 2m | 1m | 0.5m | 0.5m |
| Max. wind speed resisted | 10m/s | 15m/s | 15m/s | 18m/s | 18m/s | 20m/s | 10m/s | 10m/s |
| Max. flow velocity resisted | 1 | 1.5 | 2 | 2Kn | 2.5Kn | 2.5Kn | 1 | 1 |
| 20m/60m Packing | 1*1*0.6 | 1.2*1*1 | 1.3*1.1*1.1 | 1.4*1.5*1.2 | 1.4*1.6*1.3 | 1.4*1.7*1.4 | 1.4*1.7*0.8 | 1.4*1.7*1.2 |
Advantage:
1. Good stress state, high overall strength and long service life.
2. Good water posture, stable, strong oil retention ability.
3. Good wave riding.Easy to place.
4. Easy to clean and maintain.
5. Double-sided coated PVC reinforced plastic cloth is the column material.
6. Sealing, quick connection, time and labor saving, in line with international standards.
7. The upper, middle and lower ridges, stiffening belts and counterweight chains are longitudinal force elements. Each section of the oil boom has a fixed anchor seat, so that the skirt of the oil boom forms a concave surface of underwater oil stagnation in the water flow, and the flexible section of the oil boom forms a concave surface of water oil stagnation.
8. Crossbar type float with flexible sections between floats.
9. Each section is 20 meters, with convenient intersection connection.
