Marine Floating River Turbidity Oil Spill Containment Boom Silt Curtain
Product Description

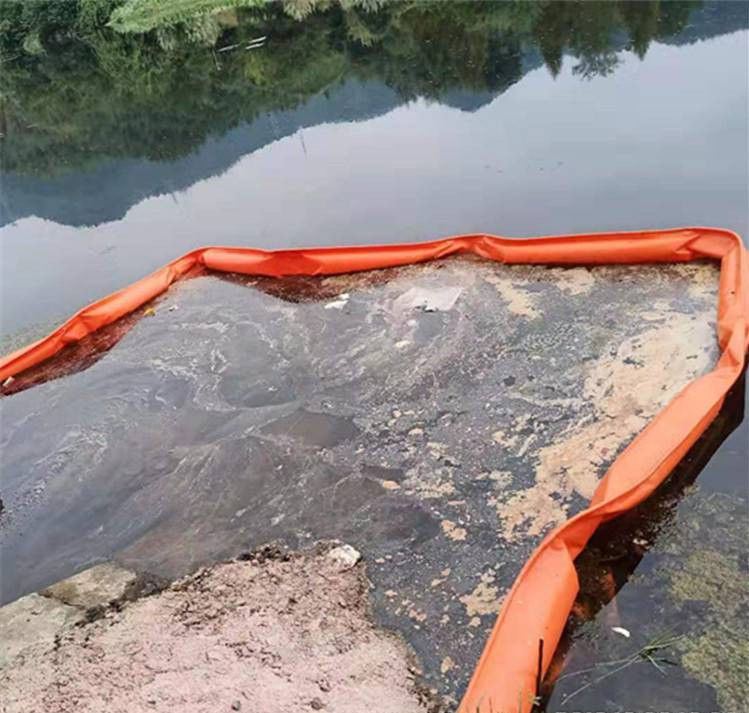

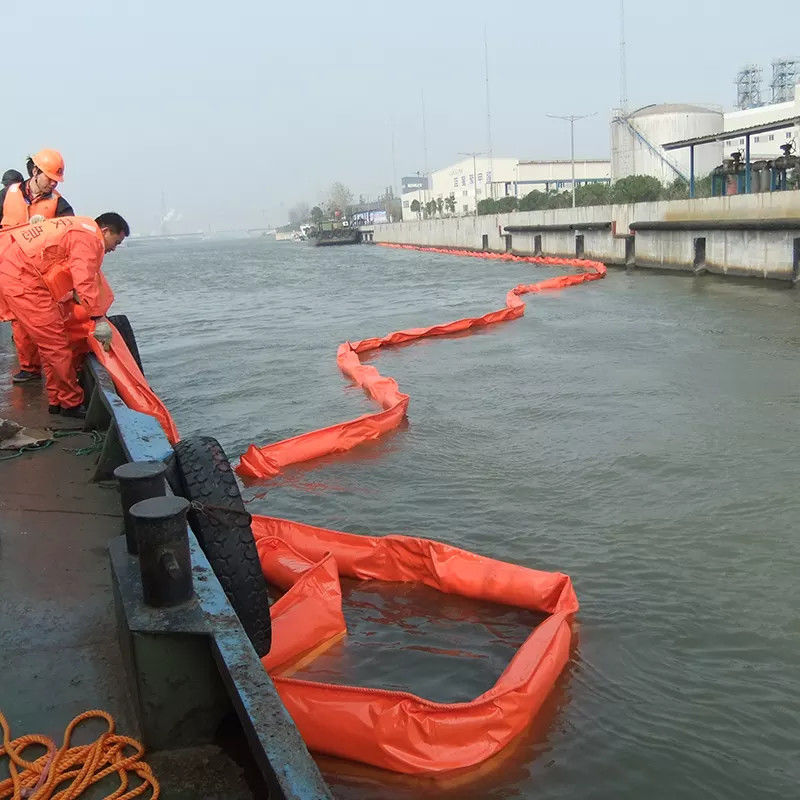

Silt screen are floating barriers used in marine construction, dredging, and reclamation project to control the silt and sediment in a body of water.Turbidity curtain can be set up to keep construction areas in compliance and protect the environment.
Permeable floating silt curtain is made by permeable or impermeable fabric and are fabricated to any size that will fit your specific application. Turbidity barriers can support customization.
Permeable turbidity curtain are ideal for containing silt and turbidity in moving water applications. These oil spill containment boom are used to control and contain silt / sediment within an immediate work area thereby preventing anything from floating down stream and affecting marine life.Floating silt barrier for turbidity control can protect our waters and environment whenever construction occurs in a marine environment.
Technical Parameter
PVC Flotation Oil Boom Specification | ||||||||
Model | FOB-650 | FOB-700 | FOB-750 | FOB-800 | FOB-900 | FOB-950 | FOB-1000 | FOB-1100 |
freeboard | 180mm | 260mm | 250mm | 330mm | 325mm | 320mm | 160mm | 250mm |
sea gauge | 320mm | 400mm | 410mm | 540mm | 650mm | 770mm | 340mm | 500mm |
standard length | 20m15m,10m | |||||||
standard | 20KN | 40KN | 55KN | 65KN | 75KN | 85KN | 20KN | 35KN |
strength | ||||||||
scale of submerged weight | 3.9 | 5.6 | 4.9 | 6.2 | 5.6 | 5.5 | 3.2 | 4.2 |
weight | 3.7kg/m | 6.2kg/m | 7.1kg/m | 8.4kg/m | 9.3kg/m | 9.5kg/m | 3.3kg/m | 4.5kg/m |
Max. wave resisted | 0.5m | 1m | 1.5m | 1.8m | 2m | 1m | 0.5m | 0.5m |
Max. wind speed resisted | 10m/s | 15m/s | 15m/s | 18m/s | 18m/s | 20m/s | 10m/s | 10m/s |
Max. flow velocity resisted | 1 | 1.5 | 2 | 2Kn | 2.5Kn | 2.5Kn | 1 | 1 |
20m/60m Packing | 1*1*0.6 | 1.2*1*1 | 1.3*1.1*1.1 | 1.4*1.5*1.2 | 1.4*1.6*1.3 | 1.4*1.7*1.4 | 1.4*1.7*0.8 | 1.4*1.7*1.2 |
Features:
Control of sediment and run off from?marine?construction sites;
Silt curtain for turbidity control is easy to operation;
Effectively protect ecological environment;
Applications include:
Bridge construction or repair
Rock wall construction or repair
Jetty construction or repair
Civil works in or adjacent to waterways
Coastal or marine dredging
Excavation
Sediment pond management
