20m 30m Floating Silt Screens Oil Containment Boom Turbidity Curtains

20m 30m Floating Silt Screens Oil Containment Boom Turbidity Curtains

20m silt screens

silt screens Boom

20m floating silt boom

Place of Origin:

China

Brand Name:

zhongloo

Certification:

ISO9001

Model Number:

Floating Silt Curtain

Contact Us

Request A Quote
Product Details
Key Word:
River Sea Oil Boom
Feature:
Eco-Friendly
Usage:
Drinking Water Storage
Section Length:
15m/20m/30m
Color:
Orange
HS Code:
8907900090
Application:
River,Sea,Lake Etc
MOQ:
100m
Product Description

Pvc Floating Oil Containment Boom Floating Turbidity Curtains And Silt Curtains



Product Description

Permeable floating silt curtain are the premium turbidity products to keep sediment under control for today's demanding marine construction and industrial environment. We offer a wide variety of pervious and impervious oil spill containment boom that meet?internation requirements .A silt barrier is a land or water based product designed to contain silt during construction or marine repair projects. For water areas, Triton floating turbidity barriers (also known as silt screen, silt booms, or turbidity curtains) surround and contain suspended silt and allow it time to settle. For land based jobs, staked silt fence form a barrier for runoff filtration. Correctly installing these floating silt curtain in silt retention helps you stay in compliance by containing silt and reducing stormwater pollution.
Turbidity curtain yellow can be used to control, contain, deflect or recover floating debris. Built to meet the specific needs and requirements? these barriers have effectively been used with hyacinth, duckweed, trash, plastic, cranberries, fish and marine life, logs and debris. Whether you need a seaweed protection barrier, trash control, aquatic plant containment or even marine life control, these yellow floating silt curtain can meet your needs.

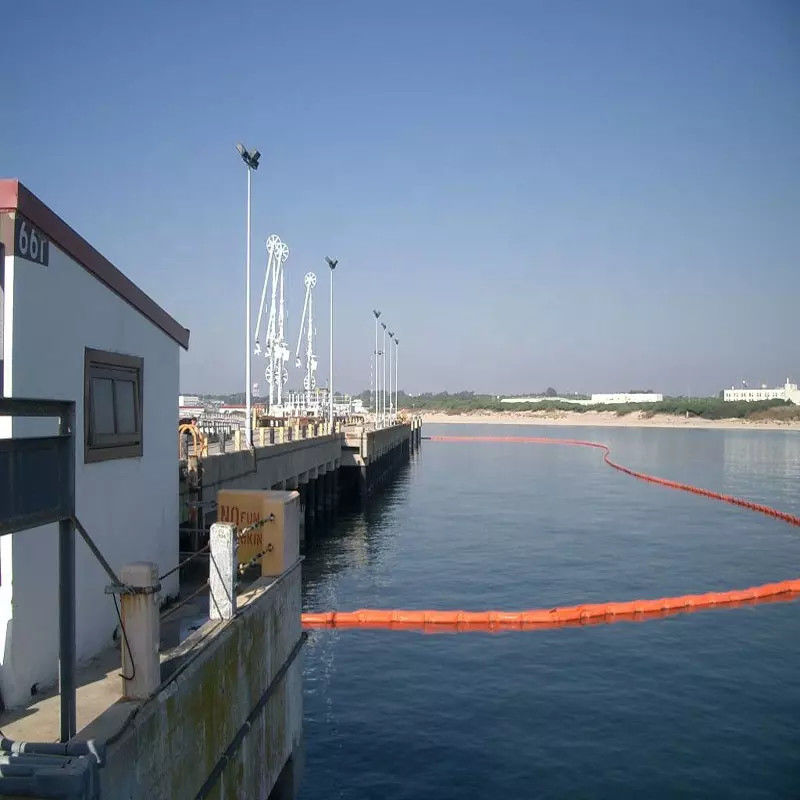

20m 30m Floating Silt Screens Oil Containment Boom Turbidity Curtains 0



Technical Parameter



PVC Flotation Oil Boom Specification
Model FOB-650 FOB-700 FOB-750 FOB-800 FOB-900 FOB-950 FOB-1000 FOB-1100
freeboard 180mm 260mm 250mm 330mm 325mm 320mm 160mm 250mm
sea gauge 320mm 400mm 410mm 540mm 650mm 770mm 340mm 500mm
standard length 20m15m,10m
standard 20KN 40KN 55KN 65KN 75KN 85KN 20KN 35KN
strength
scale of submerged weight 3.9 5.6 4.9 6.2 5.6 5.5 3.2 4.2
weight 3.7kg/m 6.2kg/m 7.1kg/m 8.4kg/m 9.3kg/m 9.5kg/m 3.3kg/m 4.5kg/m
Max. wave resisted 0.5m 1m 1.5m 1.8m 2m 1m 0.5m 0.5m
Max. wind speed resisted 10m/s 15m/s 15m/s 18m/s 18m/s 20m/s 10m/s 10m/s
Max. flow velocity resisted 1 1.5 2 2Kn 2.5Kn 2.5Kn 1 1
20m/60m Packing 1*1*0.6 1.2*1*1 1.3*1.1*1.1 1.4*1.5*1.2 1.4*1.6*1.3 1.4*1.7*1.4 1.4*1.7*0.8 1.4*1.7*1.2






Advantage:

1. Good stress state, high overall strength and long service life.
2. Good water posture, stable, strong oil retention ability.
3. Good wave riding.Easy to place.
4. Easy to clean and maintain.
5. Double-sided coated PVC reinforced plastic cloth is the column material.
6. Sealing, quick connection, time and labor saving, in line with international standards.
7. The upper, middle and lower ridges, stiffening belts and counterweight chains are longitudinal force elements. Each section of the oil boom has a fixed anchor seat, so that the skirt of the oil boom forms a concave surface of underwater oil stagnation in the water flow, and the flexible section of the oil boom forms a concave surface of water oil stagnation.
8. Crossbar type float with flexible sections between floats.
9. Each section is 20 meters, with convenient intersection connection.

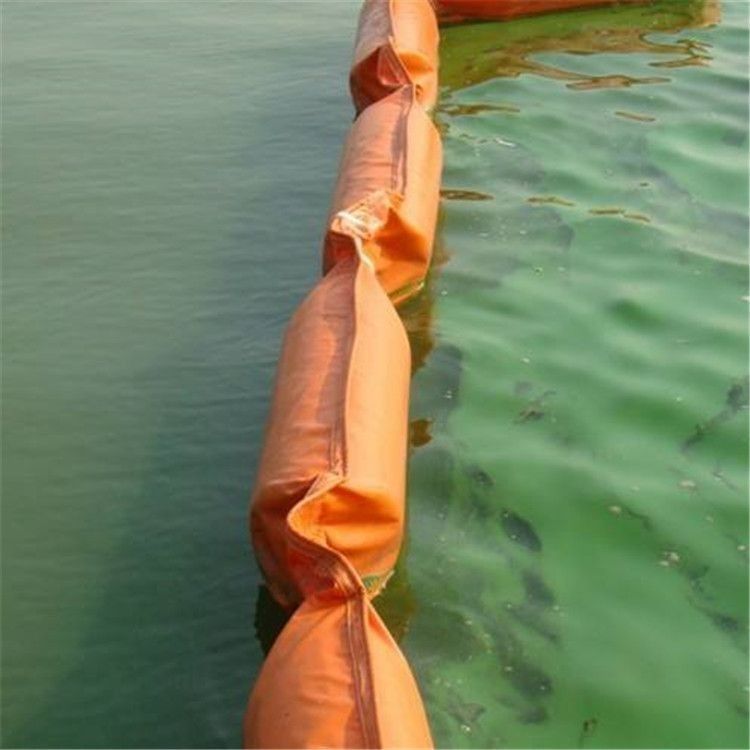

20m 30m Floating Silt Screens Oil Containment Boom Turbidity Curtains 1



FAQ:

Q:Can you send samples?

A:Yes, we are very happy to provide you with free samples to check the quality of our products.

Q:Are you a manufacturer or a trading company?
A:Our company located in Hefei,Anhui Province,with are registered capital of 52 miion yuan. It is a professional
manufacturer of Silt curtain and other products. So we have the competitive price with best quality.

Q:Can you produce the product according to customers' requirements?
A:Sure,we are professional manufacturer, OEM and ODM are both welcome.

Q:How long is the delivery time?
A:General within 3-7 days after receiving the deposit.

Q:How to control product quality?
A:Our factory adopts lean management, products from the beginning to the end of the production process have strict qualitycontrol. All products must be strictly tested before packing and shipping.
