Woven Geotextile Tube Geotube for Sludge Dewatering Good Price
Product Description

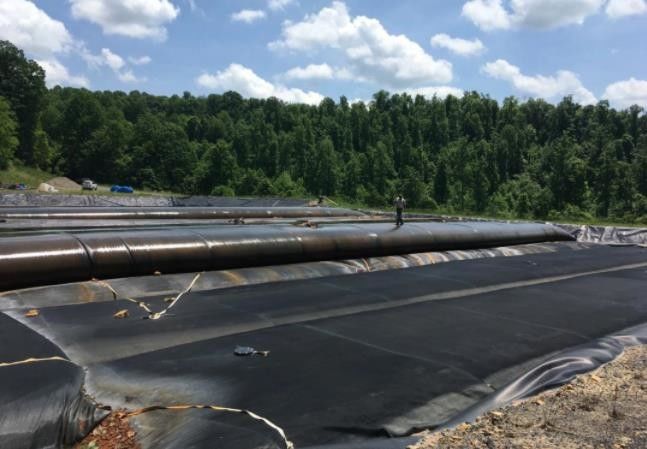

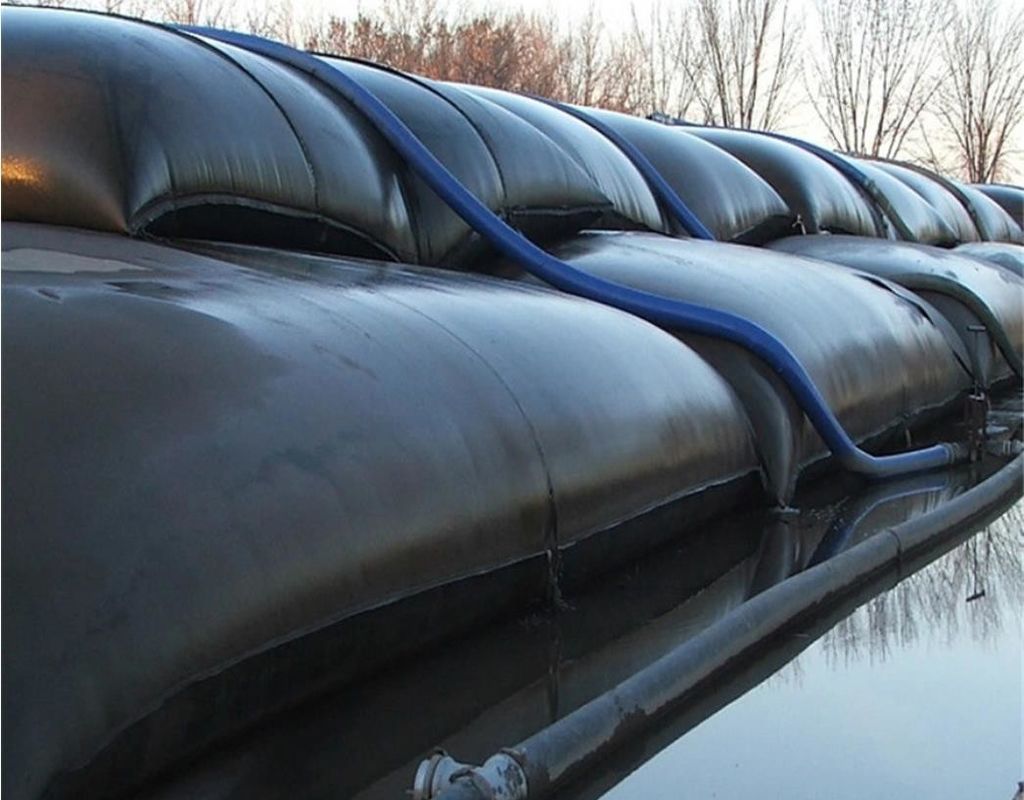

Geotube dewatering tubes, sometimes known as geobags, are used for sludge dewatering projects of all sizes and there is good reason - simplicity and low cost.
There are no belts, gears, or complicated mechanics. Geotube containers use an engineered textile that is designed for dewatering of high moisture content sludge and sediment. They are available in many sizes, depending on your volume and space requirements.
| Item | Unit | Testing Standard | Technical Parameters | ||
| GT70X95B | GT70X95 | ||||
| Breaking strength | MD | KN/m | ISO 10319-2015 | 85 | 85 |
| CD | KN/m | ISO 10319-2015 | 105 | 115 | |
| Elongation of break | MD | % | ISO 10319-2015 | 13 | 13 |
| CD | % | ISO 10319-2015 | 8 | 8 | |
| Sewing Tensile Strength | KN/m | ISO 10321-2008 | 70 | 90 | |
| Static Bursting Strength(CBR) | KN | GB/T 14800-2010 | 8 | 9 | |
| Equivalent hole size(O90) | mm | GB/T 14799-2005 | 0.5 | 0.45 | |
| Permeability(Q50) | L/m2/s | GB/T 15789-2005 | 50 | 35 | |
| UV-resistance (500 Hours strength retention) | % | ASTMD4355-2014 | 90 | 90 | |
ADVANTAGES
High flow rate allows residual materials to dewater, whilst containing solids
Custom fabricated with seaming techniques that withstand pressure during pumping operations
pioneered the dewatering technology, spending years perfecting the technology and patenting circumferential seaming (which provides excellent strength for very large tubes under high pumping pressure)
Supported by design advice and guidance on polymer use for your sludge
Thousands of dewatering projects around the world have used Geotube units
