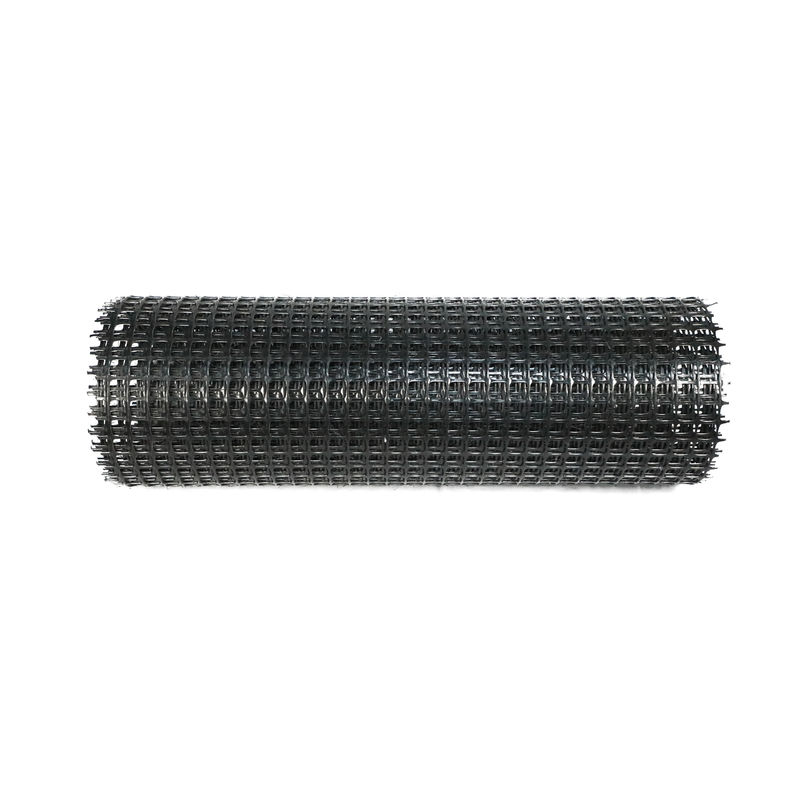

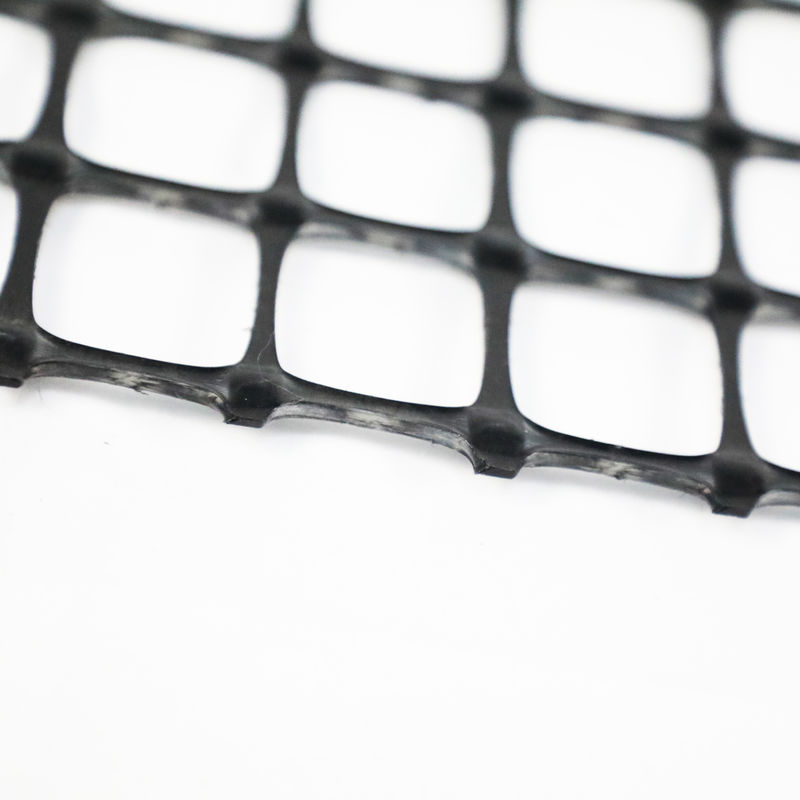

Earthwork Products Biaxial Stretch Plastic Geogrid For Reinforcement
Product Description
Geogrid is a geosynthetic material made of polymer, used to reinforce the soil behind the retaining wall. The geogrid is installed in the horizontal layer between the wall layers and extends into the soil behind the wall to stabilize the soil, thereby increasing the quality and stability of the wall system. The geogrid reinforced filling structure uses PP geogrid, which is made by extrusion and unidirectional stretching of high-density polyethylene. The high demand for geogrid and its application in construction is due to its good tensile strength and higher performance.
|
Biaxial Plastic Geogrid Technical Parameter (GB standard) |
||||||||
|
Item |
Specification |
|||||||
|
|
TGSG1515 |
TGSG2020 |
TGSG2525 |
TGSG3030 |
TGSG3535 |
TGSG4040 |
TGSG4545 |
TGSG5050 |
|
Vertical and horizontal tensile strength≥(KN/M) |
15 |
20 |
25 |
30 |
35 |
40 |
45 |
50 |
|
Tensile strength at 2% elongation≥(KN/M) |
5 |
7 |
9 |
10.5 |
12 |
14 |
16 |
17.5 |
|
Tensile strength at 5% elongation≥(KN/M) |
7 |
14 |
17 |
21 |
24 |
28 |
32 |
35 |
|
Tensile strength at 5% elongation≥(KN/M) |
15 |
|||||||
Features
1.With high tensile strength in longitudinal and transverse directions
2.The special structure provides a chain system to get more efficient bearing and spreading reinforce for the soft soil.
3.Adds strength and longevity to wall
4.Aids in prevention of early development of wall failure
5.Provides excellent stress transfer
