GB Standard PP Biaxial Geogrid Plastic Civil Engineering Construction

GB Standard PP Biaxial Geogrid Plastic Civil Engineering Construction

100m PP Biaxial Geogrid

GB standard PP Biaxial Geogrid

Civil Engineering Construction PP Geogrid

Brand Name:

zhongloo

Certification:

CE/ISO9001

Model Number:

Geogrid

Contact Us

Request A Quote
Product Details
Type:
Biaxial Geogrid
Warranty:
8 Years
Product Color:
White Black
Raw Material:
PP
Length:
100m
Design Style:
Modern
Product Description

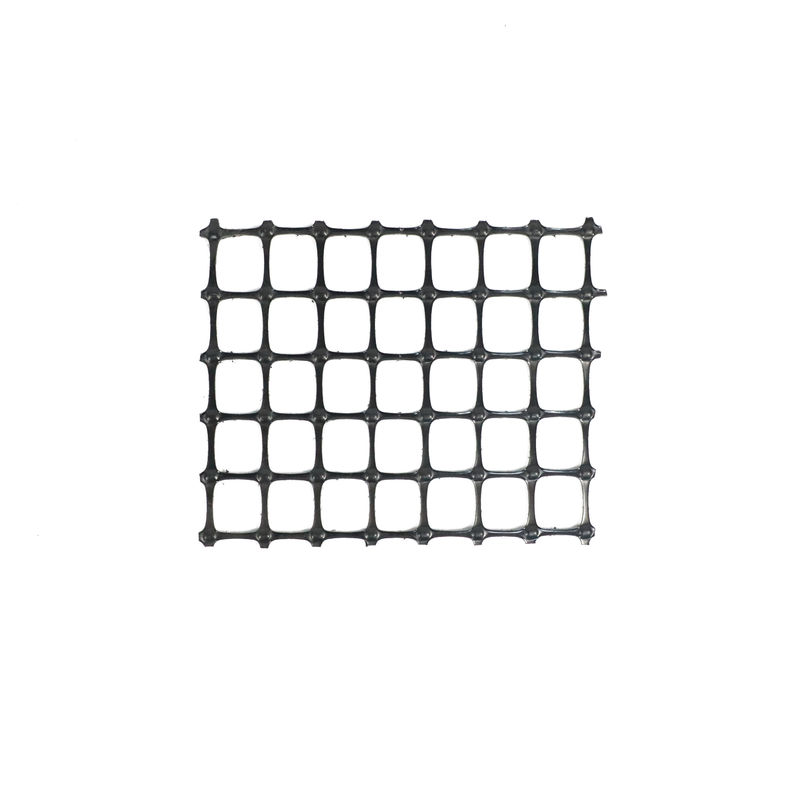

PP Biaxial Geogrid Plastic Civil Engineering Construction

Product Description

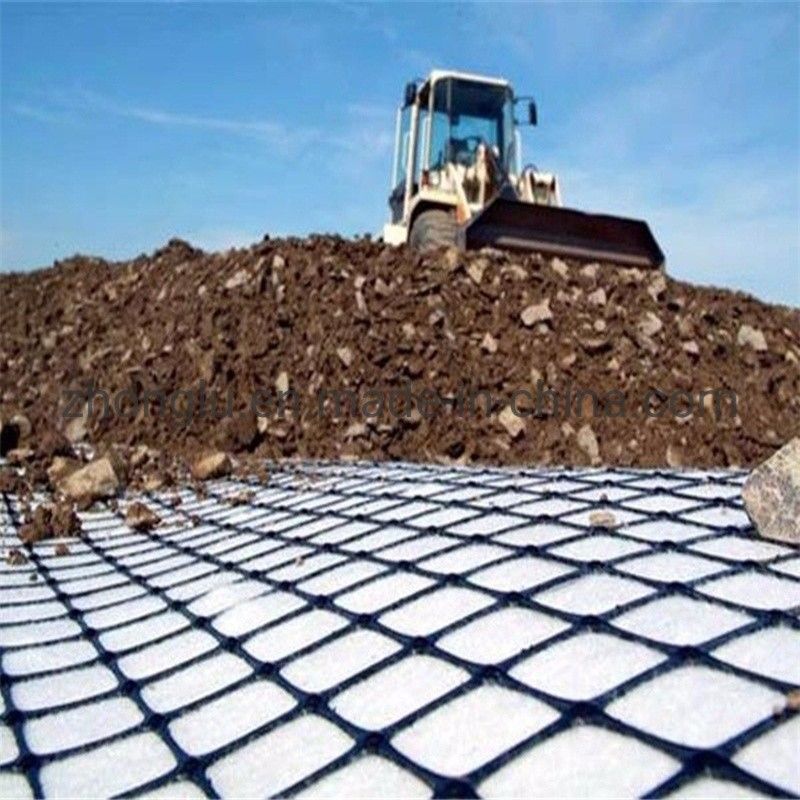

Geogrid is a geosynthetic material made of polymer, used to reinforce the soil behind the retaining wall. The geogrid is installed in the horizontal layer between the wall layers and extends into the soil behind the wall to stabilize the soil, thereby increasing the quality and stability of the wall system. The geogrid reinforced filling structure uses PP geogrid, which is made by extrusion and unidirectional stretching of high-density polyethylene. The high demand for geogrid and its application in construction is due to its good tensile strength and higher performance.



Biaxial Plastic Geogrid Technical Parameter (GB standard)

Item

Specification



TGSG1515

TGSG2020

TGSG2525

TGSG3030

TGSG3535

TGSG4040

TGSG4545

TGSG5050

Vertical and horizontal tensile strength≥(KN/M)

15

20

25

30

35

40

45

50

Tensile strength at 2% elongation≥(KN/M)

5

7

9

10.5

12

14

16

17.5

Tensile strength at 5% elongation≥(KN/M)

7

14

17

21

24

28

32

35

Tensile strength at 5% elongation≥(KN/M)

15



Features

High tensile strength


High tensile strength, high plane torsional modulus, good creep resistance, stable chemical properties

High coefficient of friction

High resistance to mechanical damage and durability, and large friction coefficient with sand and stone

The material soft

Convenient transportation, laying, easy lap positioning, saving project cost
