Product Description

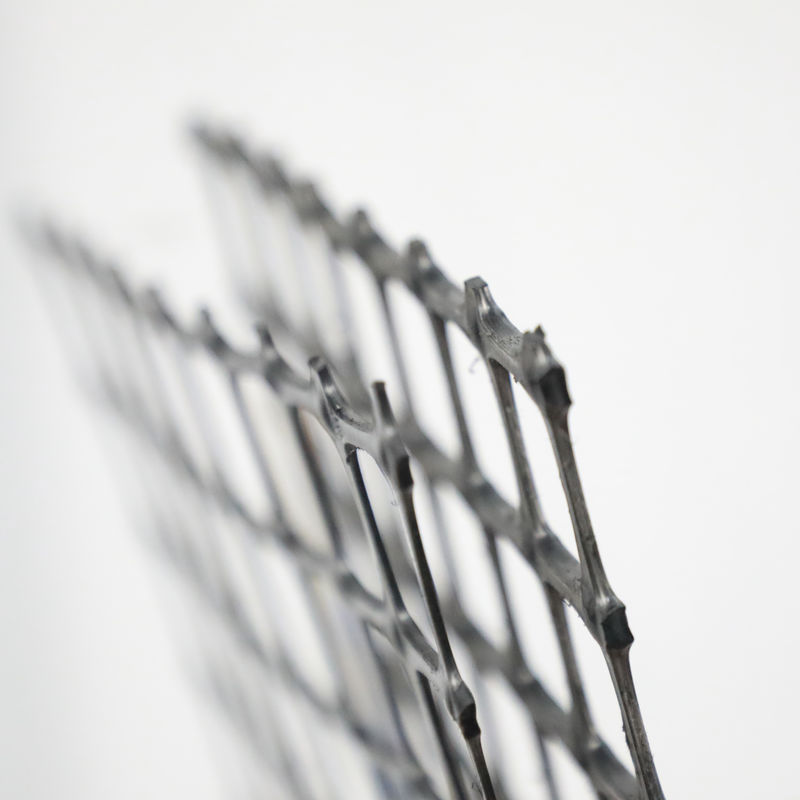

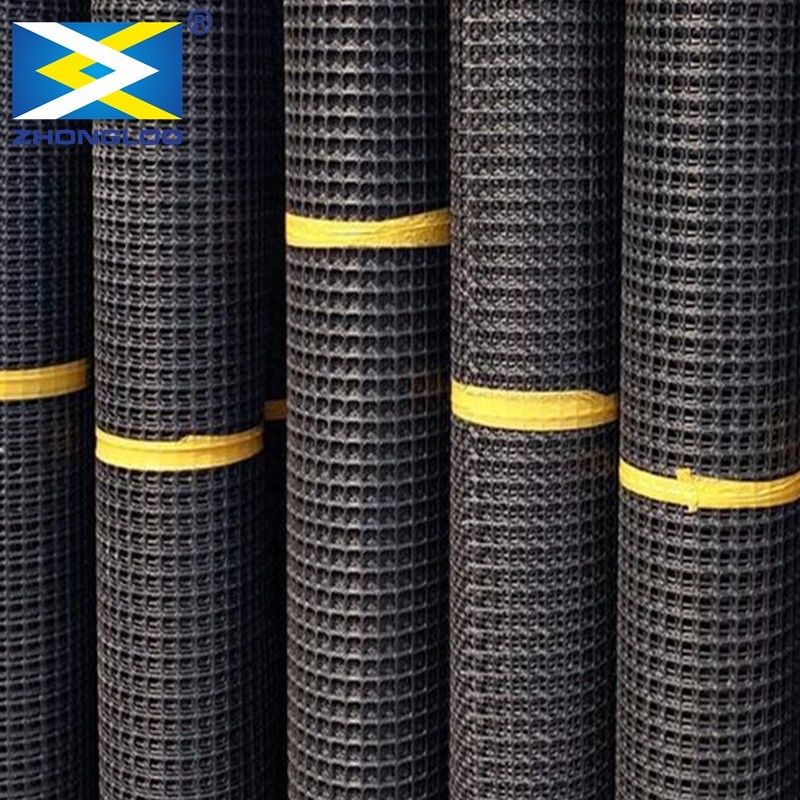

PP Biaxial Geogrid It is produced through the process of extruding, punching, heating, longitudinal stretching, and transverse stretching.
Product Parameters
| Index Properties | Test Method | Unit | 15/15 | 20/20 | 25/25 | 30/30 | 35/35 | 40/40 | 45/45 | 50/50 | |||||||||
| MD | CD | MD | CD | MD | CD | MD | CD | MD | CD | MD | CD | MD | CD | MD | CD | ||||
| Polymer | - | - | PP | PP | PP | PP | PP | PP | PP | PP | |||||||||
| Minimum Carbon Black | ASTM D 4218 | % | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | |||||||||
| Ultimate Tensile Strength | ASTM D 6637 | KN/M | 15 | 15 | 20 | 20 | 25 | 25 | 30 | 30 | 35 | 35 | 40 | 40 | 45 | 45 | 50 | 50 | |
| Elongation | ASTM D 6637 | % | 15 | 13 | 15 | 13 | 15 | 13 | 15 | 13 | 15 | 13 | 15 | 13 | 15 | 13 | 15 | 13 | |
| Tensile Strength @ 2% Strain | ASTM D 6637 | KN/M | 5 | 5 | 7 | 7 | 9 | 9 | 10.5 | 10.5 | 12 | 12 | 14 | 14 | 16 | 16 | 17.5 | 17.5 | |
| Tensile Strength @ 5% Strain | ASTM D 6637 | KN/M | 7 | 7 | 14 | 14 | 17 | 17 | 21 | 21 | 24 | 24 | 28 | 28 | 32 | 32 | 35 | 35 | |
Product Feature
Improving the bearing capacity of the foundation
Preventing cracking and subsiding
Convenient to construct, reducing cost and maintaining expense
Application&Installation
PP biaxial geogrids have been used in tens of thousands of projects worldwide, including roads, working platforms and reinforced foundations.
1,pavement subgrade stabilization.
2,Area/ground stabilization.
3,Pavement base reinforcement.
4,Working&load transfer platforms.
5,Reinforced granular foundation beds.
