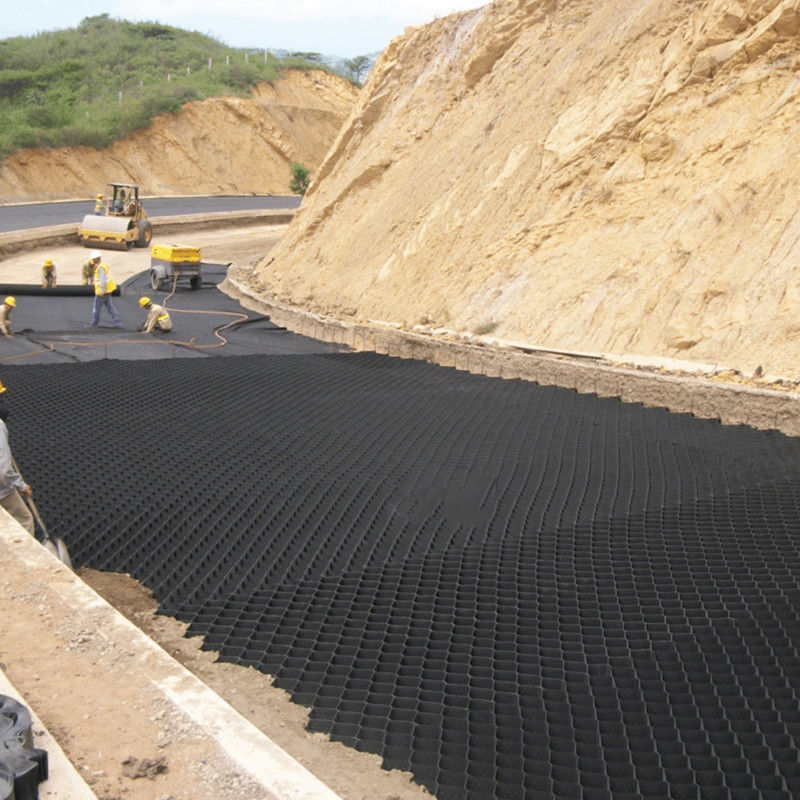

Anti Corrosion 50mm Hdpe Geocell For Soil Reinforcement Road Hill Slope

Anti Corrosion 50mm Hdpe Geocell For Soil Reinforcement Road Hill Slope

anti corrosion hdpe geocell

50mm hdpe geocell

Place of Origin:

China

Brand Name:

OEM

Certification:

ISO certificate

Model Number:

hdpe geocell

Contact Us

Request A Quote
Product Details
Model NO.:
Cell Depth: 50mm,100mm,150mm,200mm,250mm
Certification:
ISO
Specification:
Thickness:1.1-1.6mm,WELDING DISTANCE: 330mm-1000mm
Peeling Strength:
10kn/M, 14.2kn/M, 16.5kn/M, 20kn/M
Filler::
Concrete Materials, Soil & Rock
Application:
Retaining Wall, Dam, Railway, Highway
Product Description

Anti-Corrosion Plastic Cellular Confinement Systems HDPE Geocell for Soil Reinforcement Road Hill Slope

Product Description

High density polyethylene Geocell (HDPE Geocell) is a lightweight and flexible three-dimensional, expandable panels made from High Density Polyethylene (HDPE) strips which are ultrasonically bonded together to form an extremely strong configuration.

Width of the long strip is the height of the geocell, and the distance between two welding lines in the same side of the plate when the geocell is not expanded is welding distance.

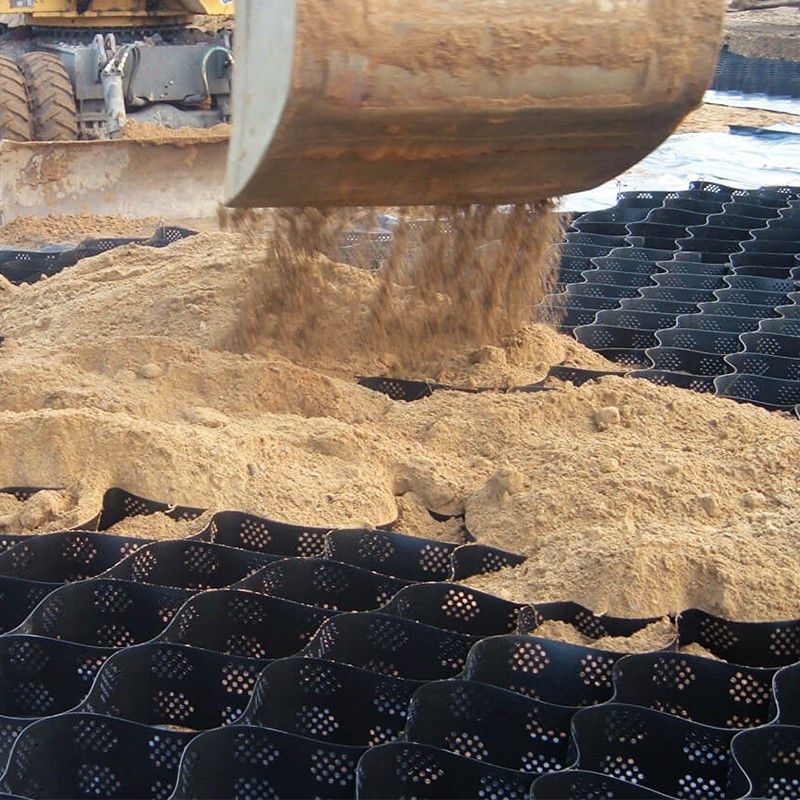

Zhonglu Geocell is three dimensional, honeycomb like structures manufactured from high density polyethylene and jointly welded by ultrasonic technique. It is flexible to fold during the transport and installation on construction site. The geocell nets will be filled with soils, granular, cements or other on-site infill materials when stretched into web structures, which has powerful and rigid confinement in the lateral and vertical sides.

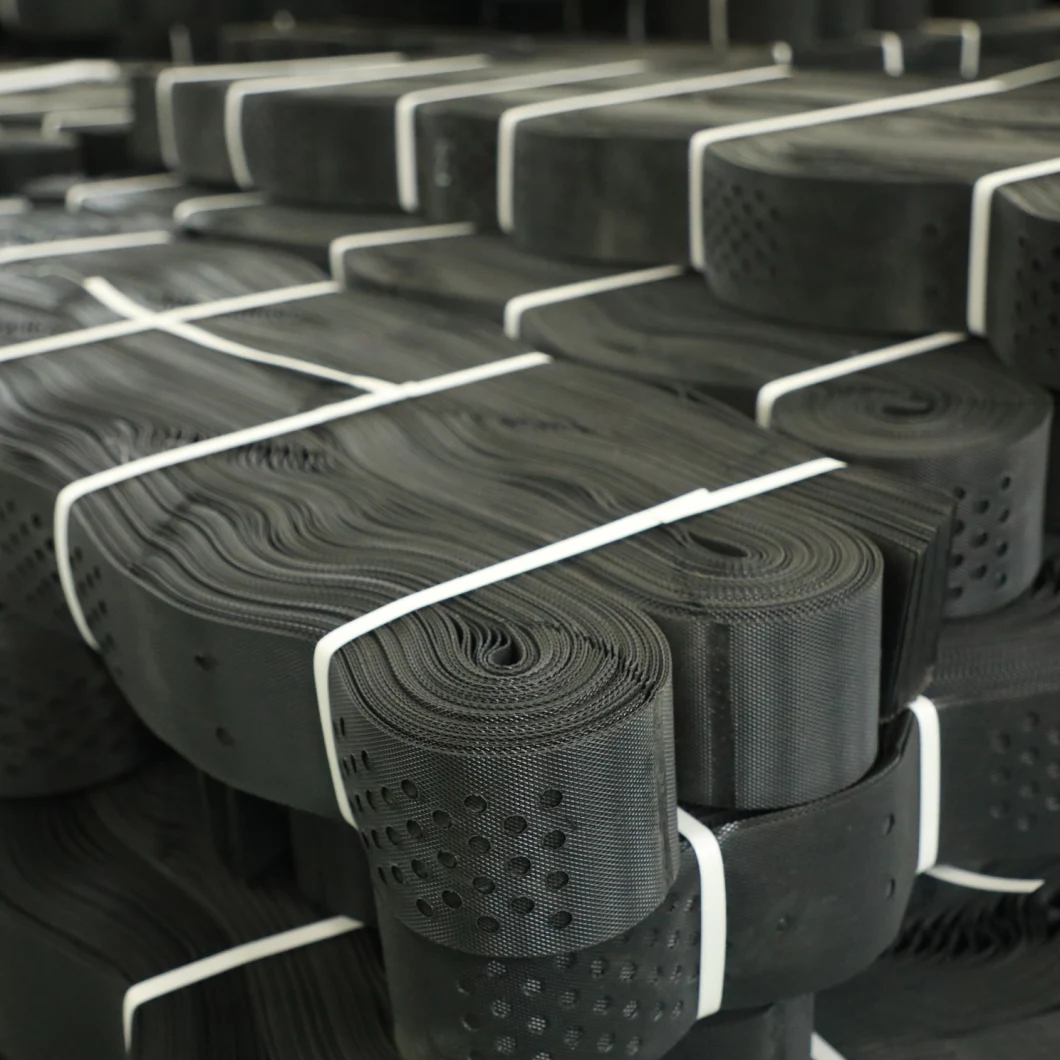

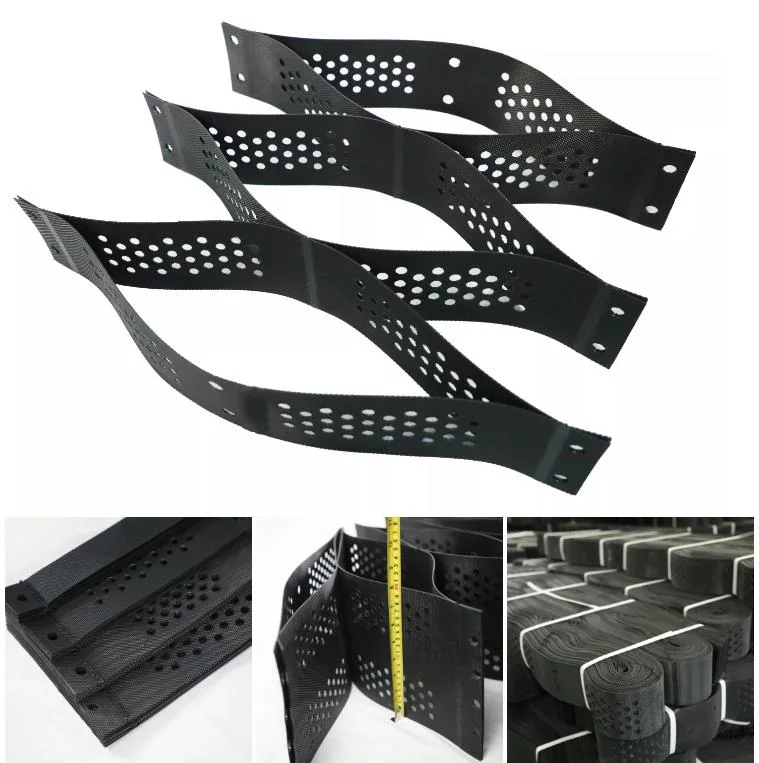

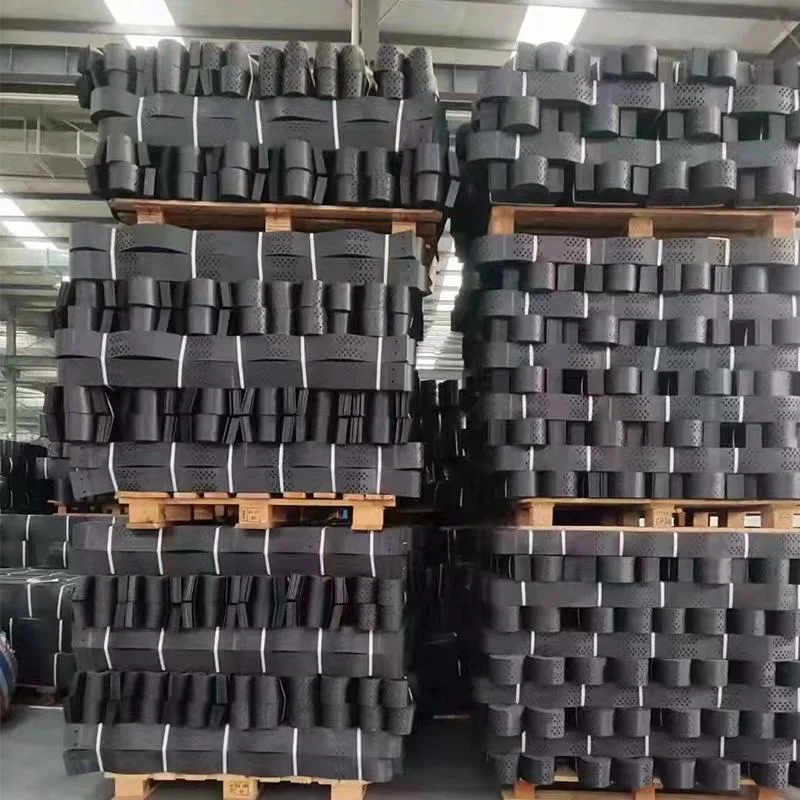

Detailed Photos

Anti-Corrosion Plastic Cellular Confinement Systems HDPE Geocell for Soil Reinforcement Road Hill Slope

HDPE plastic honeycomb hdpe geocell gravel grid Specifications:
1.Cell depth: 50mm , 100mm , 150mm , 200mm , 250mm
2. Welding space: 330mm~1600mm
3. Thickness: 1.0mm , 1.2mm , 1.5mm , 1.8mm
4. Appearance: smooth / textured

HDPE plastic honeycomb hdpe geocell gravel grid Features:
1) Light material , resistant to wear , stable in chemical properties , anti-aging , resistant to acids and alkalis, applicable to different soil and desert and other geological conditions .
2)High limit on lateral direction , anti-skidding , anti-deformation , effectively enhance the supporting ability and scattered load function of roadbed .
3)High carrying capacity and good dynamic performance and high erosion ability .
4)The geometry size can be changed to meet different needs of the project , such as height and welding distance .
5)Retractable and small loading volume , convenient joint , speed construction .
6)Local material can be used during construction , reduce the construction cost , easy to be transported after folding together.








Technical Parameters:
Material Properties Unit         Test Method
Cell Depth mm 75 100 150 200
Polymer Density g/cm3 0.935-0.965 ASTM D 1505
Environmental Stress Crack Resistance Hours >400 ASTM D 5397
Environmental Stress Crack Resistance Hours 6000 ASTM D 1693
Carbon Black Content % 1.5% - 2.0% ASTM D 1603
Nominal Sheet Thickness Before Texturing mm 1.27 -5%,+10% ASTM D 5199
Nominal Sheet Thickness After Texturing mm 1.52-5%,+10% ASTM D 5199
Strip Puncture Resistance N 450 ASTM D 4833
Seam Peel Strength N 1065 1420 2130 2840 EN ISO13426-1B
Seam Efficiency % 100 GRI-GS13
Nominal Expanded Cell Size (width x length) mm 320x287,475x508 etc
Nominal Expanded Panel Size (width x length) m 2.56x8.35, 4.5x5.0, 6.5x4.5, 6.1x2.44


Applications:
Plastic geocell grid gravel for road

1. Used for all kinds of road building , driveways , soil stabilization and embankment stabilization
2. Used to stabilize river embankments .
3. Used to prevent landslides .
4. Using Geocell construction can greatly reduce labor intensity and reduce the thickness of the roadbed , construction speed , good performance and greatly reduce the project cost .

Anti-Corrosion Plastic Cellular Confinement Systems HDPE Geocell for Soil Reinforcement Road Hill Slope



Retaining Wall
Cellular Confinement Systems provide steep vertical mechanically stabilized earth structures (either gravity or reinforced walls)
for steep faces, walls and irregular topography

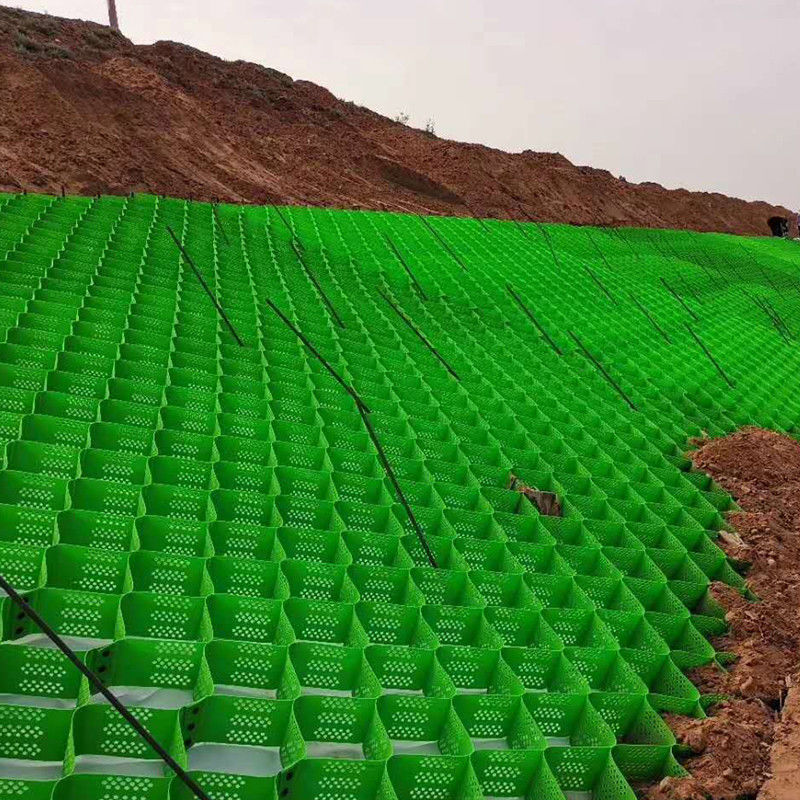

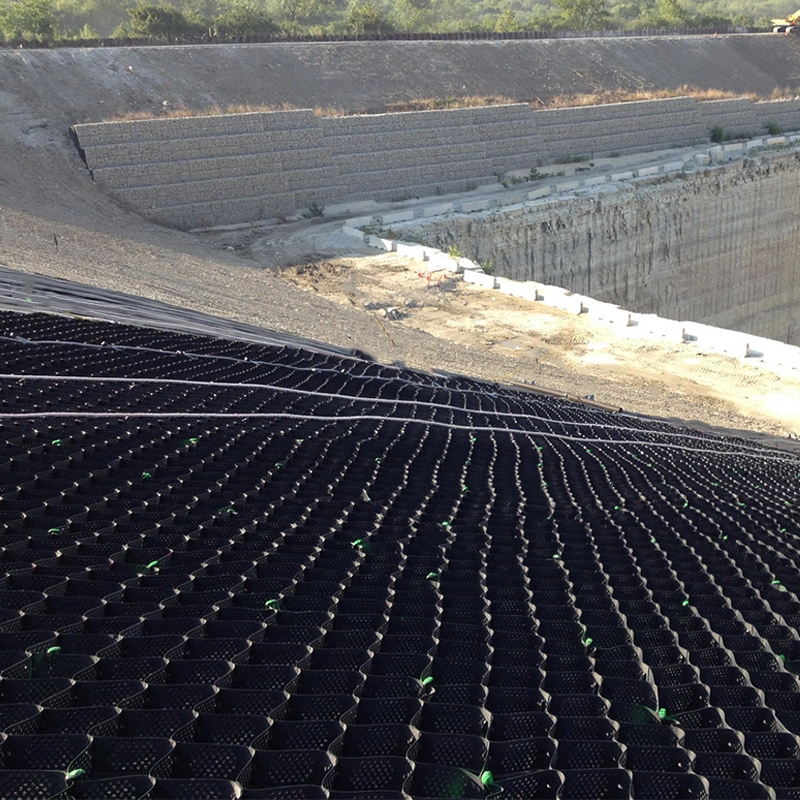

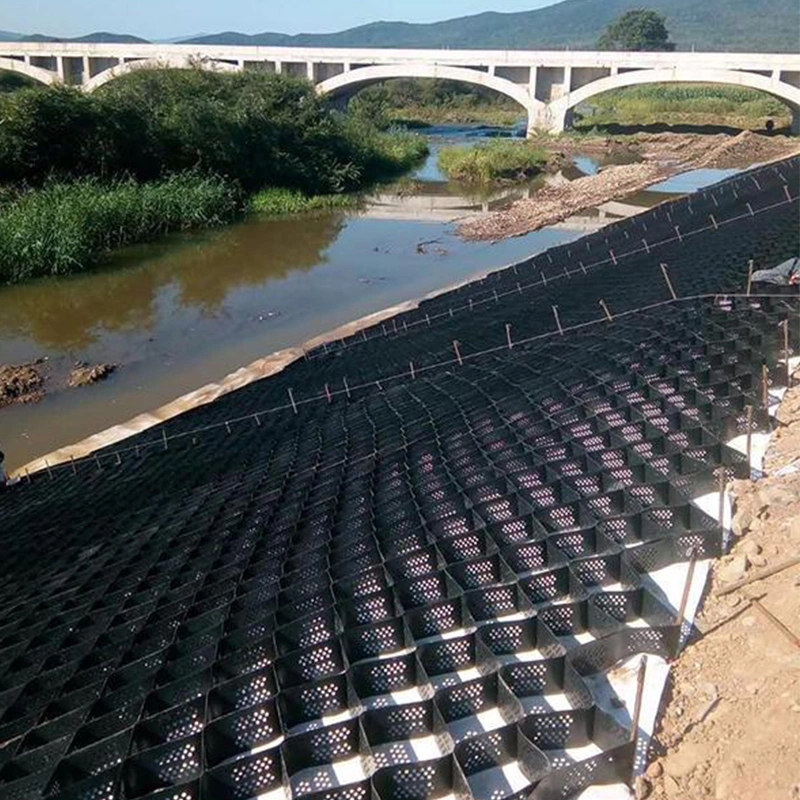

Slope Pretection
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Anti-Corrosion Plastic Cellular Confinement Systems HDPE Geocell for Soil Reinforcement Road Hill Slope
Anti-Corrosion Plastic Cellular Confinement Systems HDPE Geocell for Soil Reinforcement Road Hill Slope

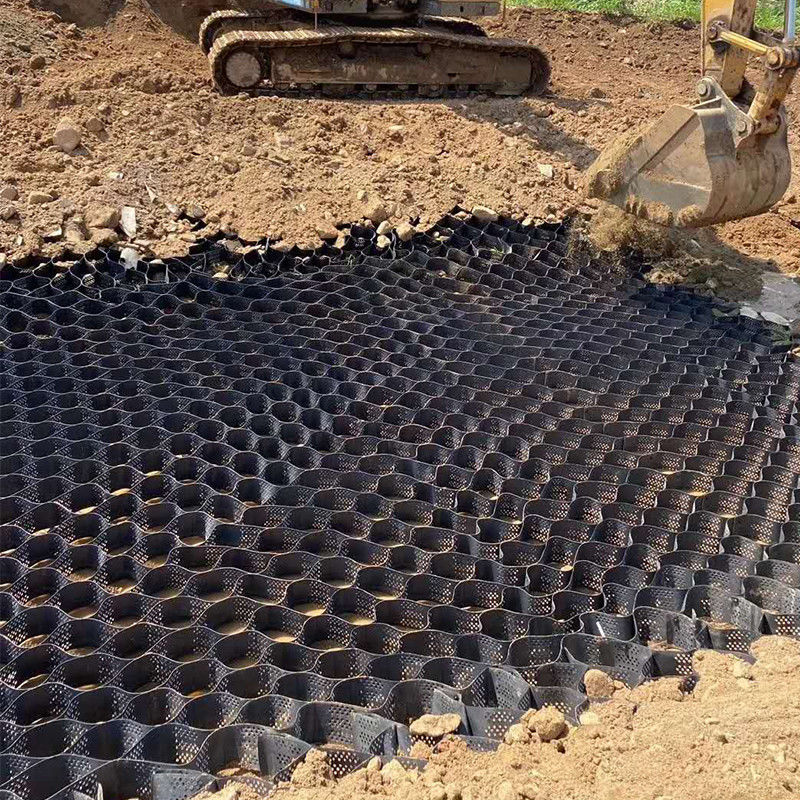

Gruound Stabilisation
Cellular Confinement Systems strengthen the aggregate infill, thereby simultaneously enabling the use of poorly graded inferior material for infill as well as reducing the structural support layer thickness.Typical stabilisation applications include reinforcement of base and subbase layers in flexible pavements, including: roads, railway substructure and ballast confinement;working platforms in intermodal ports; airport runways.

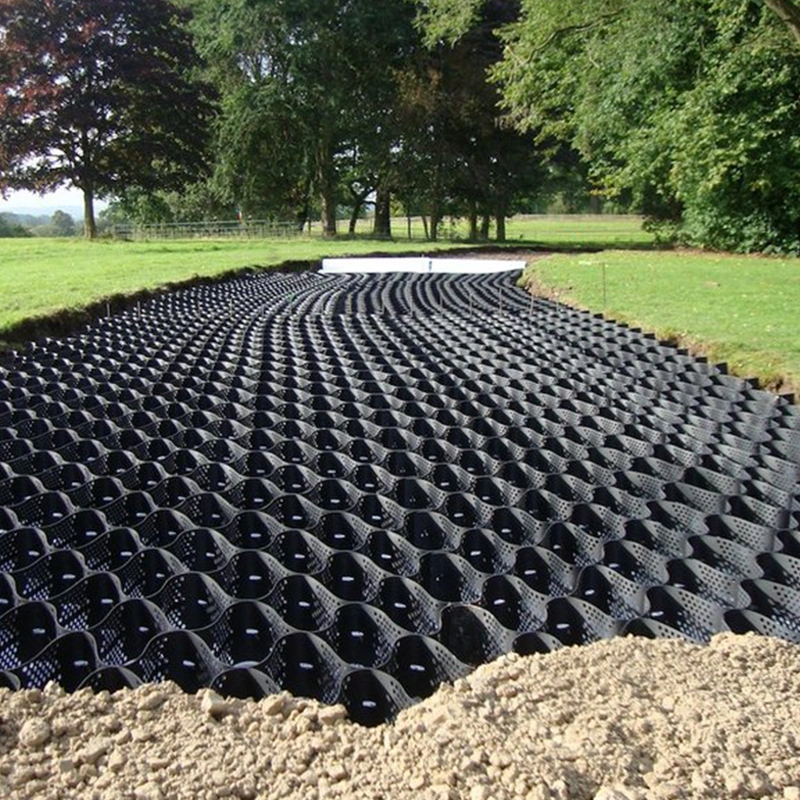

Load Support
Cellular Confinement Systems have been used to improve the performance of both paved and unpaved roads by reinforcing the soil in the subgrade-base interface or within the base course. The effective load distribution of geocell creates a strong,stiff 3D cellular mattress which can reduce vertical differential settlement into soft subgrades, improves shear strength, and enhances load-bearing capacity, while reducing the amount of aggregate material required to extend the service life of roads.
Anti-Corrosion Plastic Cellular Confinement Systems HDPE Geocell for Soil Reinforcement Road Hill Slope
Anti-Corrosion Plastic Cellular Confinement Systems HDPE Geocell for Soil Reinforcement Road Hill Slope
Channel Lining

Constructing GEOCELL drainage and diversion channels is a fast-to-deploy and economical means to create stormwater conveyance across tailings on mine sites. GEOCELL-confined aggregate channels can reduce rock size 10X, and make beneficial use of the mine's on-site aggregate resources. With concrete infill, GEOCELL channels offer flexible, hard-armor protection, stability and resistance to higher velocity and continuous flows.
Anti-Corrosion Plastic Cellular Confinement Systems HDPE Geocell for Soil Reinforcement Road Hill Slope
Anti-Corrosion Plastic Cellular Confinement Systems HDPE Geocell for Soil Reinforcement Road Hill Slope

What We Can Do For You

Geocell Cellular Erosion Control HDPE plastic honeycomb hdpe geocell gravel grid
1. We have our own factory. We can provide what you want in competitive price.
2. Our company provides before-sales, in-sales and after-sales services with heart and soul in engineering construction and products selection.
3. Our company is in strict accordance with national standards and related standards. Our company passed ISO9001
4.We have been exporting for 6 years. We can provide necessary certificates to make customs clearance easier for you. We know well about container. We can make advice for you to reduce freight without damaging goods.
5.We can provide Certificate of Origin. For Southeast Asia, FORM E and FORM A. For Chile, FORM F. For Africa, C O.

We are looking forward to your sincere cooperation. If you have any question, please feel free to contact us.


HDPE plastic honeycomb hdpe geocell gravel grid Company Information
zhonglu is a professional geosynthetic products manufacturing company , covers an area of 60,000 square meters . The main products are HDPE / LDPE Geomembrane , Plastic Grass Grids , Woven/nonwoven Geotextile , Drainage Board ,Composite Membrane and Textile , Plastic netting , 3D Planting Geomat , and other geosynthetic products .
zhonglu Company has altogether 20 production liners including HDPE/LDPE Geomembrane liners , Plastic Grass Grids liners , Nonwoven Geotextile liners , Woven Geotextile liners ,Drainage Board liners , Plastic Netting liners , and variety testing machines .

We are specialized in providing professional geosynthetics solutions for Road, Highway , Railway , Airport , Tunnel , Mine Supporting and Protecting , Hydro , Reinforced Steep Slopes , Reinforced Retaining Wall , Reinforced Embankments , Landfill , Containment , water conservancy facilities , soft foundation treatment and other related projects .
Our target is to supply professional products with the most reasonable prices to our customers around all the world , expect to build long term relationship with you .
