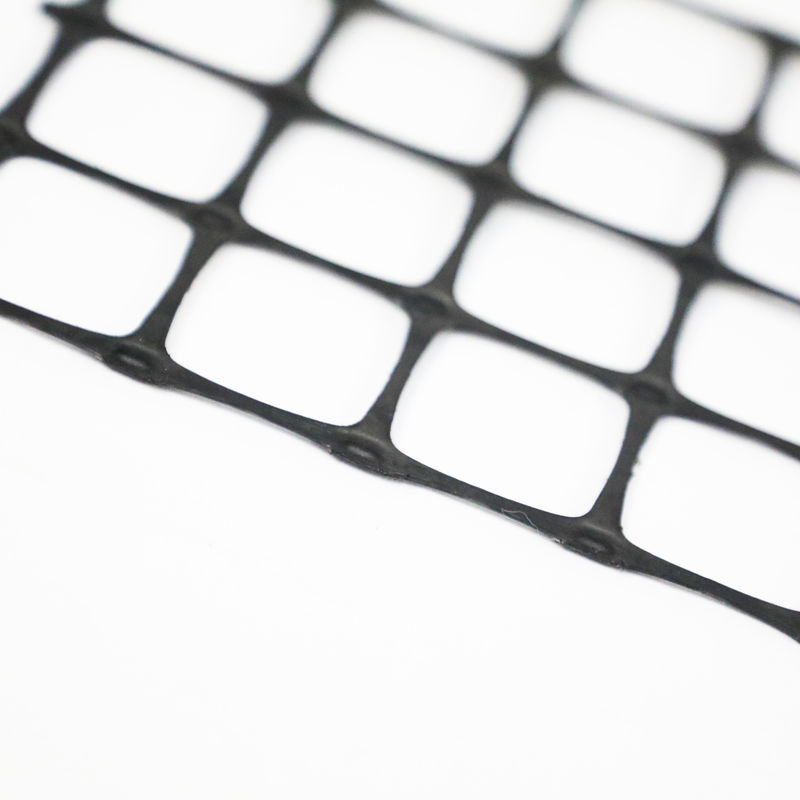

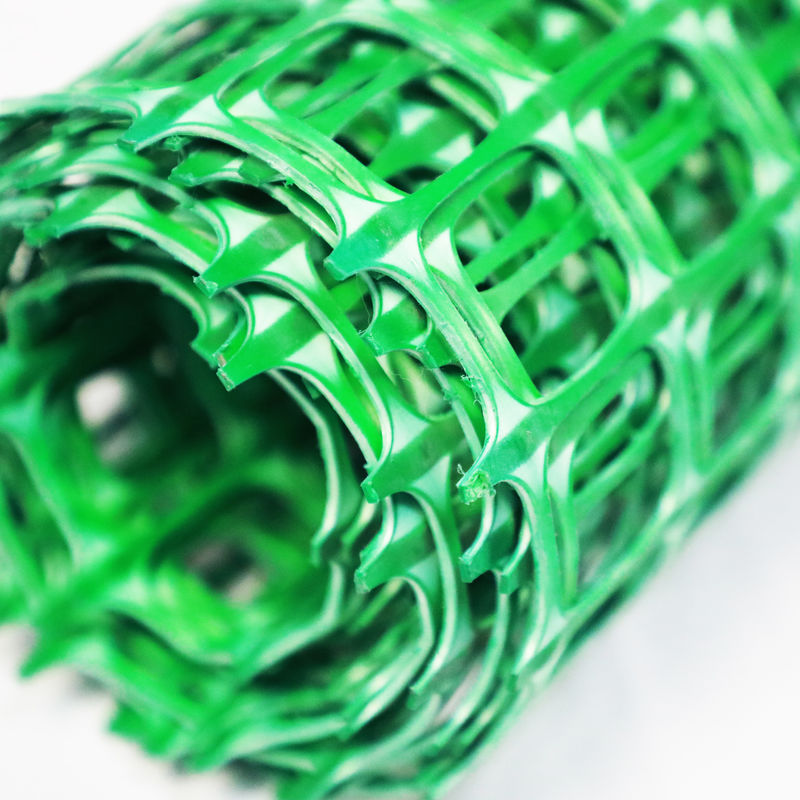

Biaxial Geogrid for Stabilized Gravel Surface Biaxial Geogrid for Subgrade for Reinforcement
Product Description
It is produced through the process of extruding, punching, heating, longitudinal stretching, and transverse stretching.
Performance: High tensile strength at both longitudinal and transverse direction
Benefits
Improving the bearing capacity of the foundation
Preventing cracking and subsiding
Convenient to construct, reducing cost and maintaining expense
Property
Improve roadbed bearing capacity, enlarge road lifetime
Prevent road collapse and crack
Prevent soil and water loss in the slope
Could replace steel-plastic geogrid in the coal mine
|
Biaxial Plastic Geogrid Technical Parameter (GB standard) |
||||||||
|
Item |
Specification |
|||||||
|
|
TGSG1515 |
TGSG2020 |
TGSG2525 |
TGSG3030 |
TGSG3535 |
TGSG4040 |
TGSG4545 |
TGSG5050 |
|
Vertical and horizontal tensile strength≥(KN/M) |
15 |
20 |
25 |
30 |
35 |
40 |
45 |
50 |
|
Tensile strength at 2% elongation≥(KN/M) |
5 |
7 |
9 |
10.5 |
12 |
14 |
16 |
17.5 |
|
Tensile strength at 5% elongation≥(KN/M) |
7 |
14 |
17 |
21 |
24 |
28 |
32 |
35 |
|
Tensile strength at 5% elongation≥(KN/M) |
15 |
|||||||
Features
1.With high tensile strength in longitudinal and transverse directions
2.The special structure provides a chain system to get more efficient bearing and spreading reinforce for the soft soil.
3.Adds strength and longevity to wall
4.Aids in prevention of early development of wall failure
5.Provides excellent stress transfer
