Place of Origin:
China
Brand Name:
zhongloo
Certification:
ISO,SGS
Model Number:
geomembrane
Contact Us
Video
Video
Product Introduction

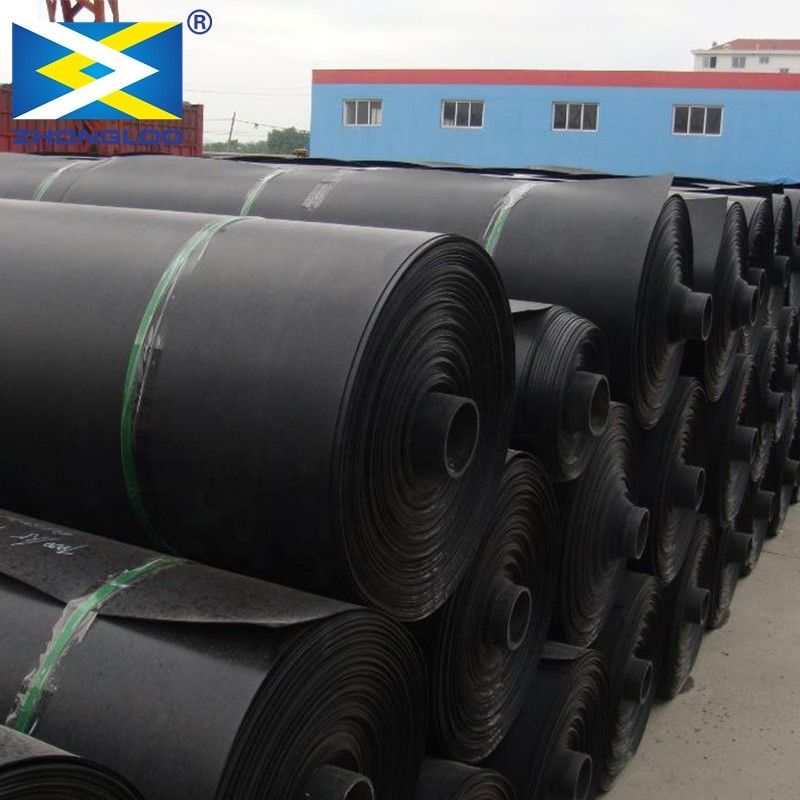

100% virgin raw material waterproof hdpe lldpe geomembrane for lagoon dam pond liner is made from polyethylene polymer materials by the film-blowing process.it is most widely used for fish pond, solid waste containment (such as landfill liners), water containment applications. Main Thickness:0.5mm, 0.75mm,1.0mm,1.5mm,2.0mm Main Width:5.8m,6.0m,7m,8m Main Length:50m 100m Main Color: black green blue white Surface: Smooth Festures:Excellent physical and mechanical performance, high tearing resistance, good deformation adaptability, high puncture resistance, high aging resistance, high UV resistance, anti-acid & alkali, excellent low & high temperature resistance, innocuous, long life span, perfect water proof performance, seepage and humidity resistance.
Geomembrane data
| Geomembrane | |||||||||
| item | Specification | ||||||||
| Type | M0.3 | M0.4 | M0.5 | M0.6 | M1.0 | M1.5 | M2.0 | M2.5 | M3.0 |
| Vertical Breaking strength(KN/M≥) | 3 | 5 | 6 | 8 | 12 | 17 | 18 | 19 | 20 |
| Vertical and horizontal tensile elongation at break(% ≥) | 100 | 300 | 500 | ||||||
| Vertical and horizontal right angle tearing strength(N/mm≥) | 10 | 15 | 20 | 30 | 40 | 80 | 100 | 120 | 150 |
| CBR Bursting strength(KN≥) | 1 | 1.5 | 2.5 | 3 | 4 | 5 | 6 | 7 | 8 |
1) Good physical and mechanic performance
2) High tearing resistance, strong deformation adaptability
3) Puncture-resisting, aging resisting, ultra-violet radiation, oil and salt, and corrosion resistance
4) Good adaptability to high and low temperature, non-toxicity, long service life
5) Good waterproof, drainage, anti-seepage and damp proof effects
6) Complete width and thickness specifications, low cost and easy installation.
Geomembrane installation
The geomembrane can not be dragged and pull to avoid hurting by sharp objects during carrying.
It should be extended from the bottom toward the top,can not tightly pull,it should keep 1.5% margins for local stretching. To view actual conditions,the laying sequence from top to bottom is adopted for slope.
Two adjacent geomembrane's joints in the machine direction should not be on a level line,should be staggered over 1m.The overlap should be over 20cm.
The joints in the machine direction should be over 1.5m apart from the foot of dam,turn,should be located at the plane.
The direction of extend geomembrane should be basically parallel with the line of maximum slope when laying the slope.
